BB1322NR: 132-174 MHz Mobile Base Coil NMO Mount Antenna-No Metalic Ground Plane Required
BB1322NR: 132-174 MHz Mobile Base Coil NMO Mount Antenna-No Metalic Ground Plane RequiredMore InfoDocumentsSpecifications Reviews

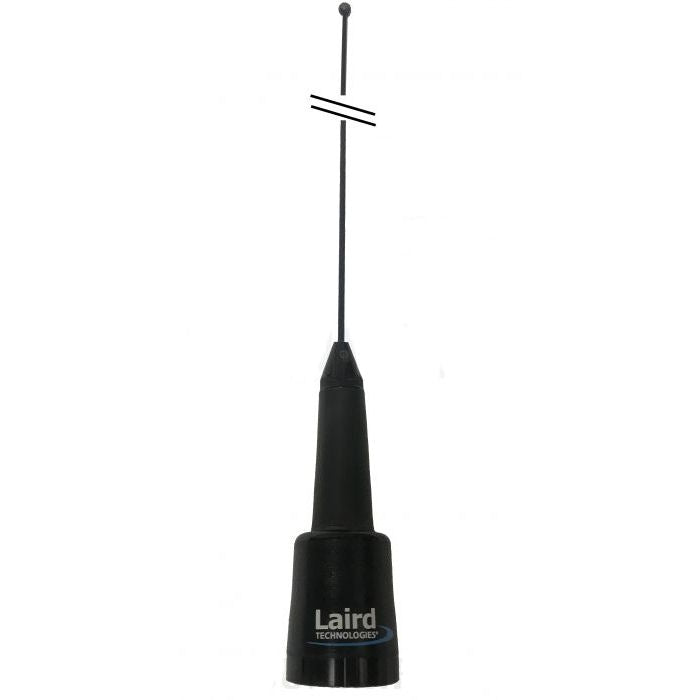

The Laird / Antenex BB1322NR is a 55 inch long, Black base coil, omnidirectional whip antenna for operation in the 132-174 MHz VHF band, with NMO base. No metal ground plane required.
This Antennas has Black Elastomer Spring.
Please note: This item has a minimum order qty of 8 pcs.
The Laird / Antenex BB1322NR is a 55 inch long, Black, base loaded mobile VHF whip antenna with NMO base and Rubber Boot. This antenna does NOT require a metal ground plane. It is omnidirectional and offers 2 dBi gain and accepts up to 100-200 watts max power and operates in the 132-174 MHz range.
Laird Technology’s ongoing commitment to refinement in mechanical and electrical design has resulted in the most technically advanced mobile load coil antennas on the market. Exclusive features such as stainless steel whips, housings constructed with ABS material injected molded around a solid brass insert, and gold plated push pin contacts make Laird Technologies the obvious choice for quality and long lasting value for demanding mobile radio communications.
- Frequency Range: 132-174 MHz
- Gain: 2 dBi
- Length: 21 inches
- 100% tested on a network analyzer
- FIVE YEAR FACTORY WARRANTY
|Manufacturer Part Number||BB1322NR|
|Antenna Category||VHF (132-220 MHz)|
|Working Frequency||132-174 MHz|
|Antenna Style||Base Coil Antennas|
|SISO or MIMO||SISO|
|Directional or Omni||Omnidirectional|
|VSWR: < X: 1||2.0:1|
|Operating Temp (celsius)||(-45 to 85)|
|Connector Type||Connector - Bottom|
|OK for Outdoor Use||Yes|
|Ground Plane Required||No|
