ICEFINWDMN Direct Mount Antenna - Clear - 2400-2500/4900-6000 MHz

  • $40.69
    Unit price per

ICEFINWDMN


0 in stock. Subject to factory lead time
Volume Price Breaks
Quantity: Unit Price:
10 $37.93
25 $35.52
100 $32.91
250 $31.08
500 $29.45
Factory lead time:  Ships in 6-8 Weeks

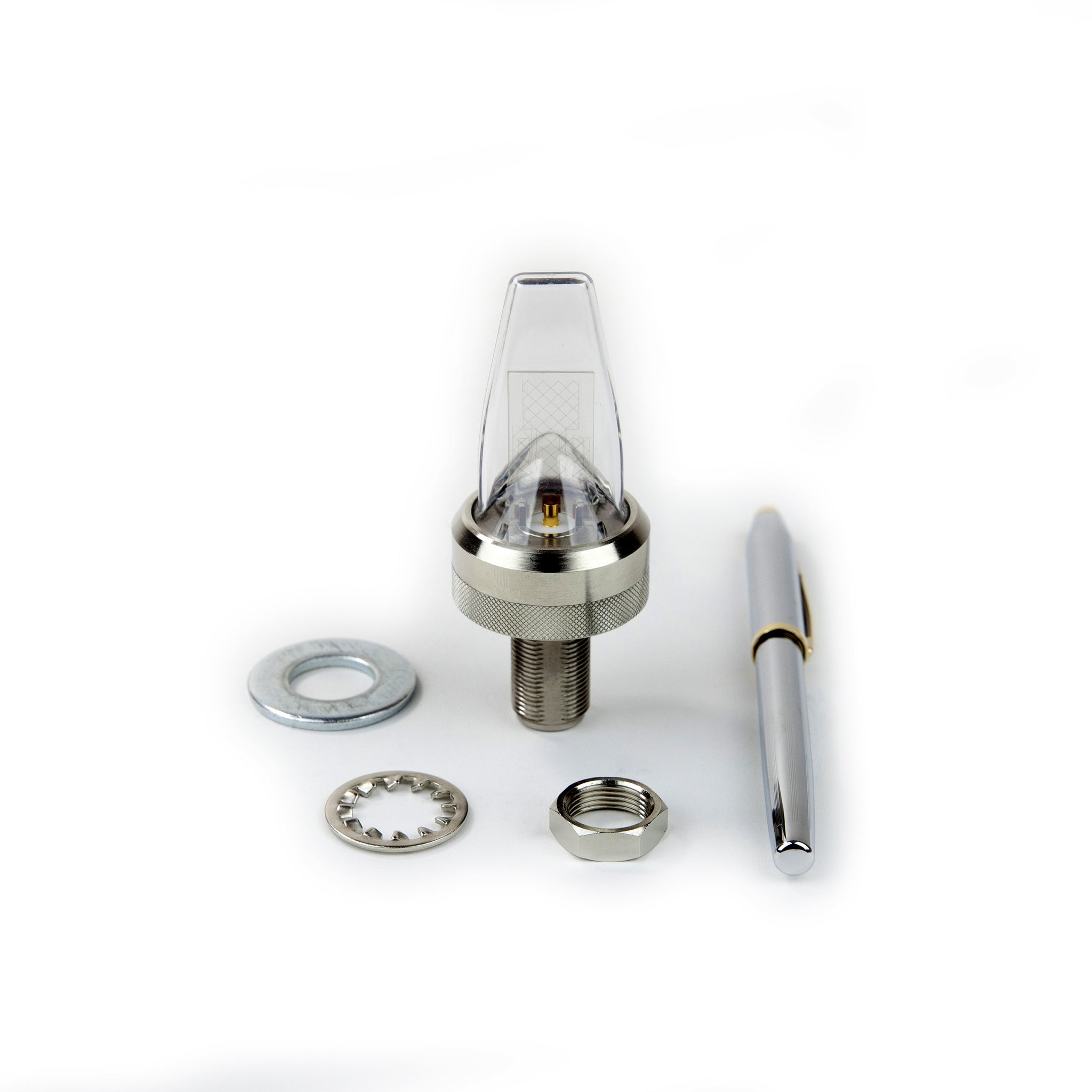

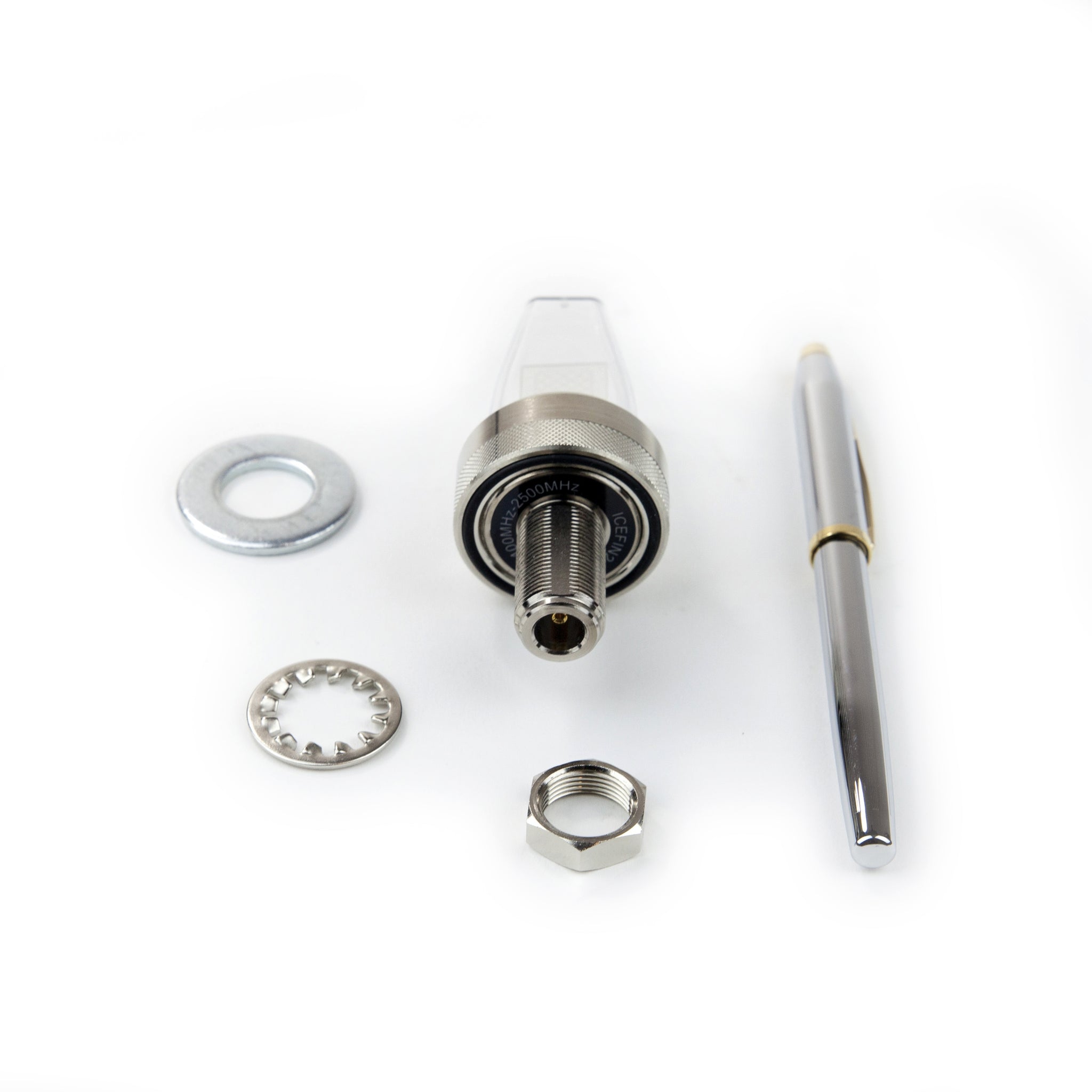

ICEFINWDMN Direct Mount Antenna - Clear - 2400-2500/4900-6000 MHz

More InfoDocumentsSpecifications Reviews

The Pulse-Larsen ICEFINWDMN (Shadow Low Profile Transit) antenna was designed for the public safety and utility/M2M markets operating over the WLAN / WiFi frequency range for 802.11 applications.


More Information

The Pulse-Larsen ICEFINWDMN (Shadow Low Profile Transit) antenna was designed for the public safety and utility/M2M markets operating over the WLAN / WiFi frequency range for 802.11 applications.

These rugged, yet aesthetically pleasing antennas provide a smaller, slimmer option at value oriented pricing without sacrificing mechanical or electrical performance. The IceFin family of antennas was created specifically to serve emerging applications such as 700 MHz Public Safety, LTE, Smart Grid and High-Speed WLAN.

Features

  • Direct mount - N Female
  • 2400-2500/4900-6000 MHz
  • Shorter, slimmer profile without sacrificing mechanical performance
  • IP-67 rating when installed to compliant surface
  • RoHS Compliant Product

Applications

  • Vehicular: Public Safety, Utility, Fleet
  • 802.11a,b,g,n & .ac Applications (siso & mimo)
  • M2M and Smart Metering

Documents


Specifications

SKU ICEFINWDMN
Manufacturer Part Number ICEFINWDMN
Manufacturer Pulse
Product Condition New
Antenna Style Shadow Low-Profile Transit
Antenna Style Shadow Low-Profile Transit
Antenna Category WiFi (2.4 & 5.0 GHz)
Polarity Vertical
Bands Multi
SISO or MIMO SISO
Directional or Omni Omnidirectional
Frequency 1 2400-2500 MHz
Gain 1 5.2 dBi
Frequency 2 4900-6000 MHz
Gain 2 6.2 dBi
Impedance 50 ohm
Max Input Power (W) 20 W
VSWR: < X: 1 2:01
Height/Length (inches) 2.5
Height/Length (mm) 63.5
Width (inches) 1.5
Width (mm) 38
Weight (lbs) 0.28
Weight (grams) 130
Material PC+ABS Plastic
Operating Temp (celsius) -40 to +85 C
Mount Style Direct: N-Female
Color Clear
Connector Type Connector - Bottom
Connector 1 N-Female
IP Rating IP67
OK for Outdoor Use Yes
Vehicular Yes
Ground Plane Required No
