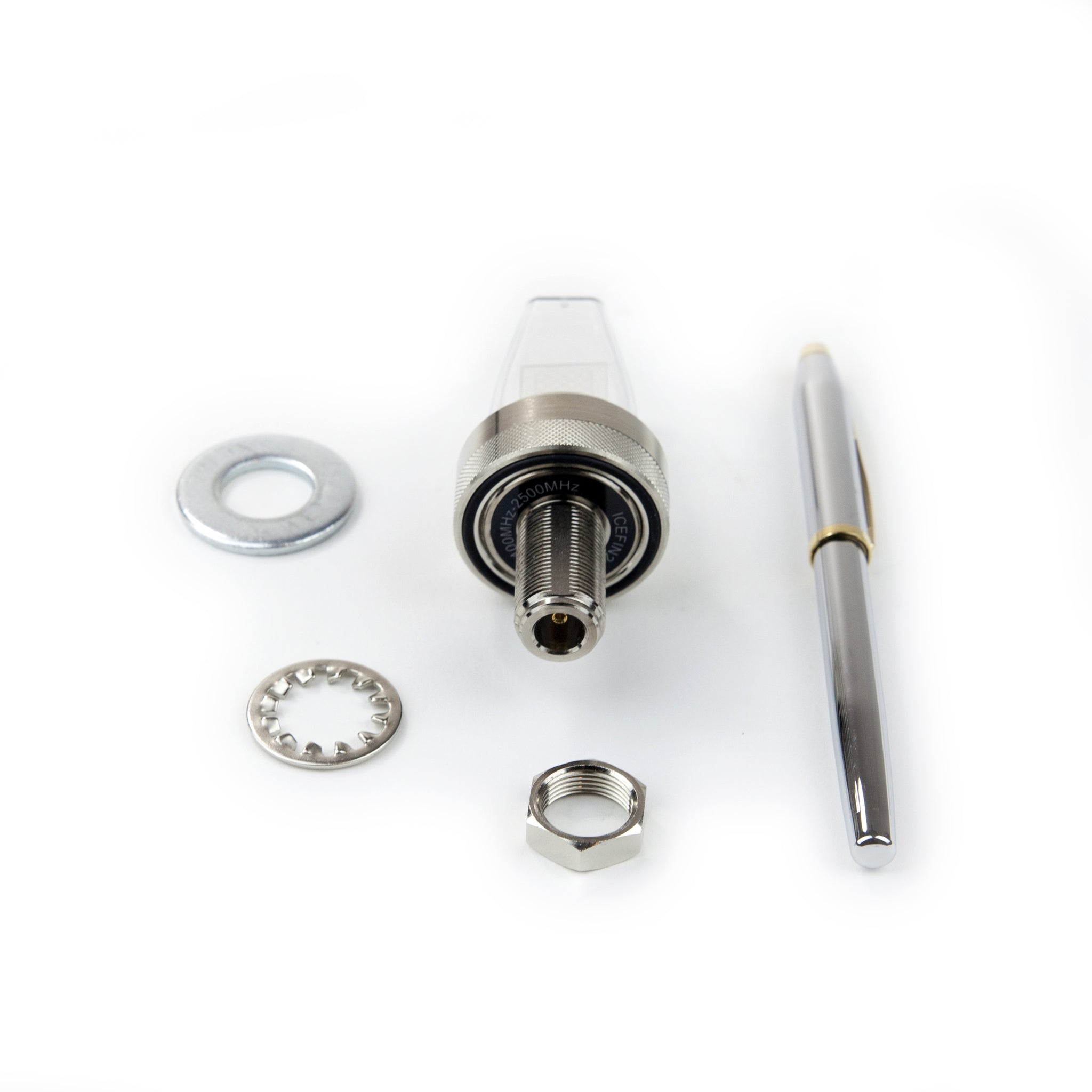

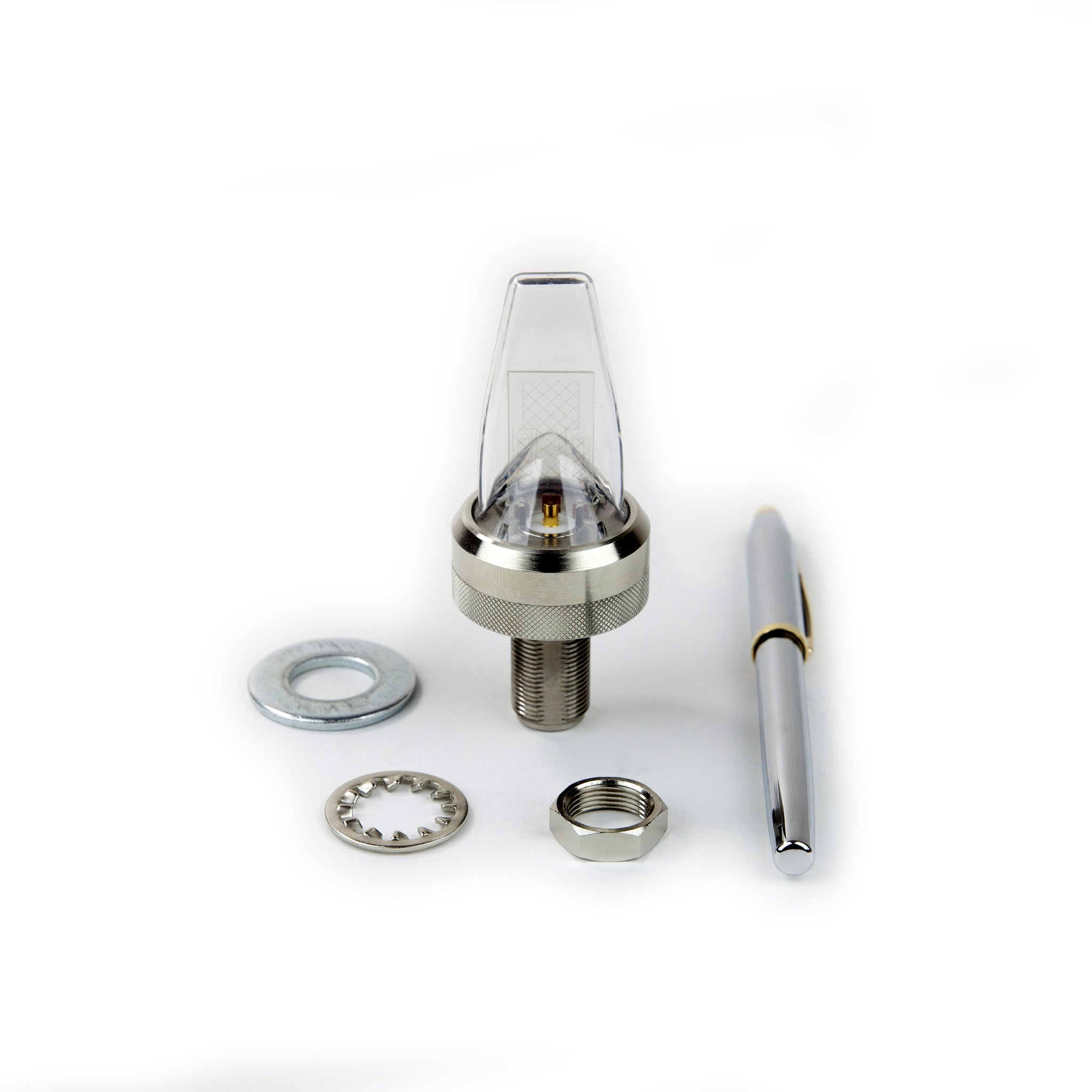

ICEFIN806DMN: Direct Mount Antenna - Clear - 806-960 MHz
ICEFIN806DMN
ICEFIN806DMN: Direct Mount Antenna - Clear - 806-960 MHz
More InfoDocumentsSpecifications ReviewsThe Pulse-Larsen ICEFIN806DMN (Shadow Low Profile Transit) antenna was designed for the public safety and utility/M2M markets operating over the WLAN / WiFi frequency range for 802.11 applications.
More Information
The Pulse-Larsen ICEFIN806DMN (Shadow Low Profile Transit) antenna was designed for the public safety and utility/M2M markets operating over the WLAN / WiFi frequency range for 802.11 applications.
These rugged, yet aesthetically pleasing antennas provide a smaller, slimmer option at value oriented pricing without sacrificing mechanical or electrical performance. The IceFin family of antennas was created specifically to serve emerging applications such as 700 MHz Public Safety, LTE, Smart Grid and High-Speed WLAN.
Features
- Direct mount - N Female
- 806-960 MHz
- Shorter, slimmer profile without sacrificing mechanical performance
- IP-67 rating when installed to compliant surface
- RoHS Compliant Product
Applications
- Vehicular: Public Safety, Utility, Fleet
- 802.11a,b,g,n & .ac Applications (siso & mimo)
- M2M and Smart Metering
Documents
Specifications
SKU | ICEFIN806DMN |
---|---|
Manufacturer Part Number | ICEFIN806DMN |
Manufacturer | Pulse |
Product Condition | New |
Antenna Style | Shadow Low-Profile Transit |
Antenna Style | Shadow Low-Profile Transit |
Antenna Category | 700/800 MHz |
Polarity | Vertical |
Bands | Single |
SISO or MIMO | SISO |
Directional or Omni | Omnidirectional |
Frequency 1 | 806-960 MHz |
Gain 1 | 3.7 dBi |
Impedance | 50 ohm |
Max Input Power (W) | 10 W |
VSWR: < X: 1 | 2:01 |
Height/Length (inches) | 2.5 |
Height/Length (mm) | 63.5 |
Width (inches) | 1.5 |
Width (mm) | 38 |
Weight (lbs) | 0.28 |
Weight (grams) | 130 |
Material | PC+ABS Plastic |
Operating Temp (celsius) | -40 to +85 C |
Mount Style | Direct: N-Female |
Color | Clear |
Connector Type | Connector - Bottom |
Connector 1 | N-Female |
IP Rating | IP67 |
OK for Outdoor Use | Yes |
Vehicular | Yes |
Ground Plane Required | No |
