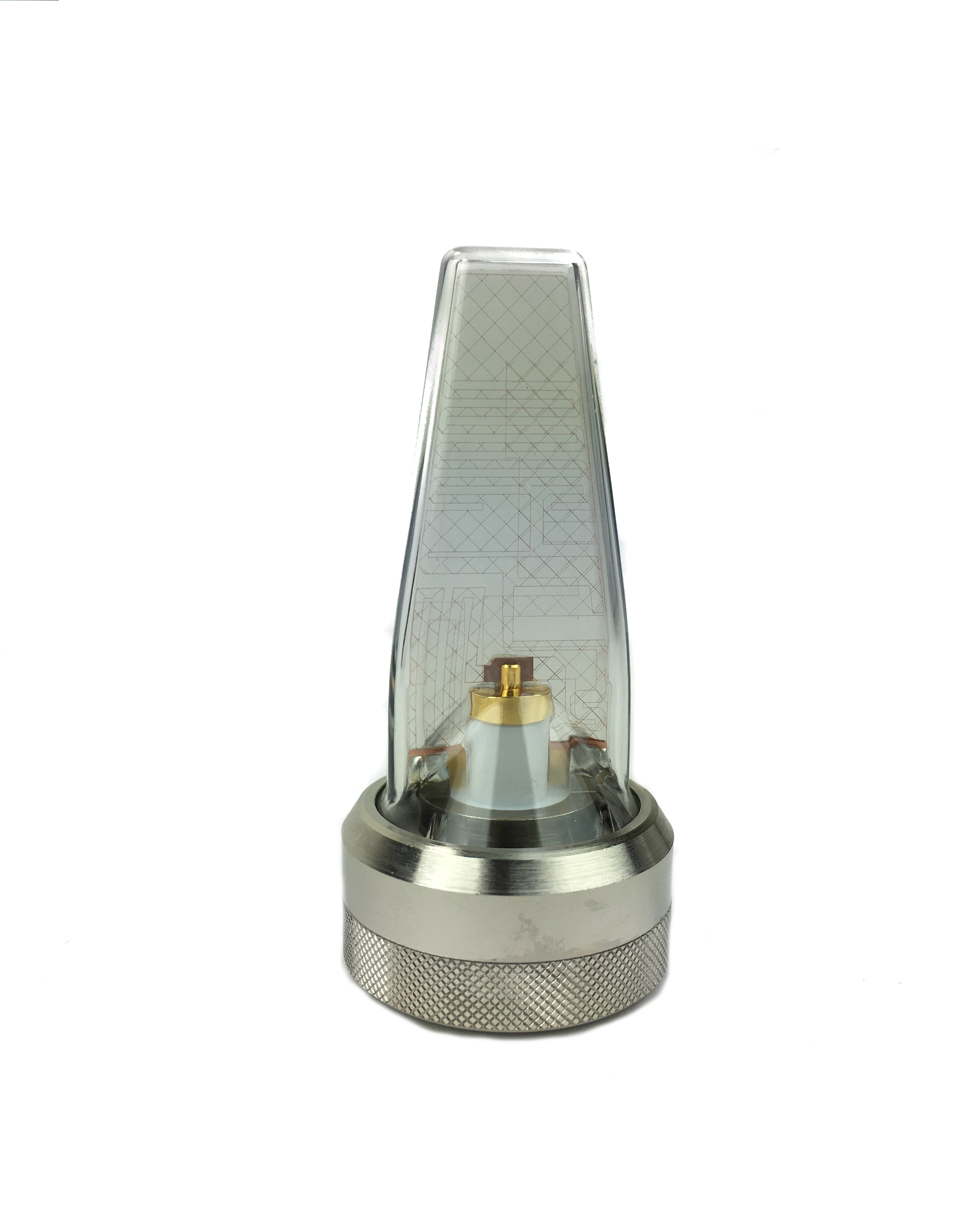

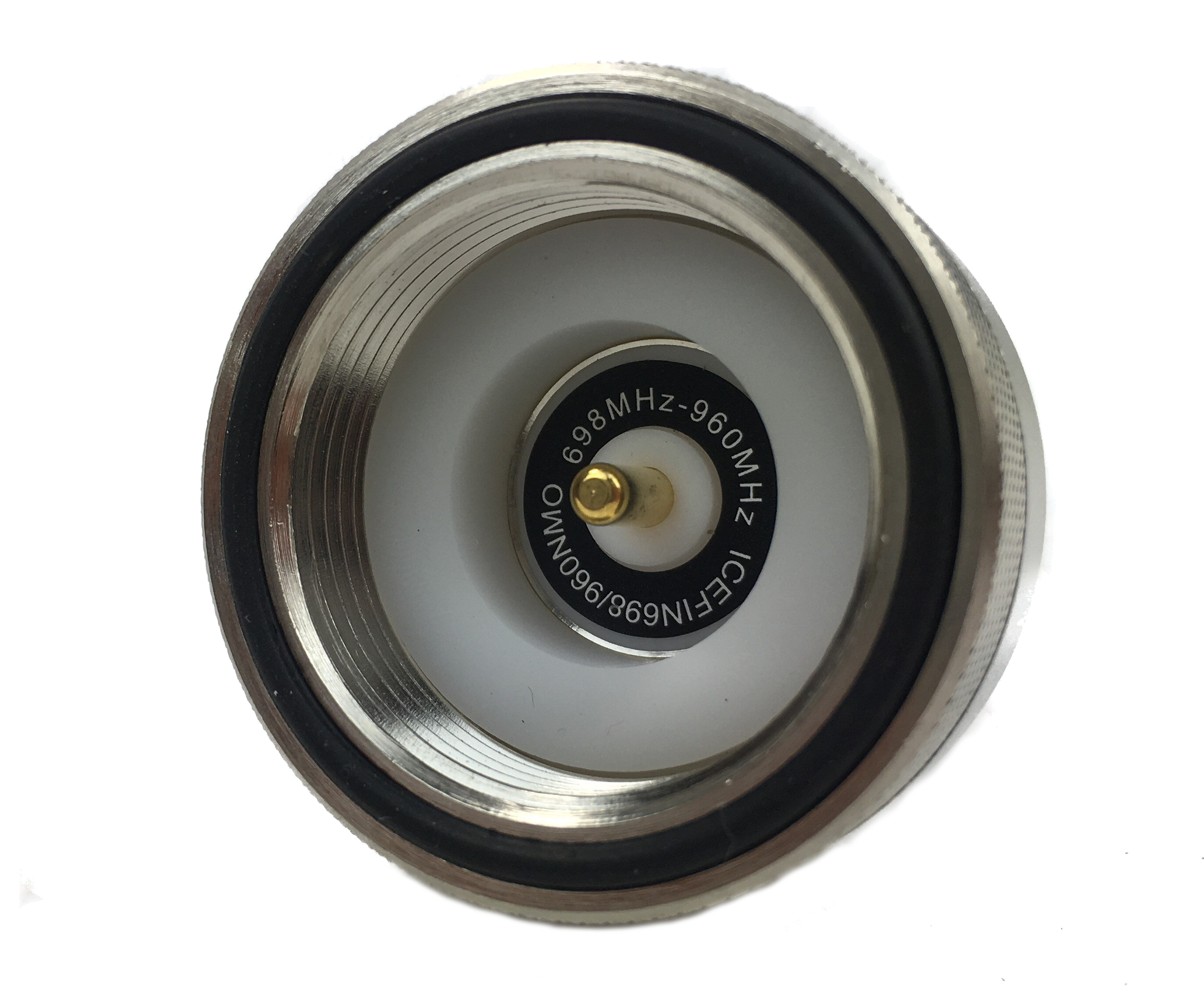

ICEFIN698/960NMO NMO Mount Antenna - Clear - 698-869 MHz

  • $32.24
    Unit price per

ICEFIN698/960NMO


0 in stock. Subject to factory lead time
Volume Price Breaks
Quantity: Unit Price:
10 $29.89
25 $27.40
100 $25.69
250 $24.18
500 $22.52
Factory lead time:  Ships in 6-8 Weeks

ICEFIN698/960NMO NMO Mount Antenna - Clear - 698-869 MHz

More InfoDocumentsSpecifications Reviews

The Pulse-Larsen ICEFIN698/960NMO (Shadow Low Profile Transit) antenna was designed for the public safety and utility/M2M markets operating over the WLAN / WiFi frequency range for 802.11 applications.

*This Antenna Requires a NMO Mount. Please click here to find all Thru-Hole NMO mounts or Magnetic NMO Mounts we carry.



More Information

The Pulse-Larsen ICEFIN698/960NMO (Shadow Low Profile Transit) antenna was designed for the public safety and utility/M2M markets operating over the WLAN / WiFi frequency range for 802.11 applications.

These rugged, yet aesthetically pleasing antennas provide a smaller, slimmer option at value oriented pricing without sacrificing mechanical or electrical performance. The IceFin family of antennas was created specifically to serve emerging applications such as 700 MHz Public Safety, LTE, Smart Grid and High-Speed WLAN.

Features

  • NMO Mount
  • 698-869 MHz
  • Shorter, slimmer profile without sacrificing mechanical performance
  • IP-67 rating when installed to compliant surface
  • RoHS Compliant Product

Applications

  • Vehicular: Public Safety, Utility, Fleet
  • 802.11a,b,g,n & .ac Applications (siso & mimo)
  • M2M and Smart Metering

Documents


Specifications

SKU ICEFIN698960NMO
Manufacturer Part Number ICEFIN698/960NMO
Manufacturer Pulse
Product Condition New
Antenna Style Shadow Low-Profile Transit
Antenna Style Shadow Low-Profile Transit
Antenna Category Multi-Band (Cellular, WiFi, and/or GPS)
Polarity Vertical
Bands Single
SISO or MIMO SISO
Directional or Omni Omnidirectional
Frequency 1 698-869 MHz
Gain 1 3 dBi
Impedance 50 ohm
Max Input Power (W) 5 W
VSWR: < X: 1 2:01
Height/Length (inches) 2.5
Height/Length (mm) 63.5
Width (inches) 1.5
Width (mm) 38
Weight (lbs) 0.28
Weight (grams) 130
Material PC+ABS Plastic
Operating Temp (celsius) -40 to +85 C
Mount Style NMO
Color Clear
Connector Type Connector - Bottom
IP Rating IP67
OK for Outdoor Use Yes
Vehicular Yes
Ground Plane Required No
