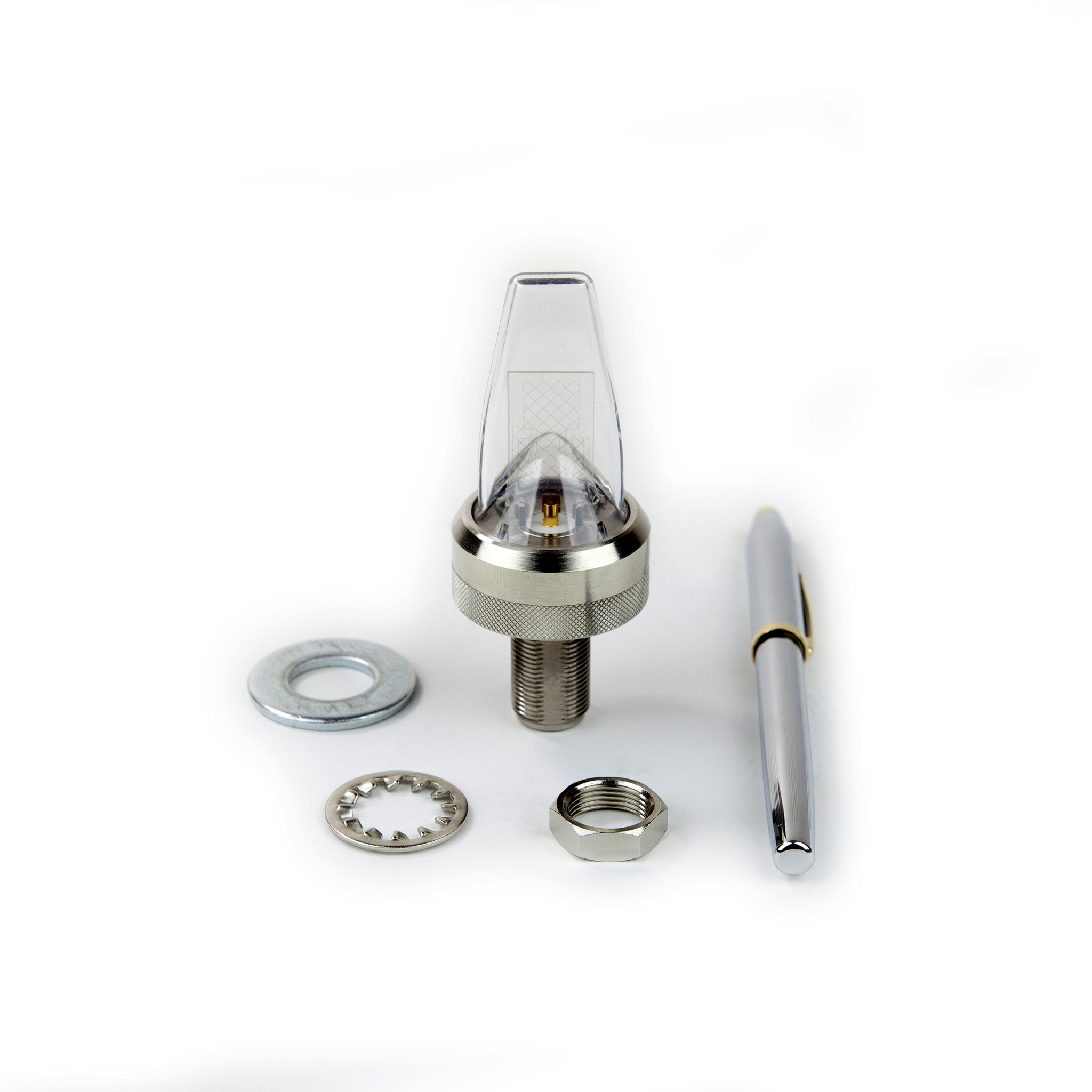

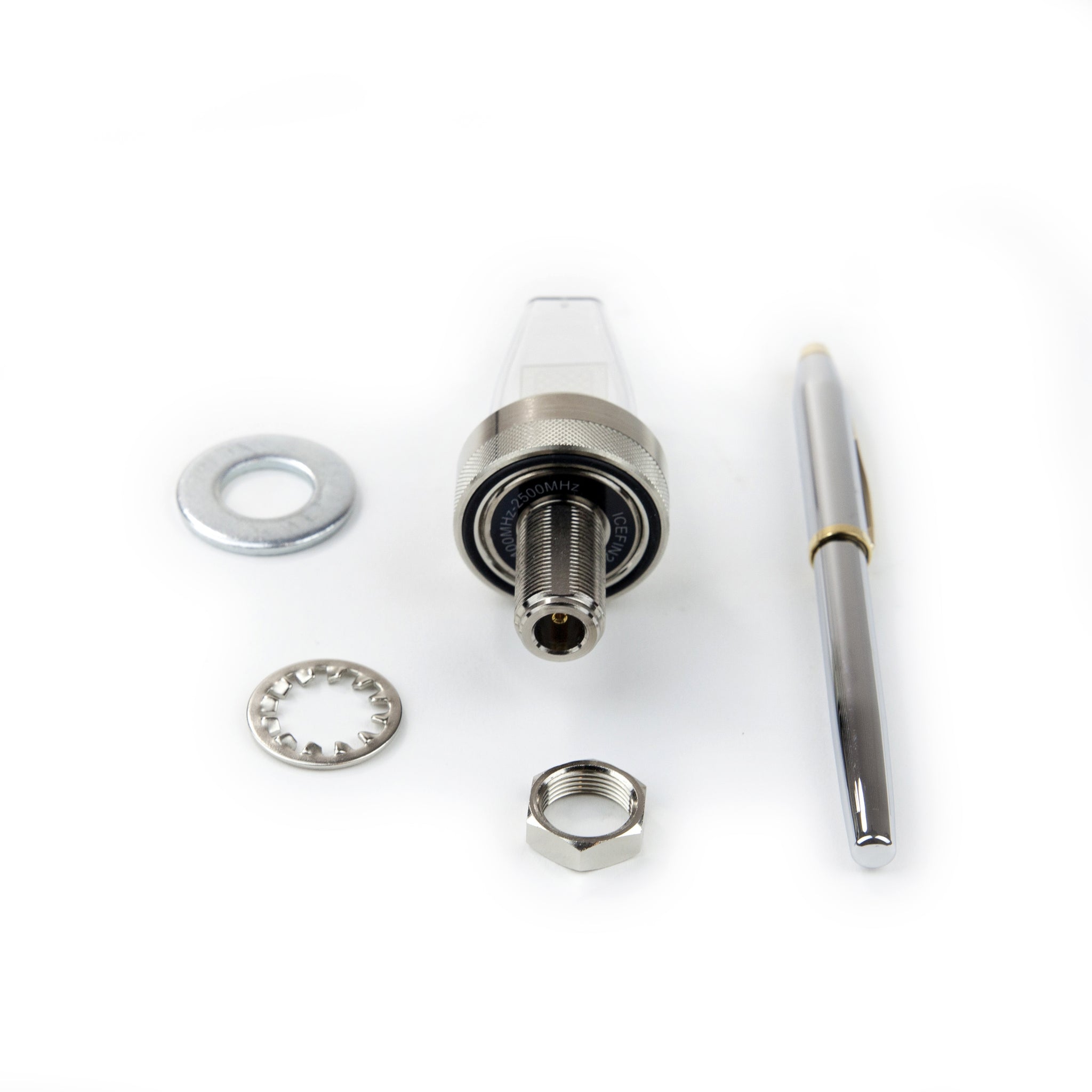

ICEFIN698/869DMN: Direct Mount Antenna - Clear - 698-869 MHz

  • $47.59
    Unit price per

ICEFIN698/869DMN


0 in stock. Subject to factory lead time
Volume Price Breaks
Quantity: Unit Price:
10 $44.36
25 $41.54
100 $38.49
250 $36.35
500 $34.45
Lead time:  Ships in 14-16 Weeks

Shipping calculated at checkout.

ICEFIN698/869DMN: Direct Mount Antenna - Clear - 698-869 MHz

More InfoDocumentsSpecifications Reviews

The Pulse-Larsen ICEFIN698/869DMN (Shadow Low Profile Transit) antenna was designed for the public safety and utility/M2M markets operating over the WLAN / WiFi frequency range for 802.11 applications.


More Information

The Pulse-Larsen ICEFIN698/869DMN (Shadow Low Profile Transit) antenna was designed for the public safety and utility/M2M markets operating over the WLAN / WiFi frequency range for 802.11 applications.

These rugged, yet aesthetically pleasing antennas provide a smaller, slimmer option at value oriented pricing without sacrificing mechanical or electrical performance. The IceFin family of antennas was created specifically to serve emerging applications such as 700 MHz Public Safety, LTE, Smart Grid and High-Speed WLAN.

Features

  • Direct mount - N Female
  • 698-869 MHz
  • Shorter, slimmer profile without sacrificing mechanical performance
  • IP-67 rating when installed to compliant surface
  • RoHS Compliant Product

Applications

  • Vehicular: Public Safety, Utility, Fleet
  • 802.11a,b,g,n & .ac Applications (siso & mimo)
  • M2M and Smart Metering

Documents


Specifications

SKU ICEFIN698869DMN
Manufacturer Part Number ICEFIN698/869DMN
Manufacturer Pulse
Antenna Category Multi-Band (Cellular, WiFi, and/or GPS)
Working Frequency 698-869 MHz
Gain 2.6 dBi
Antenna Style Low Profile Antenna
Polarity Vertical
Bands Single
SISO or MIMO SISO
Directional or Omni Omnidirectional
Impedance 50 ohm
Max Input Power (W) 5 W
VSWR: < X: 1 2:01
Height/Length (inches) 2.5
Height/Length (mm) 63.5
Width (inches) 1.5
Width (mm) 38
Weight (lbs) 0.28
Weight (grams) 130
Material PC+ABS Plastic
Operating Temp (celsius) -40 to +85 C
Mount Style Direct: N-Female
Color Clear
Connector Type Connector - Bottom
Connector 1 N-Female
IP Rating IP67
Vehicular Yes
Product Condition New
