i-Pro ICV4000 6-in-1 Symetrical Fin Antenna for VPU4000: IPS-ICV4-ANT2-BK
L000120-01
Shipping calculated at checkout.
i-Pro ICV4000 6-in-1 Symetrical Fin Antenna for VPU4000: IPS-ICV4-ANT2-BK

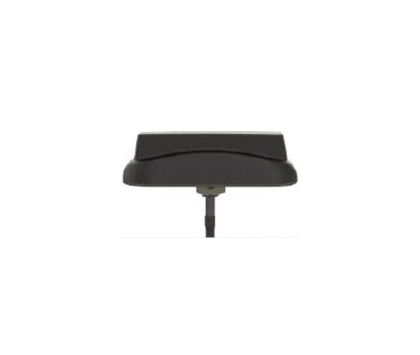

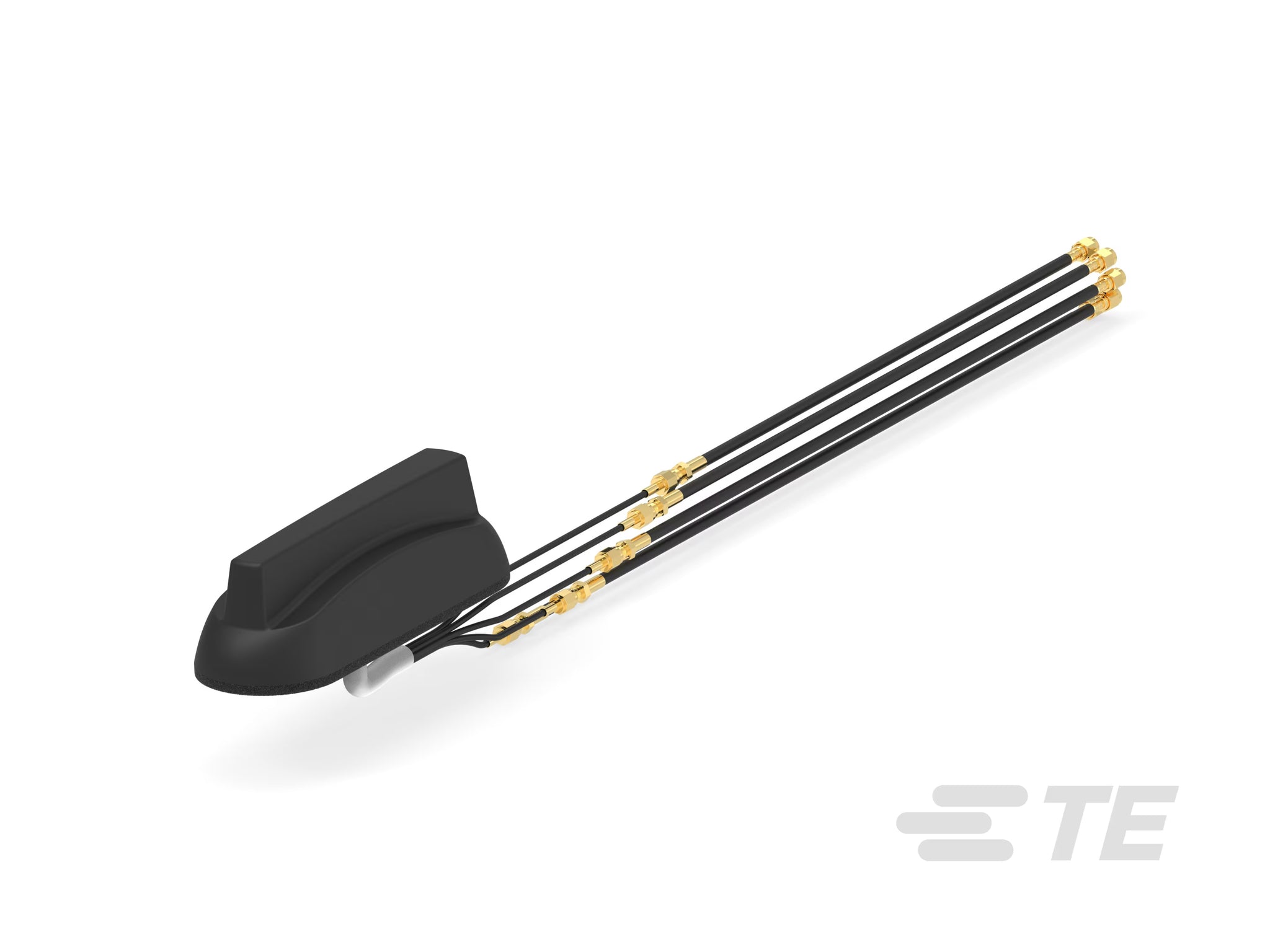

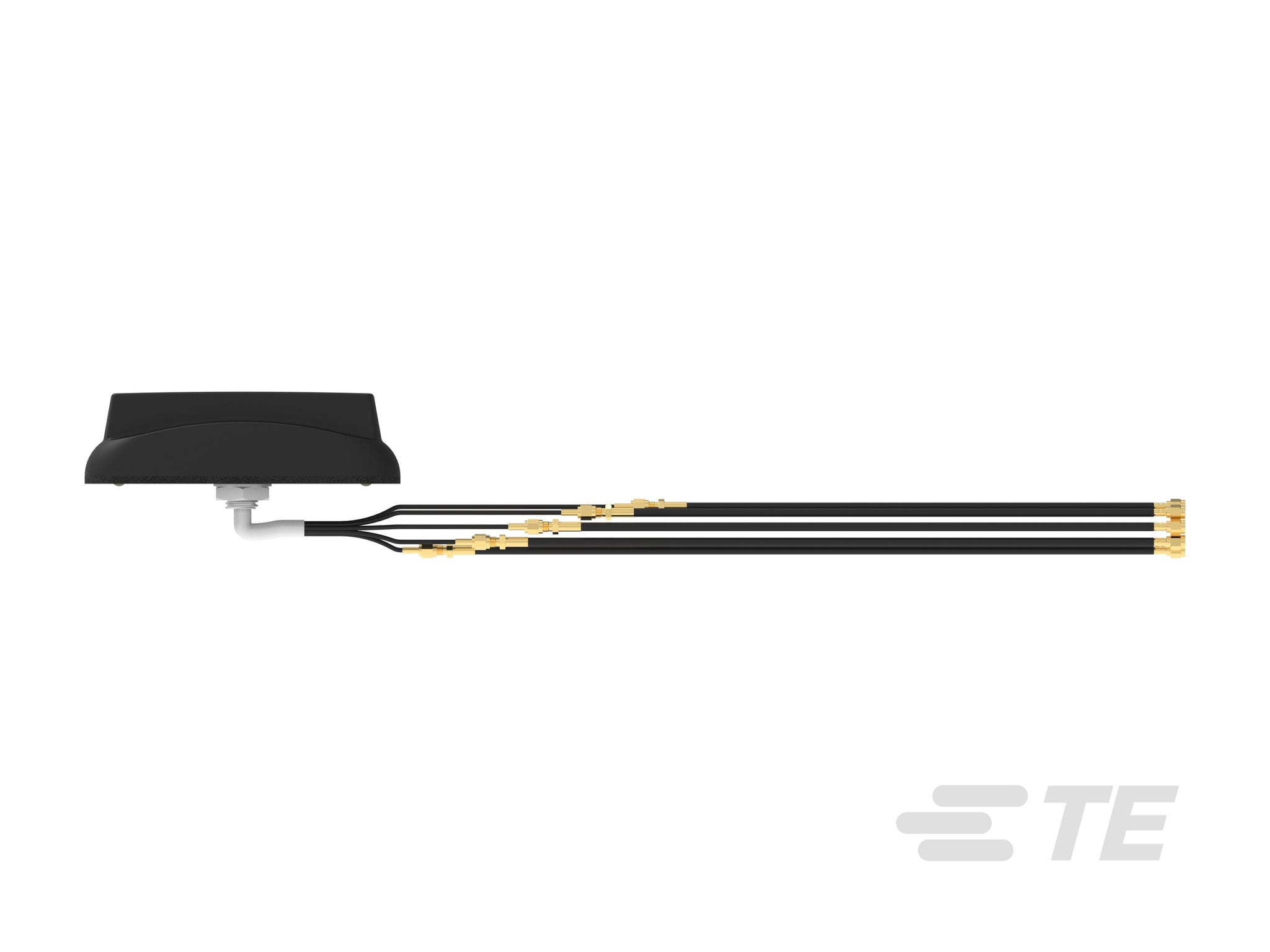

More InfoDocumentsSpecifications ReviewsThe IPS-ICV4-ANT2-BK is an ultra-thin 6-in-1 Antenna designed specifically for the i-Pro VPU4000, and ICV/BWC Systems. With a sleek, low-profile design, this cutting-edge wireless antenna delivers optimal performance while minimizing footprint. Equipped with 1 Bluetooth, 4 WLAN, and 1 GPS element, it ensures seamless connectivity for enhanced wireless communication. Perfect for applications requiring high-efficiency antennas, the IPS-ICV4-ANT2-BK solution provides robust functionality without sacrificing style or space.
More Information
IPS-ICV4-ANT2-BK (Black) i-PRO ICV4000 symmetrical fin antenna for VPU4000
- 4 WLAN
- 1 BT
- 1 GPS
- 7.04"L x 2.48"W x 1.69"H
- Permanent Stud Mount
Documents
Specifications
| SKU | L00012001 |
|---|---|
| Manufacturer Part Number | L000120-01 |
| Manufacturer | TE Connectivity |
| Antenna Category | Multi-Band (Cellular, WiFi, and/or GPS) |
| Working Frequency | 2400-2500 |
| Gain | 4.1 |
| Working Frequency 2 | 2400-2500 |
| Gain 2 | 5 |
| Working Frequency 3 | 4900-6000 |
| Gain 3 | 7.9 |
| Antenna Style | Multi Element/Band Antenna |
| Polarity | Linear/Vertical |
| SISO or MIMO | MIMO |
| Directional or Omni | Omni |
| Max Input Power (W) | 10W |
| VSWR: < X: 1 | <1.4:1 |
| No Of Elements | 6 |
| Height/Length (inches) | 7.04 |
| Height/Length (mm) | 179 |
| Width (inches) | 2.48 |
| Width (mm) | 63 |
| Weight (lbs) | 1.25 |
| Material | PC, UL94-VO |
| Operating Temp (celsius) | -30 to 70 |
| Color | Black |
| Connector Type | RP SMA Male - WiFi/BT SMA Male - GNSS |
| Number of Cables | 6 |
| Cable Length (inches) | 196 |
| IP Rating | IP67 |
| OK for Outdoor Use | Outdoor |
| Vehicular | Vehicular |
| Product Condition | New |
