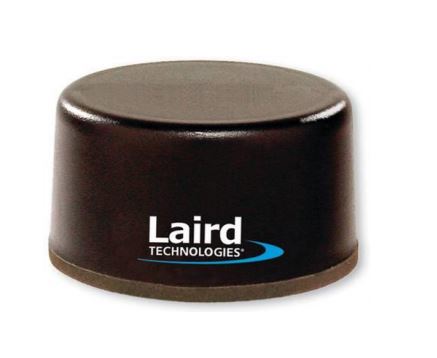

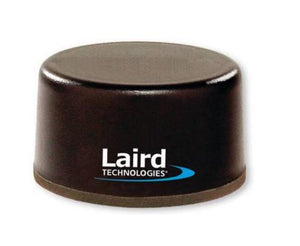

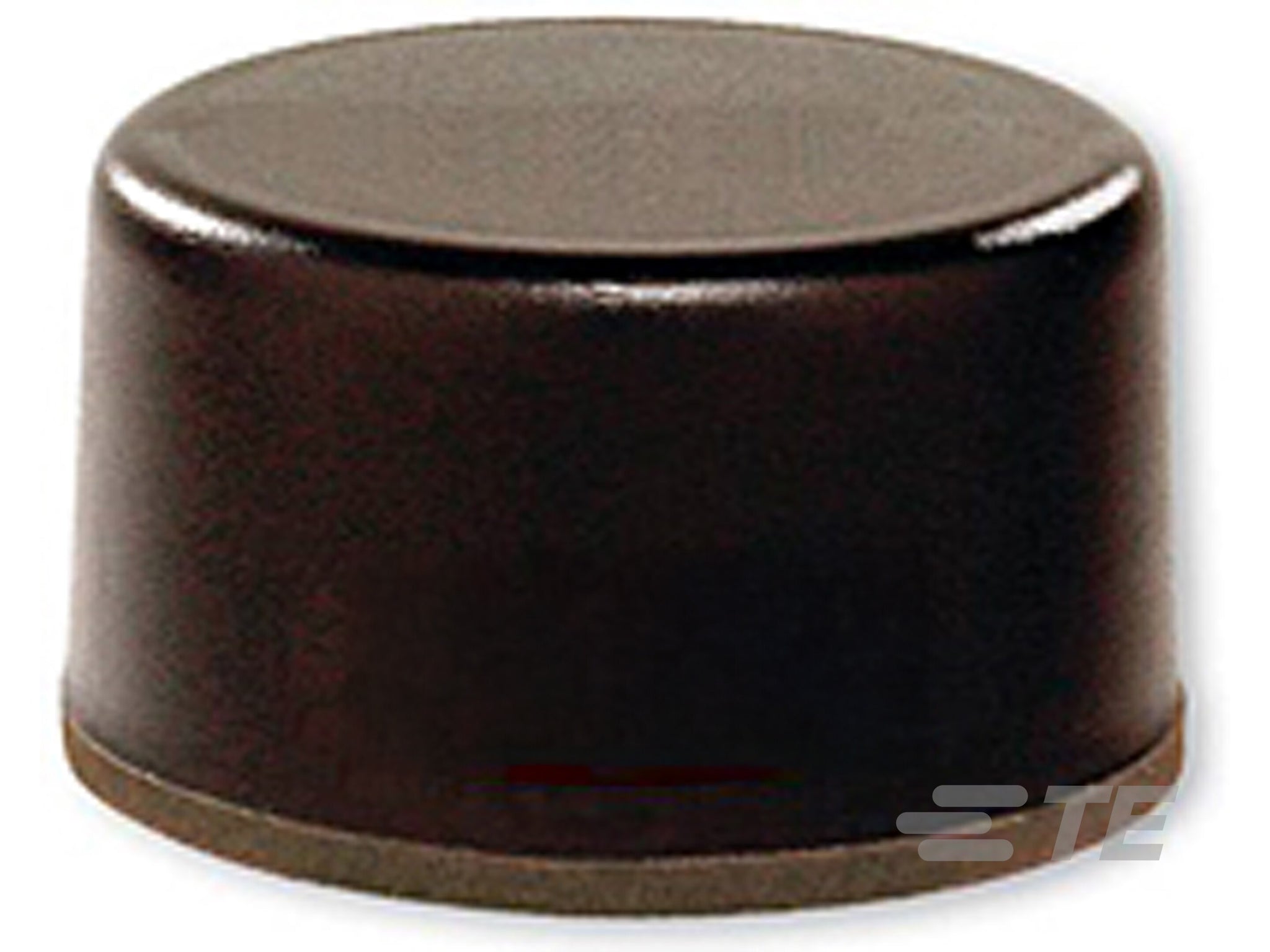

GPSU15M: High Gain Omnidirectional GPS Antenna with NMO termination

  • $75.65
    Unit price per

GPSU15M


0 in stock. Subject to factory lead time
Factory lead time:  Ships in 6-8 Weeks

GPSU15M: High Gain Omnidirectional GPS Antenna with NMO termination

GPSU15M: High Gain Omnidirectional GPS Antenna with NMO termination

More InfoDocumentsSpecifications Reviews

The Laird GPSU15M antenna is a robust, rigorously tested and environmentally sealed unit suitable for a wide variety of GPS applications. The GPSU15M is ideal for vehicle tracking, fleet management and a variety of location applications installations requiring maximum security and durability. The GPSU15M antenna is fully waterproof and features o-ring sealing that protects the antenna against severe environmental conditions for reliable, long-lasting performance.



More Information

The Laird GPSU15M antenna is a robust, rigorously tested and environmentally sealed unit suitable for a wide variety of GPS applications. The GPSU15M is ideal for vehicle tracking, fleet management and a variety of location applications installations requiring maximum security and durability. The GPSU15M antenna is fully waterproof and features o-ring sealing that protects the antenna against severe environmental conditions for reliable, long-lasting performance.

FEATURES

  • Fully waterproof o-ring sealing
  • High gain engineered performance
  • Color: Black

APPLICATIONS

  • Vehicle Tracking
  • Fleet Management

Documents


Specifications

SKU GPSU15M
Manufacturer Part Number GPSU15M
Manufacturer Laird
Product Condition New
Antenna Style Omnidirectional GPS Antenna
Antenna Style Omnidirectional GPS Antenna
Antenna Category GPS/GNSS (1545.72, 1561-1602 MHz)
Polarity Right Hand Circular
Bands Single
SISO or MIMO SISO
Directional or Omni Omnidirectional
Frequency 1 1575.42 ± 1 MHz
Gain 1 3dBi min (elevation = 90°) -5dBi min (elevation = 20°)
Impedance 50 Ohm
Max Input Power (W) 1 W
Front/Back Ratio (Db) 15 dB
Height/Length (inches) 1.4
Height/Length (mm) 35.6
Thickness/Diameter (inches) 2.6
Thickness/Diameter (mm) 66
Weight (lbs) 0.5
Connector 1 NMO
OK for Outdoor Use Yes
Vehicular Yes
Ground Plane Required No
