GPSNMO01: Pulse-Larsen Low Profile 1575.4 MHz Active GPS Antenna with NMO mount White

  • $65.31
    Unit price per

GPSNMO01


0 in stock. Subject to factory lead time
Volume Price Breaks
Quantity: Unit Price:
25 $62.15
100 $59.52
250 $56.73
500 $55.97
Lead time:  Ships in 4-6 Weeks

GPSNMO01: Pulse-Larsen Low Profile 1575.4 MHz Active GPS Antenna with NMO mount White

GPSNMO01: Pulse-Larsen Low Profile 1575.4 MHz Active GPS Antenna with NMO mount White

More InfoSpecifications Reviews

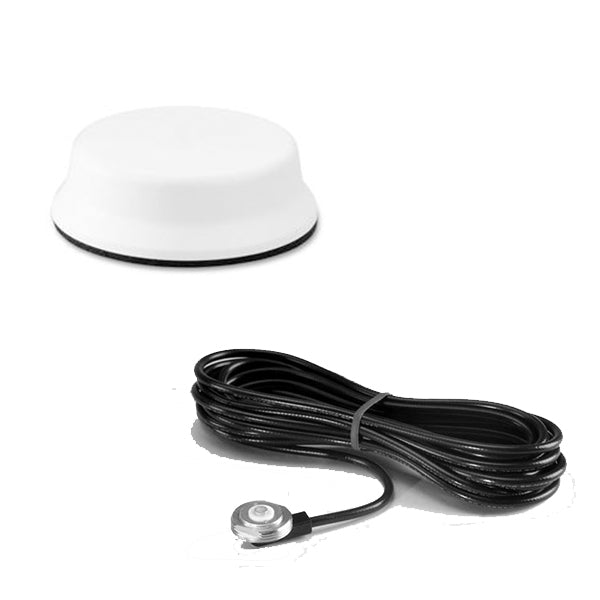

The Pulse-Larsen GPSNMO01 is a White Low Profile Omnidirectional GPS Antenna operating at 1575.4 MHz with NMO Mount Base

*This Antenna Requires a NMO Mount. Please click here to find all Thru-Hole NMO mounts or Magnetic NMO Mounts we carry.

***This part is subjected to a MOQ of 6 pcs***



More Information

The Pulse-Larsen GPSNMO01 is a White Low Profile Omnidirectional GPS Antenna operating at 1575.4 MHz with NMO Mount Base. This antenna features a hemispherical RF pattern, has right-hand circular polarization, is rated for 5 Volts DC input voltage, and offers 28 dB +/- 2 dB of active LNA Gain.

Founded in 1965 as Larsen Electronics, the company was acquired in 1999 by Radiall, then later by Pulse Electronics. Most of the company's antennas, mounts and cable kits are still made in the USA in the original factory in Vancouver, Washington. With over 2,000 standard antennas deliverable on short-notice, Pulse-Larsen is the recognized industry leader for LMR/Land Mobile Radio and Public Safety / M2M communications. All Pulse-Larsen antennas, cable kits and NMO mounts are covered by the original Larsen No Nonsense 2-Year Warranty.

These antennas have standard NMO / New Motorola mounting. NMO cable kits, such as the NMOKHFUD series can be purchased separately on this website.


Specifications

SKU GPSNMO01
Manufacturer Part Number GPSNMO01
Manufacturer Pulse
Antenna Category GPS/GNSS (1545.72, 1561-1602 MHz)
Working Frequency 1575.4 MHz
Gain 5 dBic
Antenna Style Low Profile
Polarity Circular
Bands Single
SISO or MIMO SISO
Directional or Omni Omnidirectional
VSWR: < X: 1 2:01
Height/Length (inches) 1.3
Height/Length (mm) 33.02
Thickness/Diameter (inches) 2.9
Thickness/Diameter (mm) 73.66
Weight (lbs) 0.3
Weight (grams) 136.36
Mount Style NMO
Color White
Connector Type Connector - Rear
Cable Type LMR195
OK for Outdoor Use Yes
Vehicular Yes
Ground Plane Required No
Product Condition New
