GPS & 5G/4G/WiFi 2-in-1 Antenna for Motorola APX8500, Dashboard or Windshield Mount.10 ft Cables & QMA. Adhesive Mount. R2G5A-10SQM

  • $90.00
    Unit price per

R2G5A-10SQM


208 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
50 $82.00
100 $69.99
Lead time for qty above 208:  Ships in 10-12 Weeks

Shipping calculated at checkout.

GPS & 5G/4G/WiFi 2-in-1 Antenna for Motorola APX8500, Dashboard or Windshield Mount.10 ft Cables & QMA. Adhesive Mount. R2G5A-10SQM

More InfoDocumentsSpecifications Reviews

This is fully compatible with the GPS & WiFi antenna ports on Motorola APX6500 & APX8500 All Band P25 Mobile Radios.

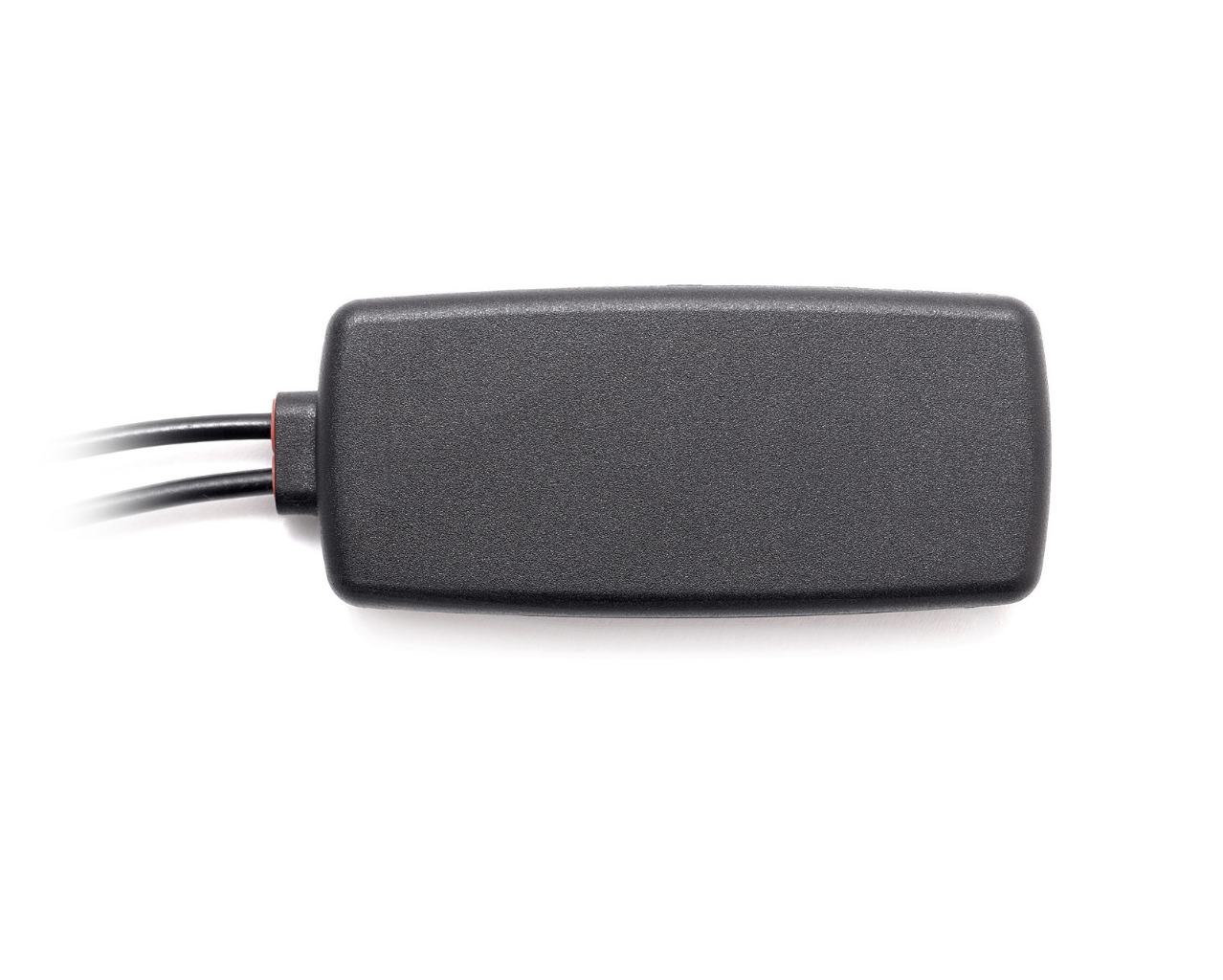

The R2G5A-10SQM is a 2-in-1 combination antenna for GPS (active 3.3 or 5 volt) & 3G/4G/LTE/5G/WiFi. This unit is meant to be used when the typical roof mount antennas are not practical due to mounting considerations, or when there is a desire for the antenna to be "covert." Unit mounts using adhesive tape (included) with 10 foot LMR100 cables & QMA male connectors. Operates at 4G & 5G Cellular or WiFi: 617-960/1700-2700/3000-6000 MHz & 1575.42 MHz GPS w/26 dB LNA. The antenna has a 10 foot LMR100 cables & QMA male connector and an adhesive tape to mount. This antenna can be mounted on a Velcro strip (Velcro not included).



More Information

  • No Drilling!  Excellent Choice for Leased Vehicles.
  • 5G & 3G/4G/LTE Cellular Frequencies: 617-960, 1700-2700, 3000-6000 MHz
  • Cellular Antenna Gain: 3.3 dBi (2:1 VSWR)
  • GPS Frequency: 1575.42 MHz
  • GPS Antenna: LNA Gain: 26 db
  • Small, Covert Size: L=3.3 x W=1.4 Inches
  • Max Power: 25 Watts
  • Operating Temp: -40 to +85 C

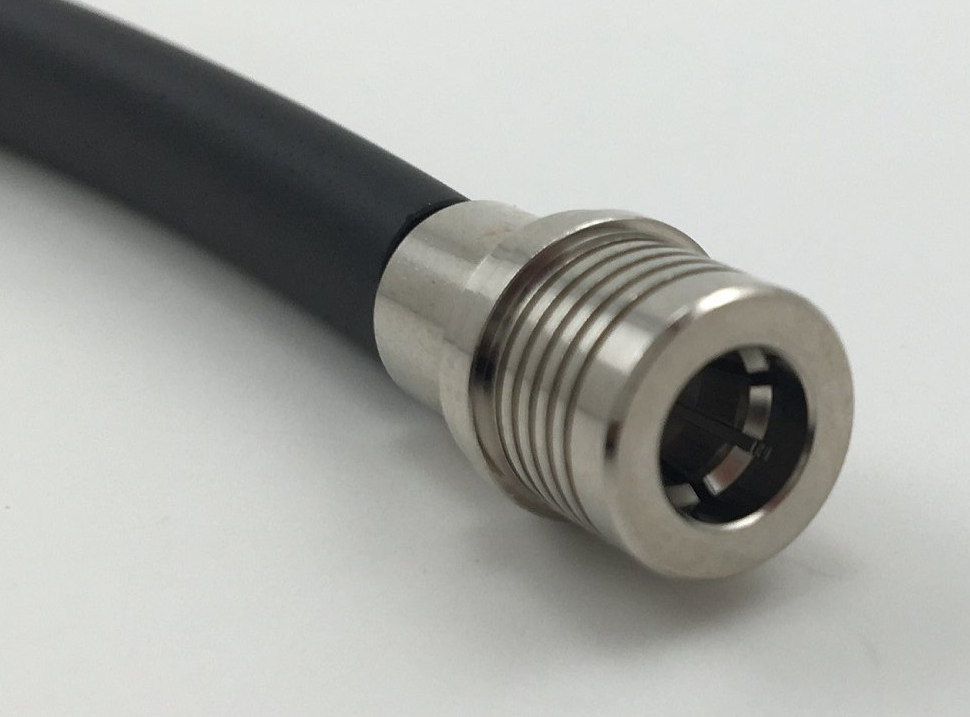

  • Cables/Connectors: (2x) 10 foot LMR-100 with QMA Male

Documents


Specifications

SKU R2G5A10SQM
Manufacturer Part Number R2G5A-10SQM
Manufacturer RFMAX
Antenna Category Multi-Band (Cellular, WiFi, and/or GPS)
Working Frequency 617-5925 MHz (5G/4G/WiFi)
Gain 3.3 dBi
Working Frequency 2 1575.42 (GPS)
Gain 2 26 dB (LNA Gain)
Antenna Style "Wedge" Multi-Element Antenna
Polarity Linear
Bands Multi
Directional or Omni Omnidirectional
Impedance 50 Ohms
Max Input Power (W) 25
VSWR: < X: 1 2:01
Horizontal/Azimuth Beamwidth 360
Height/Length (mm) 85
Width (mm) 35
Weight (lbs) .5
Material ABS UV Stable
Operating Temp (celsius) -40 to +85 C
Mount Style Wedge/Adhesive
Color Black
Cable Type LMR-100
Number of Cables 2
Cable Length (inches) 120
Connector 1 QMA-Male
Connector 2 QMA-Male
Includes Direct-Double Side Tape
IP Rating IP67, IP69
Vehicular Yes
Ground Plane Required No
Product Condition New
