RM1M-WW-10-RR-B: Dual / MiMo Wi-Fi Mag-Mount Antenna with RPSMA-Male Connectors & 10 ft. Cables for Forklift Mounting.

  • $99.00
    Unit price per

RM1M-WW-10-RR-B


192 Can ship immediately
Lead time for qty above 192:  Ships in 2-4 Weeks

RM1M-WW-10-RR-B: Dual / MiMo Wi-Fi Mag-Mount Antenna with RPSMA-Male Connectors & 10 ft. Cables for Forklift Mounting.

More InfoDocumentsSpecifications Reviews

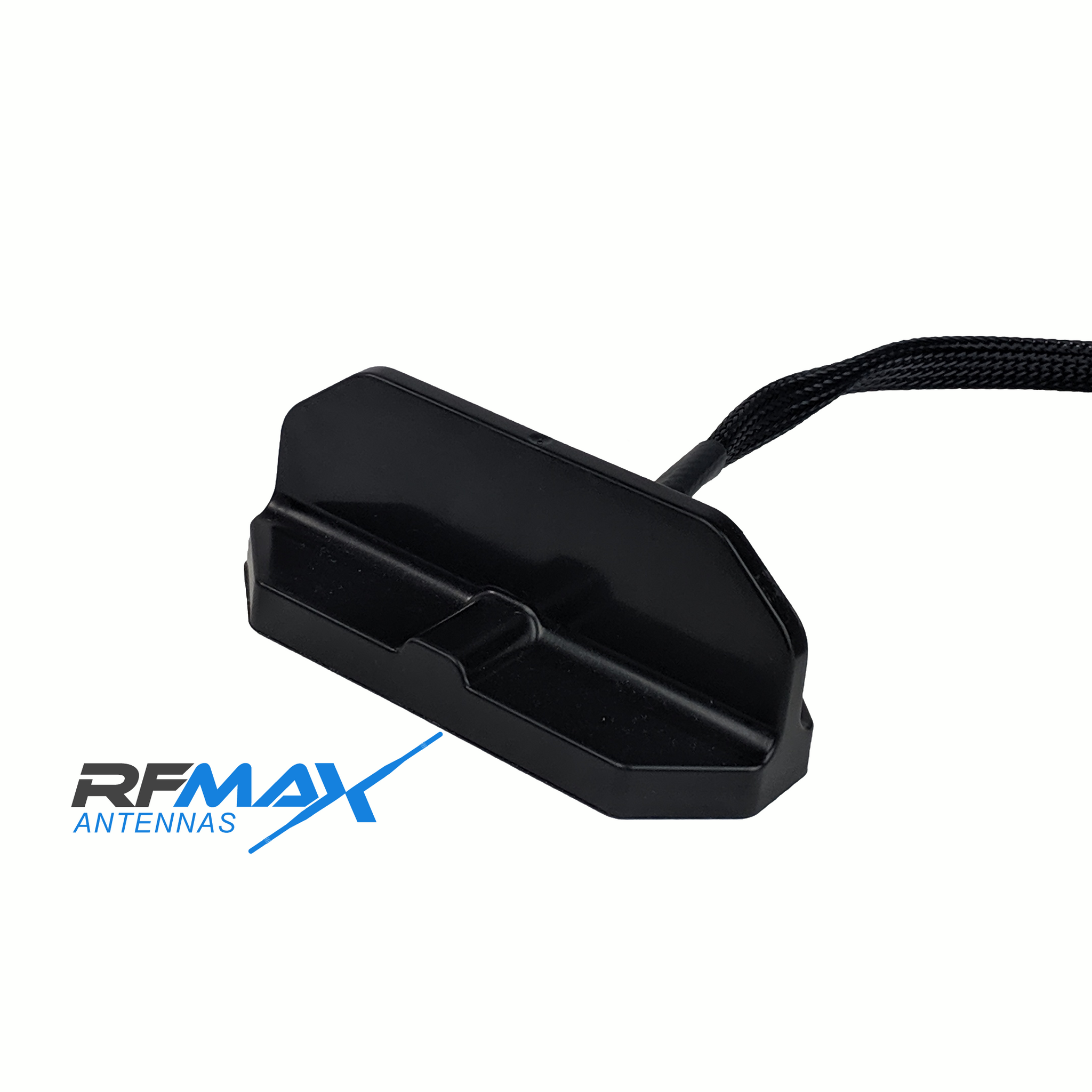

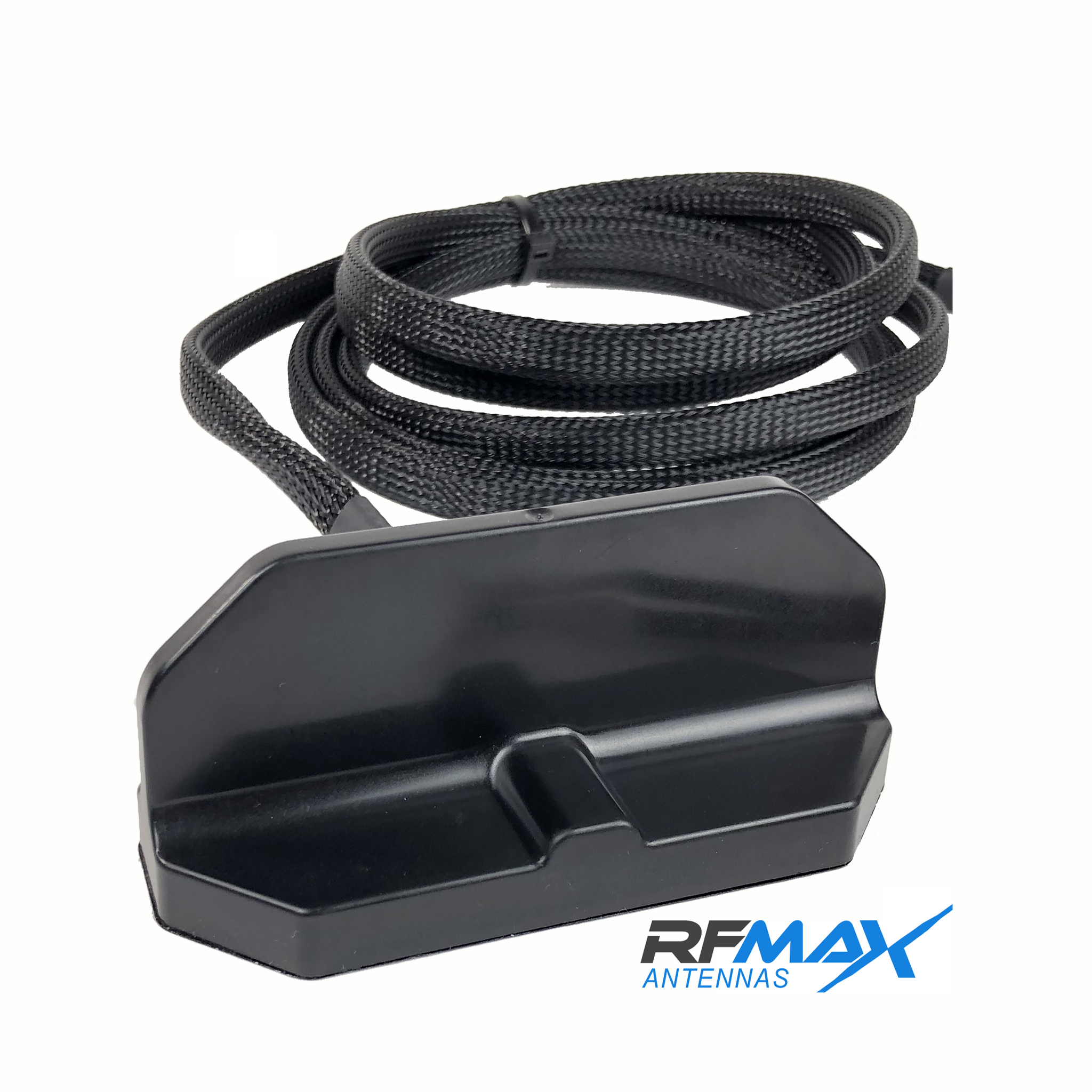

The RFMAX RM1M-WW-10-RR-B is an external mag-mount antenna with dual WiFi elements for MiMo connectivity. This model is optimized for use with rugged, vehicle-mounted computers on forklifts, yard trucks, cranes, etc. This model has 10-foot cables and RPSMA-Male connectors. Approved for Zebra: VC80, VC80x, VC8300, etc.



More Information

Rugged & Outdoor Rated for Forklifts, Cranes, Yard Trucks. Approved for Zebra: VC80, VC80x, VC8300, etc.


Documents

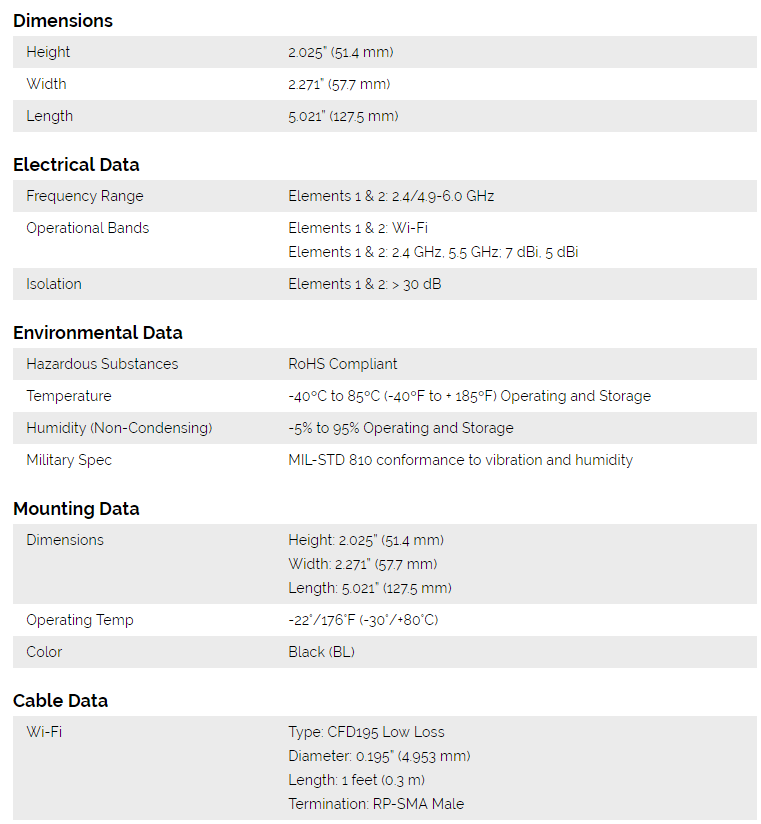

Specifications

SKU RM1MWW10RRB
Manufacturer Part Number RM1M-WW-10-RR-B
Manufacturer RFMAX
Antenna Category WiFi (2.4 & 5.0 GHz)
Gain 7 dBi
Center Tuned Frequency 1 2.4-2.5 GHz
Working Frequency 2 4.9-6.0 GHz
Gain 2 5 dBi
Antenna Style Forklift Antenna
Polarity Vertical
Bands Multi
SISO or MIMO MIMO
Directional or Omni Omnidirectional
Horizontal/Azimuth Beamwidth 360 degree coverage
No Of Elements 2
Cable Length - PT195 10 Foot
Height/Length (inches) 2.271 inches
Width (inches) 5.021 inches
Thickness/Diameter (inches) 2.025 inches
Operating Temp (celsius) -40 to +85 C
Mount Style Magnetic
Color Black
Connector 1 RP SMA-Male
Connector 2 RP SMA-Male
IP Rating Mil Std 810
OK for Outdoor Use Yes
Vehicular Yes
Ground Plane Required Yes
Product Condition New
