DBA6927C1FTNCM 4G LTE Swivel Blade Dipole Antenna with TNC

  • $12.43
    Unit price per

DBA6927C1-FTNCM


89 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
10 $11.34
25 $10.51
100 $9.64
250 $8.76
500 $8.03
Lead time for qty above 89:  Ships in 8-10 Weeks

DBA6927C1FTNCM 4G LTE Swivel Blade Dipole Antenna with TNC

More InfoDocumentsSpecifications Reviews

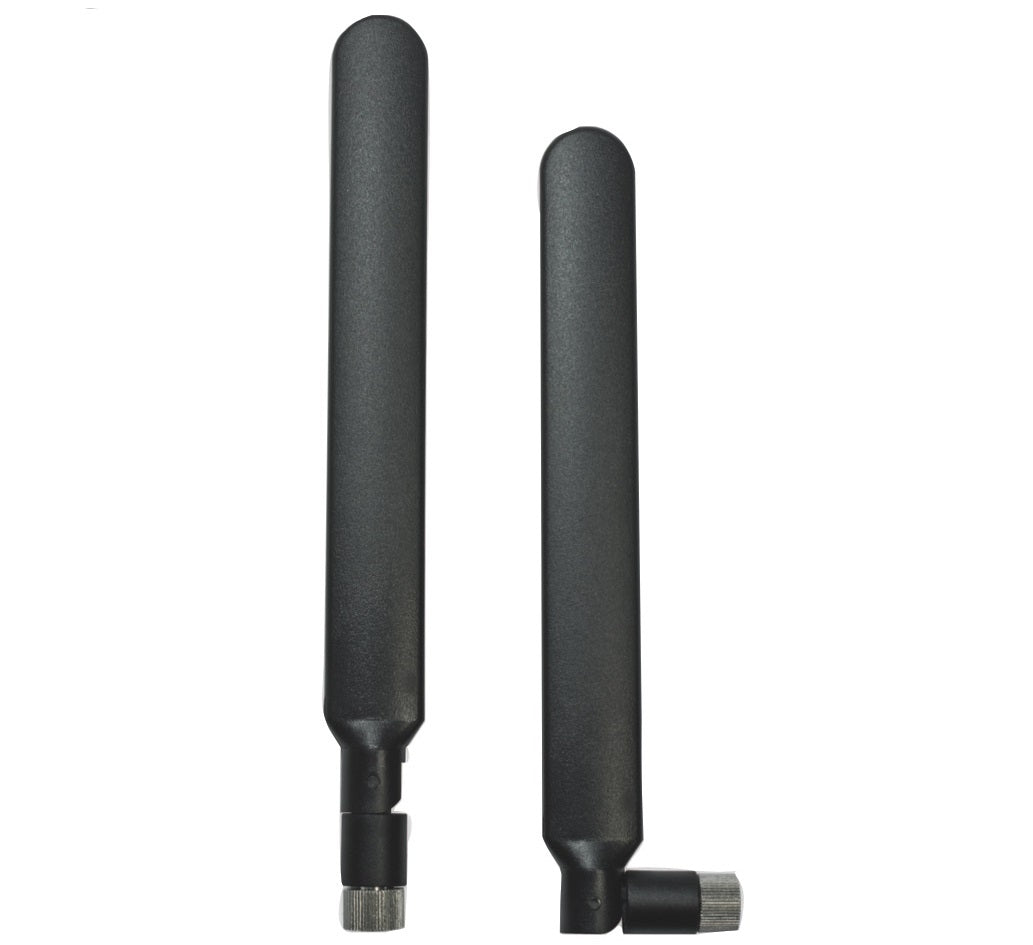

The DBA6927C1-FTNCM 3G/4G-LTE is a blade style dipole antenna with right angle knuckle and TNC male connector for cellular modems, access points, routers and small base station applications. The unit is 9 inches long and provides 2 dBi gain across the full range of frequencies of 698-2700 Mhz with TNC Male connector.



More Information

The DBA6927C1-FTNCM is a 4G swivel blade antenna designed for access points, routers and small base station applications. The DBA6927C1-FTNCM covers the LTE frequency ranges of 698-960/1710-2170/2500-2700 MHz providing omnidirectional radiation with a gain of 2 dBi. The blade package is a right angle swivel provided in black plastic with dimensions of .94” x 7.72” (23.8 mm x 196 mm) in the right angle position. It is supplied with an TNC Male connector.

Features

- 4G Swivel Blade Antenna
- Performance across the LTE frequency bands
- 698-960/1710-2170/2500-2700 MHz
- Up to 2 dBi Gain
- TNC Male connector
- RoHS Compliant

Product Applications

- 4G Router, Hub or Access point
- Small Base Station
- Femto Cell
- SOHO


Documents


Specifications

SKU DBA6927C1FTNCM
Manufacturer Part Number DBA6927C1-FTNCM
Manufacturer Laird
Antenna Category 3G/4G/LTE (698-2700 MHz)
Working Frequency 698-960
Gain 2 dBi
Working Frequency 2 1710-2170 MHz
Gain 2 2 dBi
Working Frequency 3 2500-2700
Gain 3 2 dBi
Antenna Style Blade Style Antenna
Polarity Vertical
Bands Multi
SISO or MIMO SISO
Directional or Omni Omnidirectional
Impedance 50
Max Input Power (W) 3
VSWR: < X: 1 2.5
Height/Length (inches) 9
Height/Length (mm) 228
Weight (lbs) 1.66 oz
Weight (grams) 47
Material PC/ABS. UL94 V-0
Operating Temp (celsius) -30 to +70
Color Black
Connector Type Connector - Bottom
Connector 1 TNC-Male
Includes articulating 90 degreee knuckle
OK for Outdoor Use Yes
Vehicular No
Ground Plane Required No
Product Condition New
