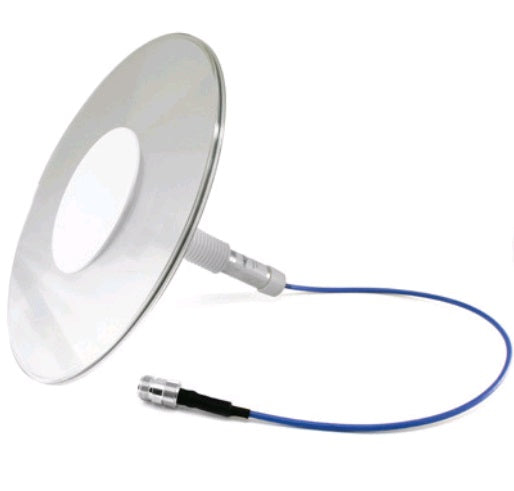

DASUTWCR500NF: White Clarity Series Ceiling Mount for 2g, 3g, 4g(lte) and Wifi Band with N-Female Connector (with Reflector)

  • $179.97
    Unit price per

DASUTWCR500NF


0 in stock. Subject to factory lead time
Volume Price Breaks
Quantity: Unit Price:
10 $95.28
25 $91.25
100 $86.97
250 $85.81
500 $85.25
Factory lead time:  Ships in 4-6 Weeks

DASUTWCR500NF: White Clarity Series Ceiling Mount for 2g, 3g, 4g(lte) and Wifi Band with N-Female Connector (with Reflector)

More InfoDocumentsSpecifications Reviews

Clarity series White ultra thin ceiling mount for 2g, 3g, 4g(lte) and wifi band with N-Female connector (with Reflector)

-Ceiling Mount indoor omni antenna for T-Mobile 600 MHz 4G/LTE band (610-698 MHz)



More Information

Clarity series White ultra thin ceiling mount for 2g, 3g, 4g(lte) and wifi band with N-Female connector. Reflector included

Documents


Specifications

SKU DASUTWCR500NF
Manufacturer Part Number DASUTWCR500NF
Manufacturer Pulse
Product Condition New
Antenna Style Ceiling Mount - DAS
Antenna Style Ceiling Mount - DAS
Antenna Category iDAS
Polarity Linear
Bands Multi
SISO or MIMO SISO
Directional or Omni Omnidirectional
Frequency 1 608-960 MHz
Gain 1 7
Frequency 2 1695-2200 MHz
Gain 2 7
Frequency 3 2300-2700 MHz
Gain 3 5
Impedance 50 Ohm
Max Input Power (W) 40
VSWR: < X: 1 2:01
Horizontal/Azimuth Beamwidth 360
Vertical/Elevation Beamwidth 100
Pim Rating (@ 2x20 W) -155
Height/Length (inches) 6.78
Height/Length (mm) 172.2
Width (inches) 9.41
Width (mm) 239
Weight (lbs) 1.65
Weight (grams) 750
Color White
Cable Length (inches) 19.5
Cable Length (mm) 500
Connector 1 N-Female
OK for Outdoor Use No
Vehicular No
Ground Plane Required No
