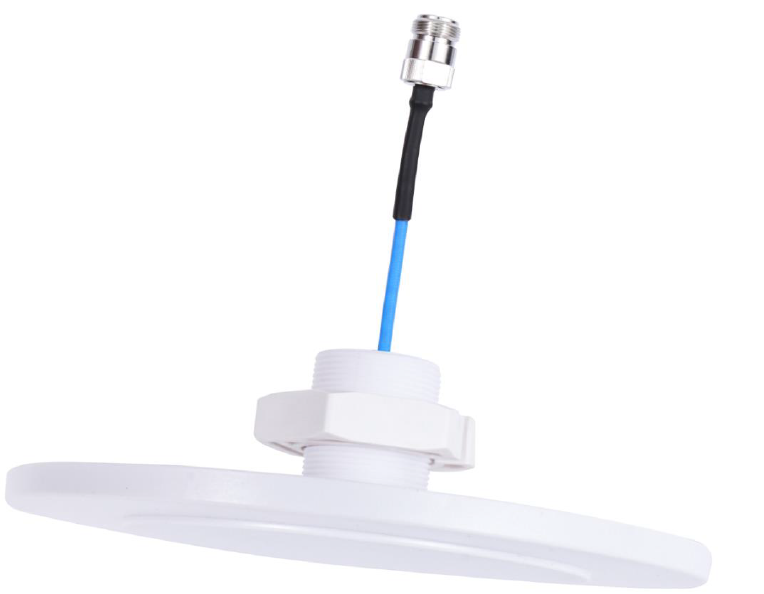

DASLPP5GNF: Skinny LTE 4G/5G 617-4200MHz Low PIM Ceiling Mount antenna with N-Female Connector
DASLPP5GNF
Shipping calculated at checkout.
DASLPP5GNF: Skinny LTE 4G/5G 617-4200MHz Low PIM Ceiling Mount antenna with N-Female Connector
More InfoDocumentsSpecifications ReviewsFeatures:
•Frequency 617-4200MHz
•Gain 2/3/4dBi
•Size Φ179x10mm(7.047x0.394”)
•Low PIM -152dBc

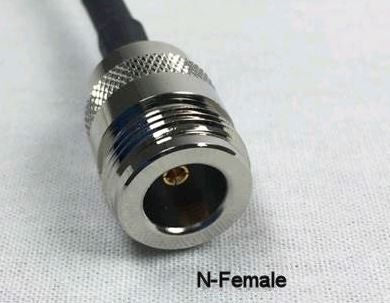

•Connector: 4.3-10 Female
or N-Female
•Direct mounting with nut
Applications:
•In building
•DAS system
•DAS 4G LTE systems
•DAS 5G systems
•Ceiling mounting
*This product is subjected to a minimum order quantity of 9*
More Information
Features:
•Frequency 617-4200MHz
•Gain 2/3/4dBi
•Size Φ179x10mm(7.047x0.394”)
•Low PIM -152dBc
•Connector: 4.3-10 Female
or N-Female
•Direct mounting with nut
Applications:
•In building
•DAS system
•DAS 4G LTE systems
•DAS 5G systems
•Ceiling mounting
Documents
Specifications
| SKU | DASLPP5GNF |
|---|---|
| Manufacturer Part Number | DASLPP5GNF |
| Manufacturer | Pulse |
| Antenna Category | 5G/4G (600-7125 MHz) |
| Working Frequency | 617-960 MHz |
| Gain | 2.3 dBi |
| Working Frequency 2 | 1710-2700 MHz |
| Gain 2 | 2.9 dBi |
| Working Frequency 3 | 3300-4200 MHz |
| Gain 3 | 3.2 dBi |
| Antenna Style | iDAS Antennas |
| Polarity | Horizontal |
| Bands | Multi |
| Directional or Omni | Omnidirectional |
| Impedance | 50 Ohm |
| Max Input Power (W) | 50 W |
| VSWR: < X: 1 | <1.5 |
| Height/Length (inches) | 7.047 |
| Height/Length (mm) | 179 |
| Width (inches) | 0.0394 |
| Width (mm) | 10 |
| Weight (lbs) | 0.485 |
| Weight (grams) | 220 |
| Mount Style | Direct Mount with nut |
| Color | White |
| Number of Cables | 1 |
| Cable Length (inches) | 11.811 |
| Cable Length (mm) | 300 |
| IP Rating | IP30 |
| Product Condition | New |
