CVLWLF2CBLK96: Multiband LTE covert antenna, 694-960 & 1700-2700 MHz, Black with 8' RG-174 cable with SMA plug

  • $37.86
    Unit price per

CVLWLF2CBLK96


0 in stock. Subject to factory lead time
Volume Price Breaks
Quantity: Unit Price:
10 $35.97
25 $34.08
100 $32.18
250 $26.98
500 $23.38
Lead time:  Ships in 4-6 Weeks

CVLWLF2CBLK96: Multiband LTE covert antenna, 694-960 & 1700-2700 MHz, Black with 8' RG-174 cable with SMA plug

CVLWLF2CBLK96: Multiband LTE covert antenna, 694-960 & 1700-2700 MHz, Black with 8' RG-174 cable with SMA plug

More InfoDocumentsSpecifications Reviews

The CVL-WLF covert antenna covers all Cellular and LTE networks from 694 MHz – 2.7 GHz, including 3G/4G, AWS, UMTS and LTE.


More Information

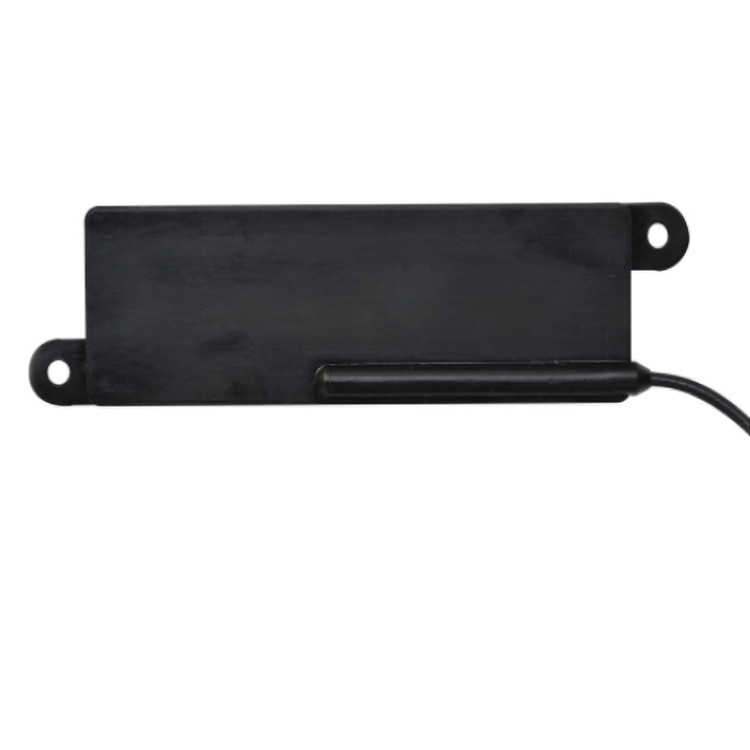

The CVL-WLF has a very slim profile; the depth of the antenna is less than 1/4″ (6 mm). The overall dimensions are also small. The antenna is approximately 5 3/4″ long, including the mounting holes, and 1 1/2″ wide (146 mm x 38 mm). The antenna features an over-molded plastic radome made from UV stable polyamide that allows some flexing of the antenna case.

Documents


Specifications

SKU CVLWLF2CBLK96
Manufacturer Part Number CVLWLF2CBLK96
Manufacturer Mobile Mark
Antenna Category Multi-Band (Cellular, WiFi, and/or GPS)
Working Frequency 694-960 MHz
Gain 2 dBi
Working Frequency 2 1700-2700 MHz
Gain 2 2 dBi
Max Input Power (W) 10
Color Black
Connector Type SMA-Male
Cable Type RG-174
Cable Length (inches) 96
Ground Plane Required No
Product Condition New
