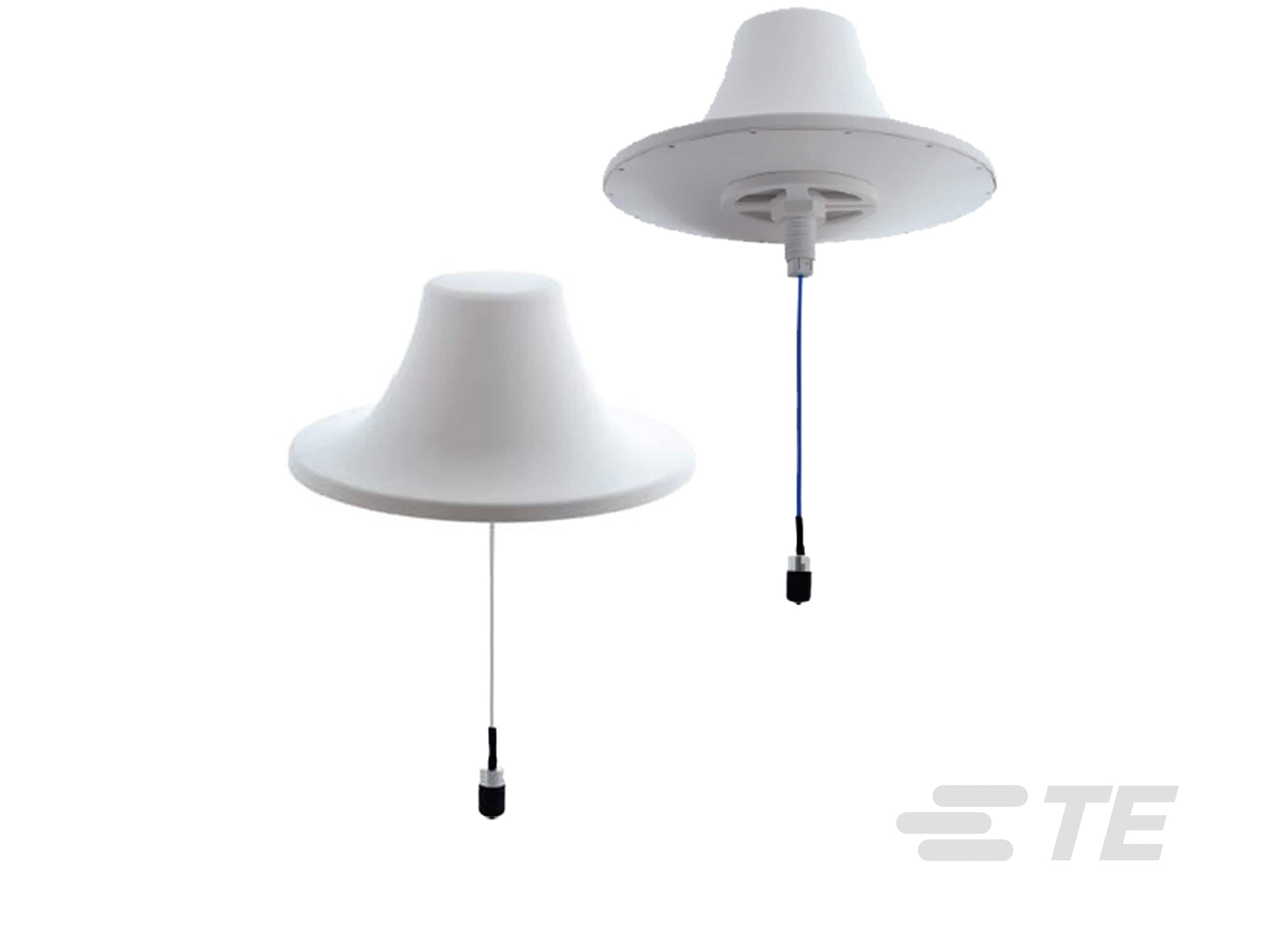

CMS38606-30NF: TE Connectivity Multiband Omnidirectional Broadband Ceiling Mounted Antenna 380-6000 MHz with N-Female Connector
CMS38606-30NF
Shipping calculated at checkout.
CMS38606-30NF: TE Connectivity Multiband Omnidirectional Broadband Ceiling Mounted Antenna 380-6000 MHz with N-Female Connector
More InfoDocumentsSpecifications ReviewsCMS38606-30NF is a TE Connectivity multiband omnidirectonal broadband ceiling mounted antenna operating within 380-6000 MHz frequency range with an N-Female Connector. This antenna is designed for cellular and LTE applications in public safety, neutral host providers, and in-building wireless operations.
More Information
CMS38606-30NF is a TE Connectivity multiband omnidirectonal broadband ceiling mounted antenna operating within 380-6000 MHz frequency range with an N-Female Connector. This antenna is designed for cellular and LTE applications in public safety, neutral host providers, and in-building wireless operations.
Features:
- Frequency: 380-520 MHz and 4300-6000 MHz
- Gain: 2.6 dBi and 6.0 dBi
- Max Power Input: 50 Watts
- IP Rating: IP67
- Connector: N-Female
Documents
Specifications
| SKU | CMS3860630NF |
|---|---|
| Manufacturer Part Number | CMS38606-30NF |
| Manufacturer | TE Connectivity |
| Antenna Category | Multi-Band (Cellular, WiFi, and/or GPS) |
| Working Frequency | 380-520 MHz |
| Gain | 2.6 dBi |
| Working Frequency 2 | 600-806 MHz |
| Gain 2 | 3.1 dBi |
| Working Frequency 3 | 806-960 MHz, 1395-1435 MHz, 1690-2200 MHz |
| Gain 3 | 3.1 dBi, 5.8 dBi, 6.7 dBi |
| Working Frequency 4 | 2200-4300 MHz |
| Gain 4 | 7.3 dBi |
| Working Frequency 5 | 4300-6000 MHz |
| Gain 5 | 6.0 dBi |
| Antenna Style | iDAS Antennas |
| Polarity | Vertical |
| Bands | Multi |
| SISO or MIMO | SISO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 Ohm |
| Max Input Power (W) | 50 |
| VSWR: < X: 1 | 2.0:1 |
| Horizontal/Azimuth Beamwidth | 360 |
| Height/Length (inches) | 5.23 |
| Height/Length (mm) | 133 |
| Width (inches) | 11.7 |
| Width (mm) | 298 |
| Weight (lbs) | 1.76 |
| Weight (grams) | 800 |
| Mount Style | Ceiling |
| Color | White |
| Cable Length (inches) | 12 |
| Cable Length (mm) | 300 |
| Connector 1 | N-Female |
| IP Rating | IP67 |
| Product Condition | New |
