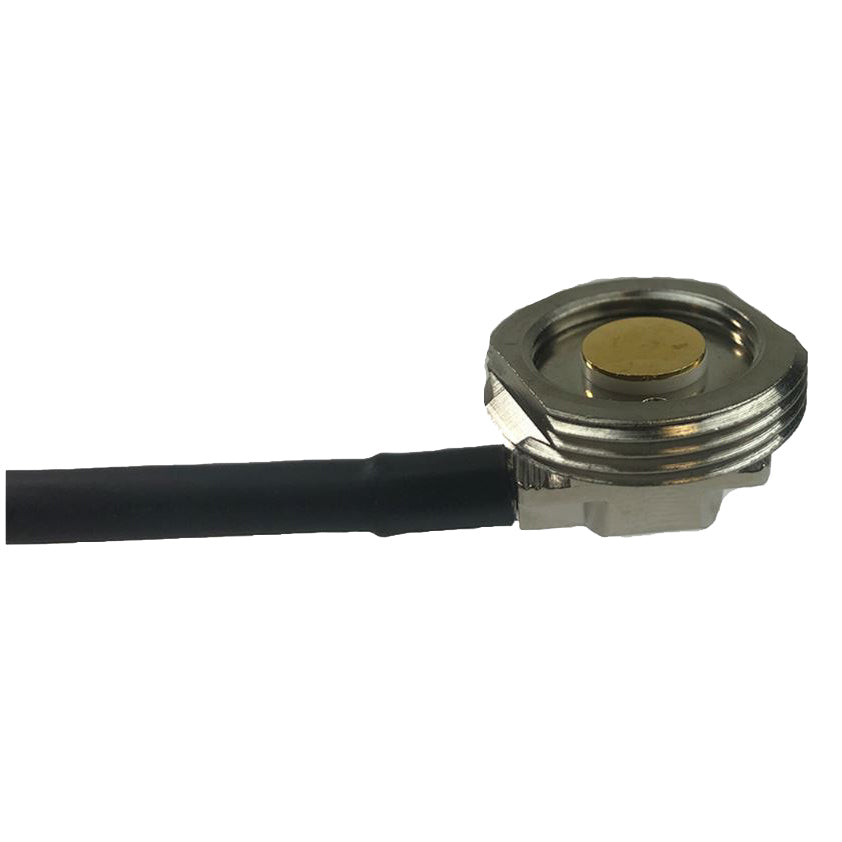

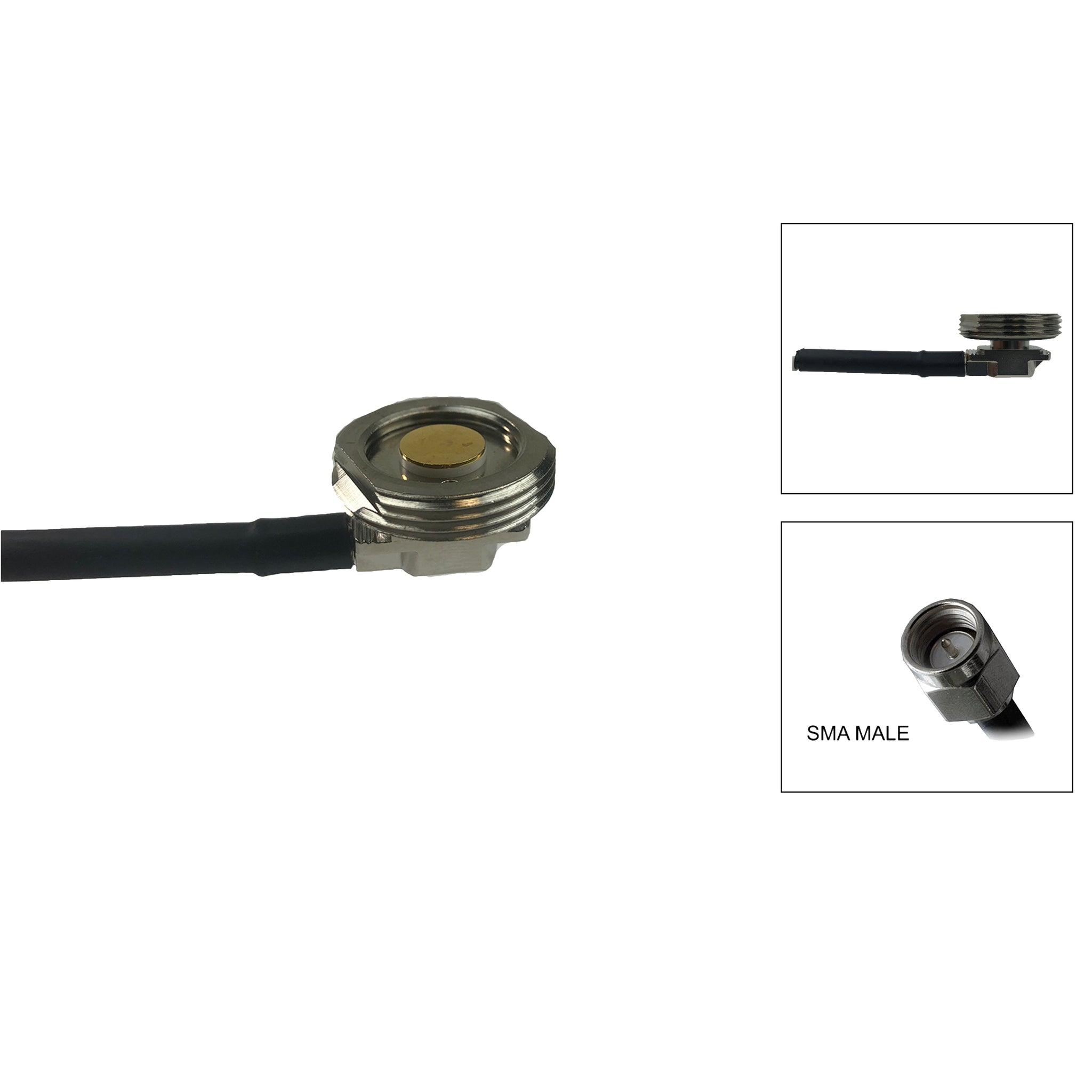

Chrome 3/4 Inch Thru Hole NMO Mount with 17 Ft of RG-58U Cable and SMA Male Connectors Installed

  • $29.25
    Unit price per

RNMOT-58U-SSM-C-17I


27 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
10 $26.82
25 $25.54
100 $24.75
250 $22.99
Lead time for qty above 27:  Ships in 6-8 Weeks

Shipping calculated at checkout.

Chrome 3/4 Inch Thru Hole NMO Mount with 17 Ft of RG-58U Cable and SMA Male Connectors Installed

More InfoDocumentsSpecifications Reviews

This RFMAX 3/4 Thru-Hole NMO Mount is optimized for vehicular roof mounting of an NMO type antenna. Typically used with VHF or UHF antennas, the RNMOT-58U-SSM-C-17I includes a 17 Ft. RG-58A/U (Stranded Copper Conductor) Cable & SMA Male connectors installed.

If this is not the NMO Mount you are looking for, please click here to find all NMO mounts we carry or email customersevice@arcadianinc.com  to get to one of our customer service team members.

Please Note: This NMO mount requires a drilled hole, please use part # HS34



More Information

Chrome 3/4 Inch Thru-Hole NMO Mount with 17 Ft of RG-58U Cable and SMA Male Connectors Installed.



FEATURES

  • 3/4 Inch Thru-Hole NMO Mount
  • 17 Ft. RG-58A/U Cable
  • SMA Male Connector Installed
  • 5 Year Factory Warranty



Cable Type Attenuation (dB/100 ft)
  150 MHZ 450 MHZ 900 MHZ
RG-58/U 5.4 10.2 16.1
RG-58A/U 6.2 12.5 20
RG8X 3.6 6.8 10.7
Solid Teflon Cable 4.8 9 13.5

Documents


Specifications

SKU RNMOT58USSMC17I
Manufacturer Part Number RNMOT-58U-SSM-C-17I
Manufacturer RFMAX
Antenna Style Mounts and Brackets
NMO Mount Type Thru Hole NMO mount
Mount Style 3/4 Thru-Hole NMO Mount
Connector 1 SMA-Male Installed
Cable Length (Mounts) 17 Feet
Cable Length 17 Feet
Cable Type RG-58/U
Cable Length (inches) 204
Cable Length (mm) 5181.6
Weight (lbs) 0.5
Weight (grams) 227.27
Used for Roof Thickness Up to 1/8 inch
Color Chrome
Connector Type SMA Installed
Includes Pre-Installed Connector
Vehicular Yes
OK for Outdoor Use Yes
Product Condition New
