Black Standard NMO Magnetic Mount with a 12 Ft RG-58A/U Cable and TNC Male Connectors Installed
RNMOM-58A-STM-B-12I
Shipping calculated at checkout.

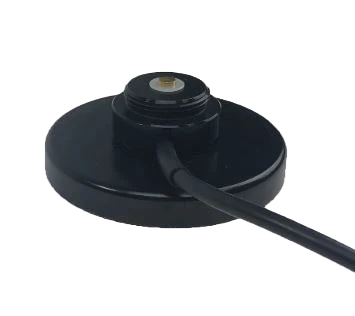

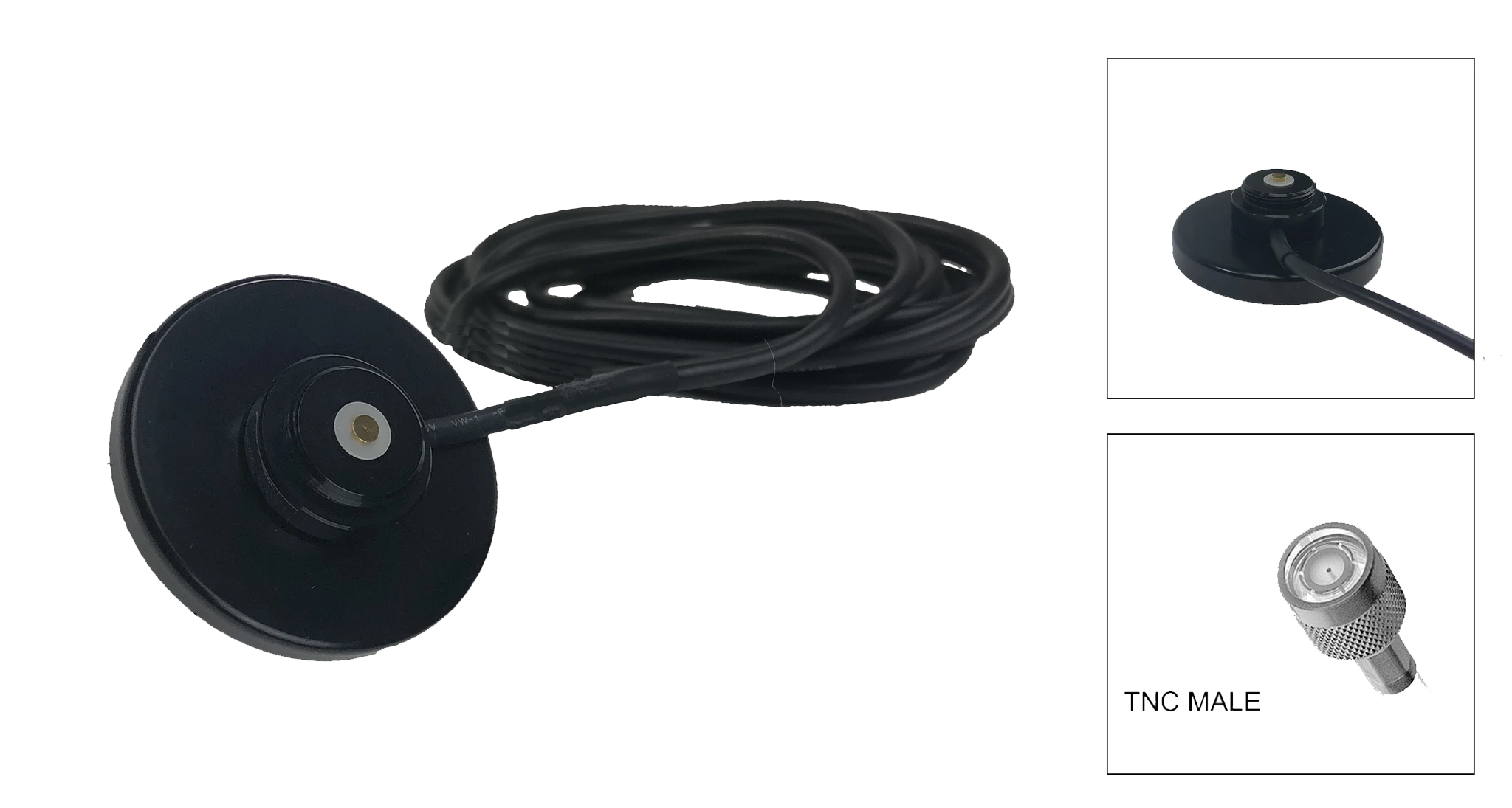

Black Standard NMO Magnetic Mount with a 12 Ft RG-58A/U Cable and TNC Male Connectors Installed
More InfoDocumentsSpecifications ReviewsThis RFMAX Magnetic NMO Mount is optimized for vehicular roof mounting of an NMO type antenna. Typically used with VHF or UHF antennas, the GB8BI includes a 12 Ft. RG-58A/U (Stranded Copper Conductor) Cable & TNC-Male Installed.
If this is not the NMO Mount you are looking for, please click here to find all NMO mounts we carry or email customersevice@arcadianinc.com to get to one of our customer service team members.
More Information
Black Standard NMO Magnetic Mount with a 12 Ft RG-58A/U Cable and TNC Male Connectors Installed
FEATURES
- Magnetic NMO Mount
- 12 Ft. RG-58A/U Cable

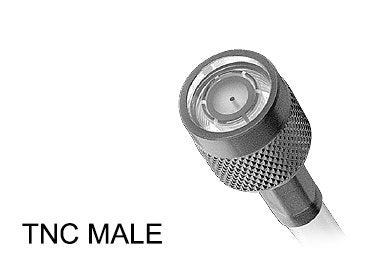

- TNC-Male Installed Connector Included
- 5 Year Factory Warranty
- The magnet features 80 lbs of pull strength
| Cable Type | Attenuation (dB/100 ft) | ||
| 150 MHZ | 450 MHZ | 900 MHZ | |
| RG-58/U | 5.40 | 10.20 | 16.10 |
| RG-58A/U | 6.20 | 12.50 | 20.00 |
| RG8X | 3.60 | 6.80 | 10.70 |
| Solid Teflon Cable | 4.80 | 9.00 | 13.50 |
Documents
We Also Recommend
In Stock
B8965CNS
B8965CNS: 16 Inch Coil Whip Antenna with Chrome NMO Spring Base - 896-970 Mhz
$65.19
$65.19
$59.26
$59.26
View Details
NMOMMRDSN
NMOMMRDSN: NMO 3.5 inch Round Magnetic Mount - 12 foot RG58A/U Dual-Shield - N
$44.72
$44.72
$39.67
$39.67
View Details
NMOMMRDSPL
NMOMMRDSPL: NMO 3.5 inch Round Magnetic Mount - 12 foot RG58A/U Dual-Shield - PL259
$52.72
$52.72
$45.30
$45.30
View Details
In Stock
NMOMMRDSSMA
NMOMMRDSSMA 3.5 inch Mag Mount - 12 foot RG58A/U Dual-Shield Cable - SMA Male
$49.13
$49.13
$45.61
$45.61
View Details
Specifications
| SKU | RNMOM58ASTMB12I |
|---|---|
| Manufacturer Part Number | RNMOM-58A-STM-B-12I |
| Manufacturer | RFMAX |
| Antenna Style | Mounts and Brackets |
| NMO Mount Type | Magnetic NMO Mount |
| Mount Style | Magnetic NMO Mount |
| Connector 1 | TNC-Male Installed |
| Cable Length (Mounts) | 12 Feet |
| Cable Length | 12 Feet |
| Cable Type | RG-58/U |
| Cable Length (inches) | 144 |
| Cable Length (mm) | 3657.6 |
| Thickness/Diameter (inches) | 3.2 |
| Thickness/Diameter (mm) | 81.28 |
| Weight (lbs) | 1 |
| Weight (grams) | 454.55 |
| Color | Black |
| Connector Type | TNC |
| Number of Cables | 1 |
| Includes | Pre-Installed Connector |
| Vehicular | Yes |
| OK for Outdoor Use | Yes |
| Product Condition | New |
