Black Magnetic NMO Mount with a 12 Ft. RG-58A/U Cable and TNC Male Connector Included but Not Installed

  • $51.45
    Unit price per

RNMOM-58A-STM-B-12


4 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
10 $47.16
25 $44.91
100 $43.54
250 $40.42
Lead time for qty above 4:  Ships in 6-8 Weeks

Shipping calculated at checkout.

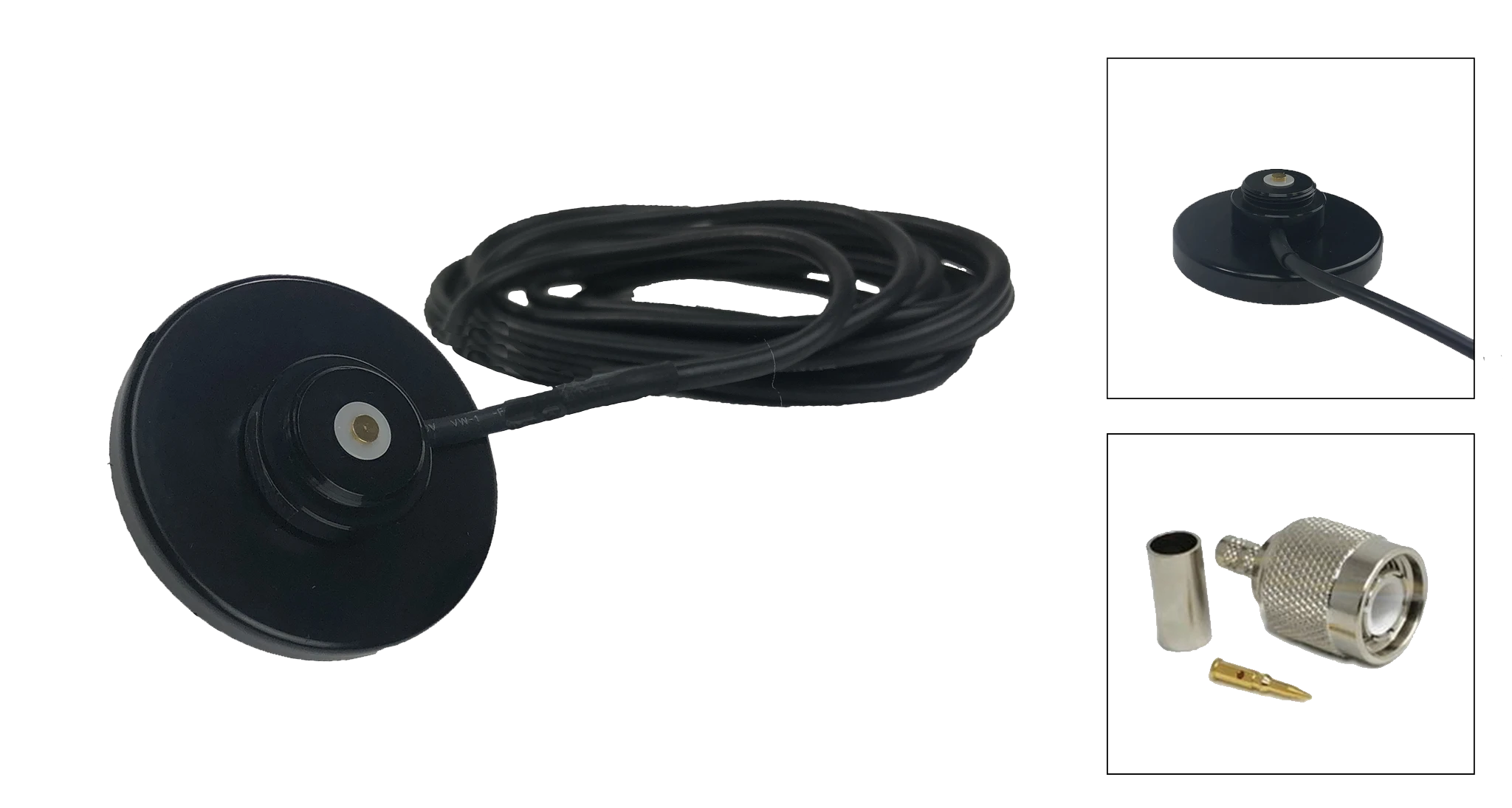

Black Magnetic NMO Mount with a 12 Ft. RG-58A/U Cable and TNC Male Connector Included but Not Installed

More InfoDocumentsSpecifications Reviews

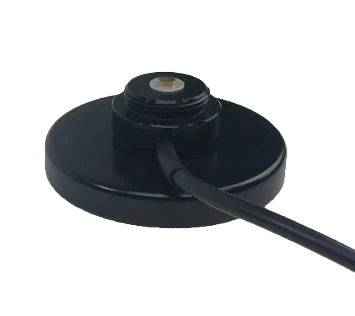

This RFMAX Magnetic NMO Mount is optimized for vehicular roof mounting of an NMO type antenna. Typically used with VHF or UHF antennas, the RNMOM-58A-STM-B-12 includes a 12 Ft. RG-58A/U (Stranded Copper Conductor) Cable and TNC-Male Included but not Installed

If this is not the NMO Mount you are looking for, please click here to find all NMO mounts we carry or email customerservice@arcadianinc.com to get to one of our customer service team members.



More Information

Black Magnetic NMO Mount with a 12 Ft. RG-58A/U Cable and TNC Male Connector Included but not Installed

FEATURES

  • Magnetic NMO Mount
  • 12 Ft. RG-58A/U Cable

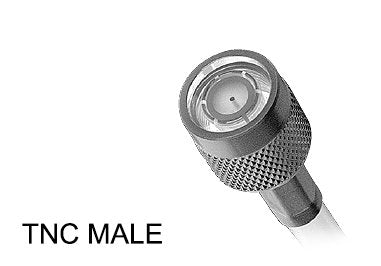

  • TNC-Male Connector Included
  • 5 Year Factory Warranty





Cable Type Attenuation (dB/100 ft)
  150 MHZ 450 MHZ 900 MHZ
RG-58/U 5.40 10.20 16.10
RG-58A/U 6.20 12.50 20.00
RG8X 3.60 6.80 10.70
Solid Teflon Cable 4.80 9.00 13.50

Documents


Specifications

SKU RNMOM58ASTMB12
Manufacturer Part Number RNMOM-58A-STM-B-12
Manufacturer RFMAX
Antenna Style Mounts and Brackets
NMO Mount Type Magnetic NMO Mount
Mount Style Magnetic NMO Mount
Connector 1 TNC-Male
Cable Length (Mounts) 12 Feet
Cable Length 12 Feet
Cable Type RG-58A/U
Cable Length (inches) 144
Cable Length (mm) 3657.6
Thickness/Diameter (inches) 3.2
Thickness/Diameter (mm) 81.28
Weight (lbs) 1
Weight (grams) 454.55
Color Black
Vehicular Yes
OK for Outdoor Use Yes
Product Condition New
