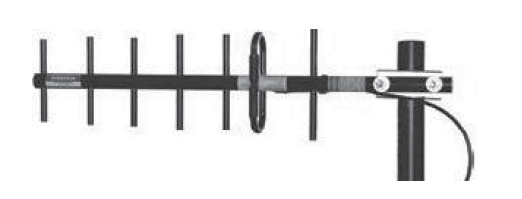

BGYD890K: PCTel Bluewave Guardian Yagi High Gain 7 Element 890-960 MHz N-Female Connector

  • $97.33
    Unit price per

BGYD890K


20 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
10 $95.90
25 $93.16
100 $90.57
250 $86.95
500 $85.80
Lead time for qty above 20:  Ships in 8-10 Weeks

Shipping calculated at checkout.
BGYD890K: PCTel Bluewave Guardian Yagi High Gain 7 Element 890-960 MHz N-Female Connector

BGYD890K: PCTel Bluewave Guardian Yagi High Gain 7 Element 890-960 MHz N-Female Connector

More InfoDocumentsSpecifications Reviews

PCTEL’s Bluewave Guardian series has been engineered to provide high gain broadband performance. Solid 3/8” aluminum elements complement the fully welded dipole on the boom. The black powder coat BGYD890M comes with an integral low loss 2’ RG213 feed line with a standard N Female connector. High strength mounting clamp is supplied for vertical or horizontal polarization.



More Information

PCTEL’s Bluewave Guardian series has been engineered to provide high gain broadband performance. Solid 3/8” aluminum elements complement the fully welded dipole on the boom. The black powder coat BGYD890M comes with an integral low loss 2’ RG213 feed line with a standard N Female connector. High strength mounting clamp is supplied for vertical or horizontal polarization.

Features

  • Dipole fully-welded to boom
  • Black powder coated aluminum
  • Mounting clamp included
  • Antenna is supplied with a 2’ pigtail (RG213) and N Female connector
  • Elements and boom are crafted from high strength 6061-T6 aluminum
  • Wind rated > 150 mph
  • Temperature range -40°C to +85°C

Documents


Specifications

SKU BGYD890K
Manufacturer Part Number BGYD890K
Manufacturer PCTEL
Antenna Category 900 MHz
Working Frequency 890-960 MHz
Gain 10 dBd
Antenna Style Yagi Antenna
Polarity Vertical
Bands Single
SISO or MIMO SISO
Directional or Omni Directional
Impedance 50 ohm
Max Input Power (W) 200
Front/Back Ratio (Db) 20 dB
Horizontal/Azimuth Beamwidth 60
Vertical/Elevation Beamwidth 46
No Of Elements 7
Height/Length (inches) 24
Height/Length (mm) 609.6
Width (inches) 6.5
Width (mm) 165.1
Thickness/Diameter (inches) 2.5
Thickness/Diameter (mm) 63.5
Weight (lbs) 2
Material High Strength 6061-T6 Aluminum
Operating Temp (celsius) -40°C to +85°C
Color Black
Cable Length (inches) 24
Cable Length (mm) 600
Connector 1 N-Female
OK for Outdoor Use Yes
Vehicular No
Ground Plane Required No
Product Condition New
