BB4505CNS 32 inch Black Base Coil Antenna - NMO Spring - 450-470 MHz NGP

  • $58.60
    Unit price per

BB4505CNS


7 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
10 $55.81
25 $51.71
100 $49.52
250 $47.20
500 $46.57
Factory lead time:  Ships in 6-8 Weeks

BB4505CNS 32 inch Black Base Coil Antenna - NMO Spring - 450-470 MHz NGP

BB4505CNS 32 inch Black Base Coil Antenna - NMO Spring - 450-470 MHz NGP

More InfoDocumentsSpecifications Reviews

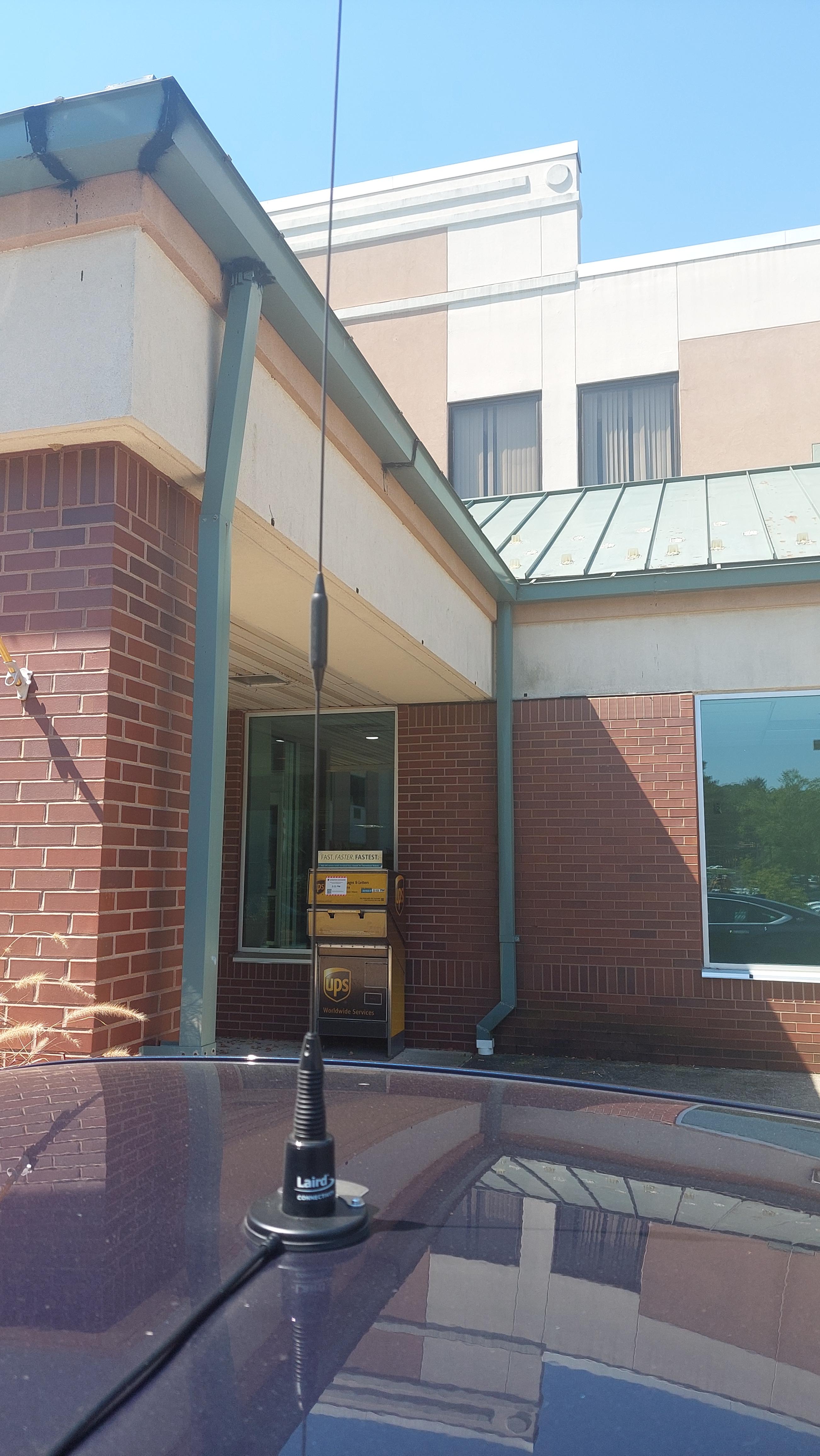

The Laird B4505CS is a 32 inch black base loaded mobile UHF whip antenna with NMO base and spring. This antenna does NOT require a metal ground plane. This omnidirectional antenna ofers 5 dbi gain and 100 watts max power and operates in the 450MHz - 470MHz range.

*This Antenna Requires a NMO Mount. Please click here to find all Thru-Hole NMO mounts or Magnetic NMO Mounts we carry.



More Information

The Laird B4505CS is a 32 inch black base loaded mobile UHF whip antenna with NMO base and spring. This antenna does NOT require a metal ground plane. This omnidirectional antenna ofers 5 dbi gain and 100 watts max power and operates in the 450MHz - 470MHz range.

Lairds’ongoing commitment to refinement in mechanical and electrical design has resulted in the most technically advanced mobile load coil antennas on the market. Exclusive features such as stainless steel whips, housings constructed with ABS material injected molded around a solid brass insert, and gold plated push pin contacts make Laird Technologies the obvious choice for quality and long lasting value for demanding mobile radio communications.

FEATURES

  • Long tuning ferrule allows for greater freedom in frequency adjustment without trimming
  • High performance mobile antenna - No ground plane required
  • Straight Stainless steel corona ball stays on the rod – no metal interactions
  • Easy Installation / NMO mountable
  • 100% tested on a network analyzer



APPLICATIONS

  • Public Safety
  • Transportations/Logistics
  • Utilties
  • Military

Documents


Specifications

SKU BB4505CNS
Manufacturer Part Number BB4505CNS
Manufacturer Laird
Product Condition New
Antenna Style Whip
Antenna Style Whip
Antenna Category M2M 400-490 MHz
Polarity Linear
Bands Single
SISO or MIMO SISO
Directional or Omni Omnidirectional
Frequency 1 450-470 MHz
Gain 1 5dB
Max Input Power (W) 200
VSWR: < X: 1 2:01
Height/Length (inches) 33
Height/Length (mm) 838.2
Mount Style NMO Mount
Color Black
OK for Outdoor Use Yes
Vehicular Yes
Ground Plane Required No
