VHF Basecoil Antenna 144-174 MHz Field Tunable with Spring, 3 db for high power Radios | RBCO-160-3-SC-FT
RBCO-160-3-SC-FT
Shipping calculated at checkout.
VHF Basecoil Antenna 144-174 MHz Field Tunable with Spring, 3 db for high power Radios | RBCO-160-3-SC-FT
More InfoDocumentsSpecifications ReviewsThe RFMAX RBCO-160-3-SC-FT is a rugged, Field Tunable base-loaded coil antenna engineered for reliable operation in 144-174 MHz Field Tunable. Its standard NMO mounting system and compact spring-whip design make it well suited for installation on vehicles, industrial equipment, outdoor enclosures, and other field-deployed systems.
More Information
Specifications
| SKU | RBCO1603SCFT |
|---|---|
| Manufacturer Part Number | RBCO-160-3-SC-FT |
| Manufacturer | RFMAX |
| Antenna Category | VHF (132-220 MHz) |
| Working Frequency | 144-174 MHz |
| Antenna Style | Mobile Whip Antenna |
| Directional or Omni | Omni Directional |
| Impedance | 50 ohms |
| Max Input Power (W) | 200W |
| VSWR: < X: 1 | 2:1 |

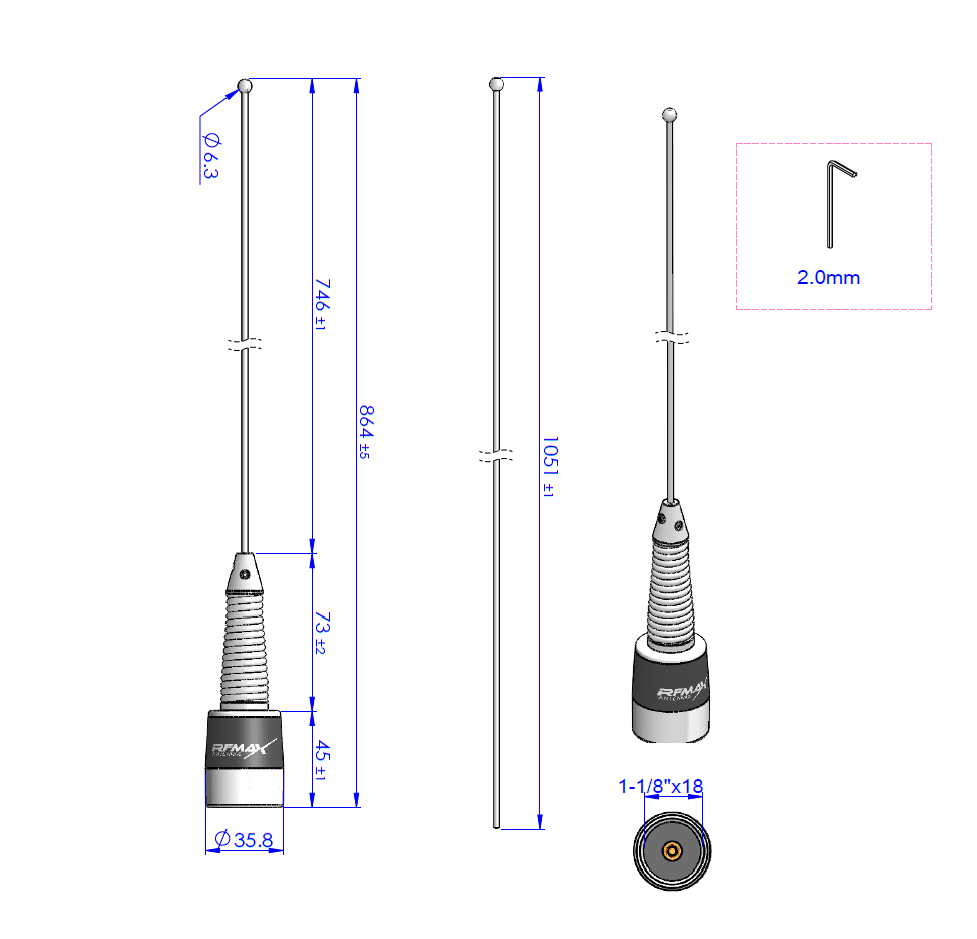

| Height/Length (inches) | 34 |
| Height/Length (mm) | 864 |
| Thickness/Diameter (inches) | 1.41 |
| Thickness/Diameter (mm) | 35.8 |
| Operating Temp (celsius) | -40 to +85 |
| Color | Chrome |
| Connector 1 | NMO Mount |
| Includes | Spring Mount |
| IP Rating | IP67/IP69 |
| OK for Outdoor Use | Indoor/Outdoor |
| Vehicular | Yes |
| Ground Plane Required | Yes |
| Product Condition | New |
