ASP7455: PCTEL / Maxrad Rooftop Mount Antenna 138-174 MHz 3 dB

  • $37.83
    Unit price per

ASP7455


33 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
10 $37.68
25 $36.95
100 $35.84
250 $34.05
500 $33.10
1000 $32.42
2500 $31.78
Lead time for qty above 33:  Ships in 6-8 Weeks

Shipping calculated at checkout.
ASP7455: PCTEL / Maxrad Rooftop Mount Antenna 138-174 MHz 3 dB

ASP7455: PCTEL / Maxrad Rooftop Mount Antenna 138-174 MHz 3 dB

More InfoDocumentsSpecifications Reviews

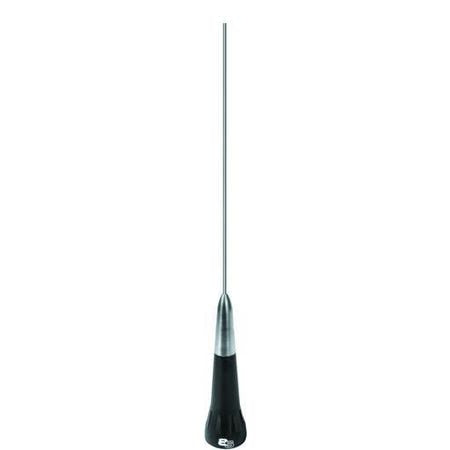

The Mosaic® high-performance collinear antenna provides exceptional coverage of VHF frequencies with 3 dB gain performance. It features a black UV stabilized ABS base that resists chalking and provides long-lasting operation. Patented DURA-FLEX® elastomer spring eliminates duplex system noise caused by semi-conductive deposits found in traditional coil springs.

This Antenna Requires a NMO Mount. Please click here to find all Thru-Hole NMO mounts or Magnetic NMO Mounts we carry.



More Information

The Mosaic® high-performance collinear antenna provides exceptional coverage of VHF frequencies with 3 dB gain performance. It features a black UV stabilized ABS base that resists chalking and provides long-lasting operation. Patented DURA-FLEX® elastomer spring eliminates duplex system noise caused by semi-conductive deposits found in traditional coil springs.


Features

  • Enhanced Performance - all brass inserts eliminate interference caused by dissimilar metals
  • Long Life - black UV stabilized ABS base resists chalking and provides long-lasting operation
  • Noise-Free - unique patented DURA-FLEX® elastomer spring eliminates duplex system noise caused by semi-conductive deposits found in traditional metal coil springs
  • System Oriented - compatible with 1-1/8” -18 thread mobile mounts, including 3/4” hole mounts for easy antenna replacement or upgrade

Documents


Specifications

SKU ASP7455
Manufacturer Part Number ASP7455
Manufacturer PCTEL
Antenna Category VHF (132-220 MHz)
Antenna Style Base Coil Antennas
Ground Plane Required No
Product Condition New
