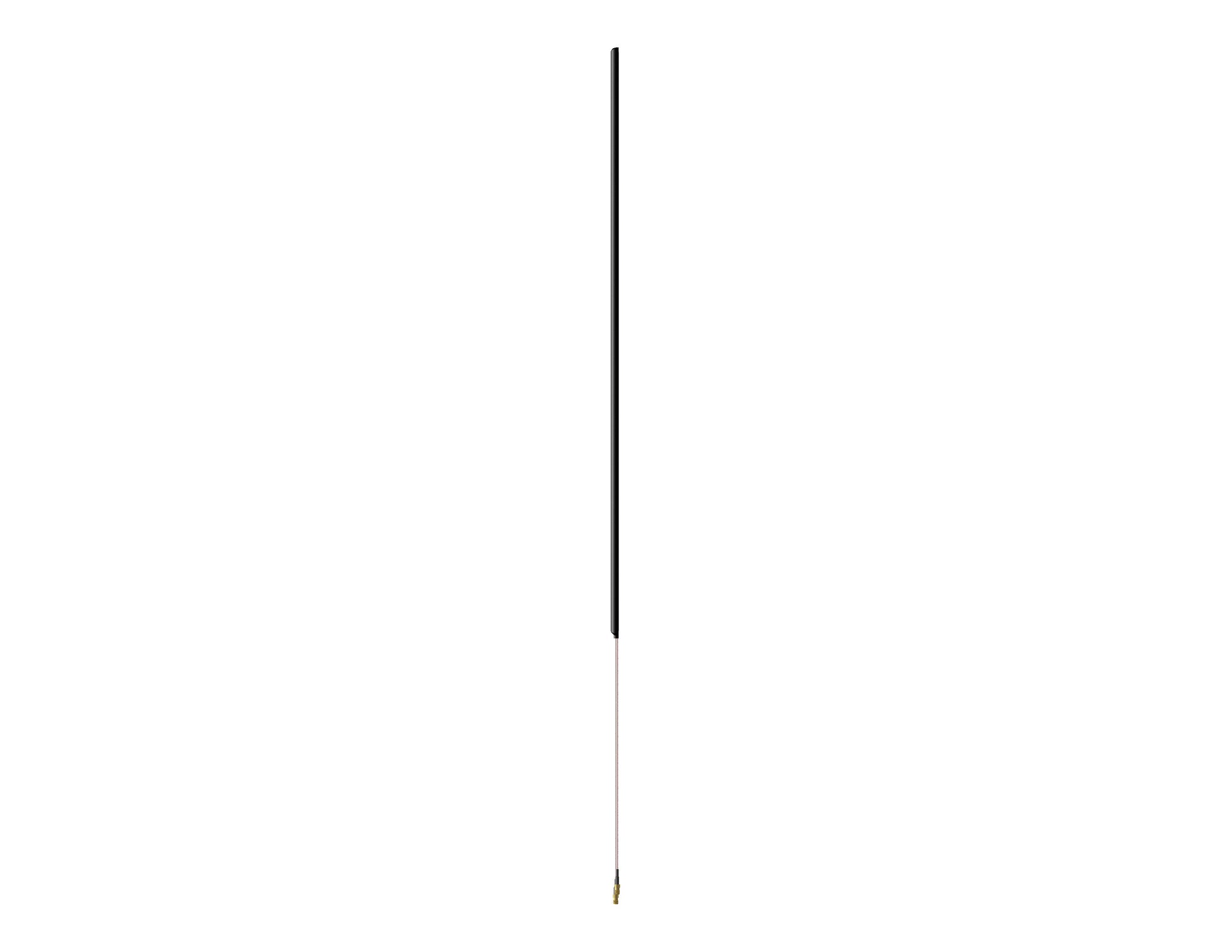

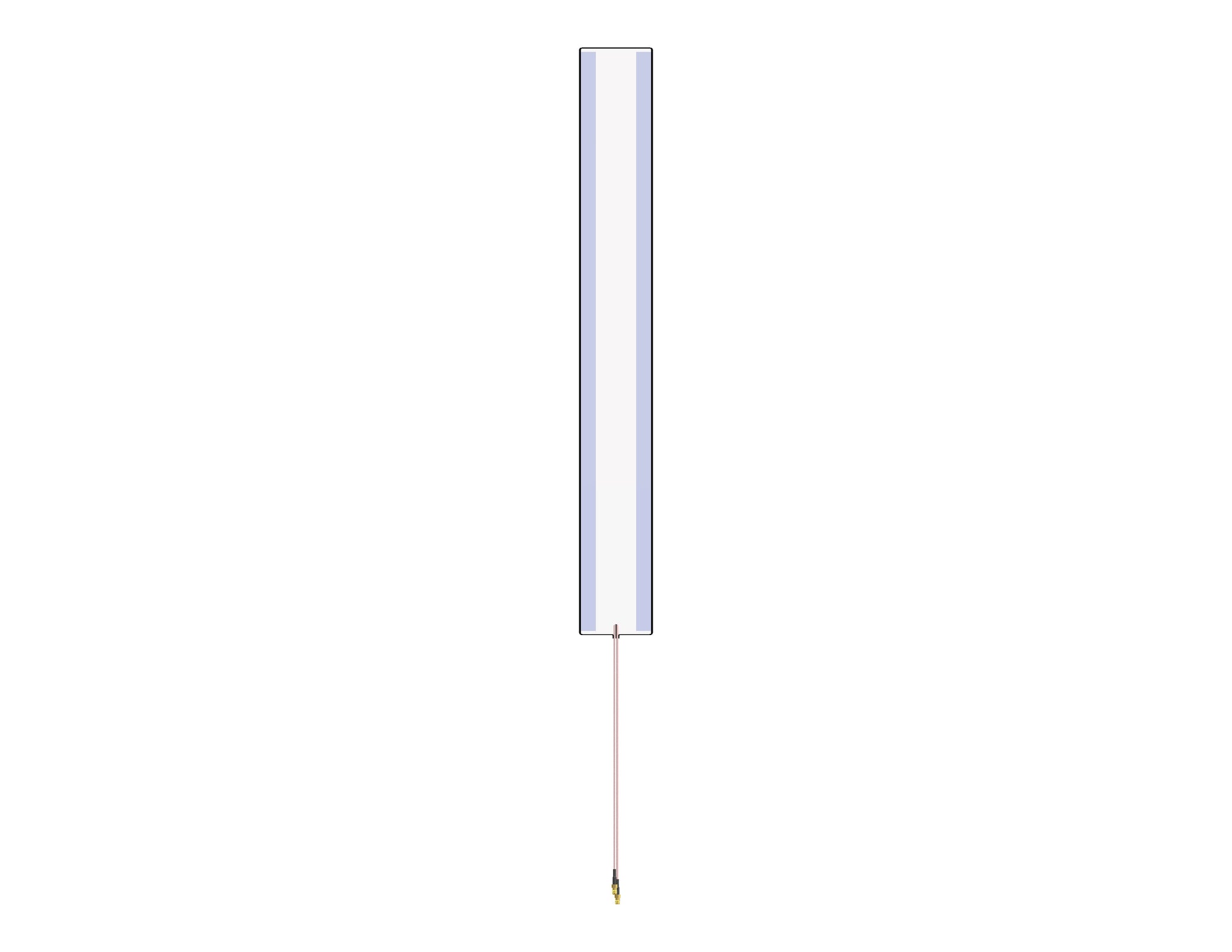

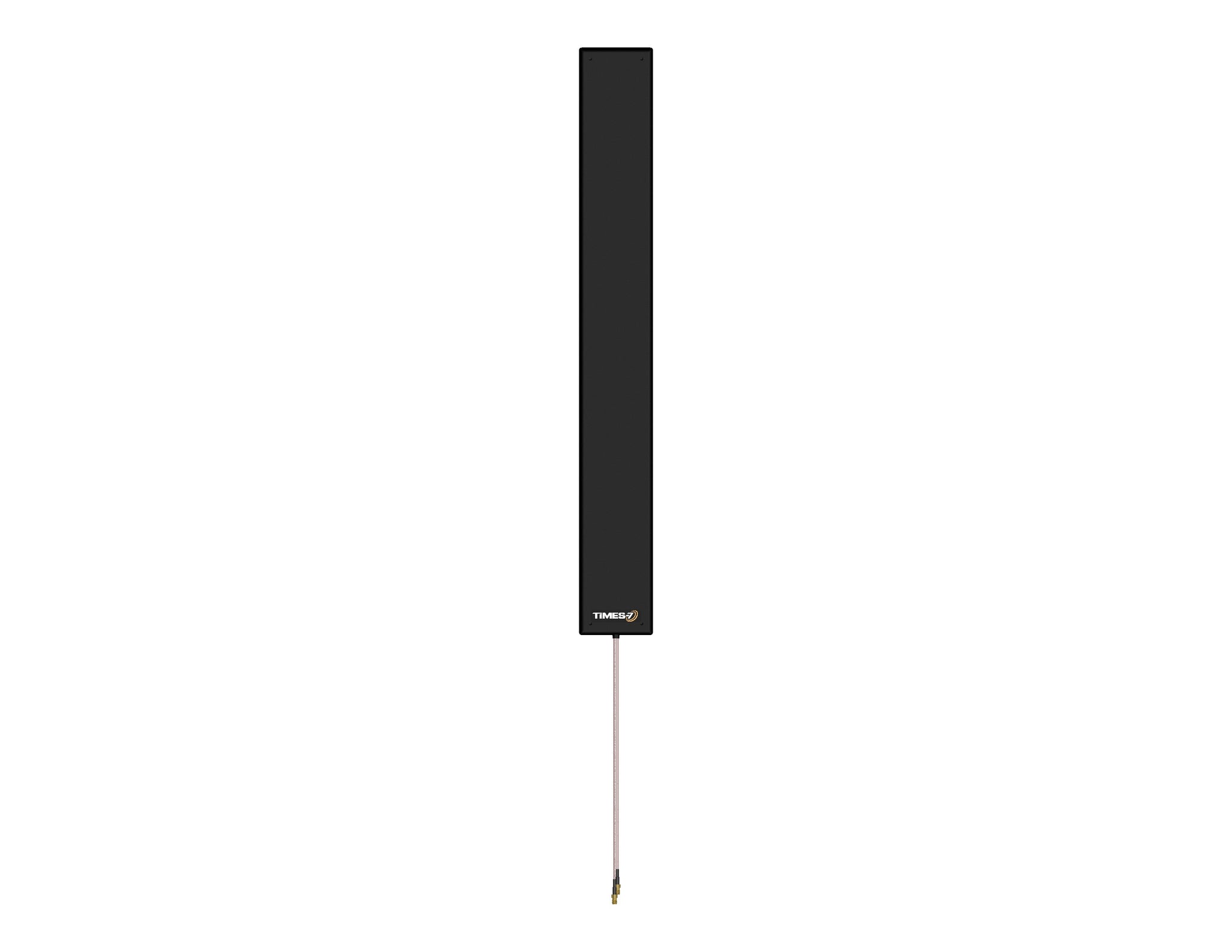

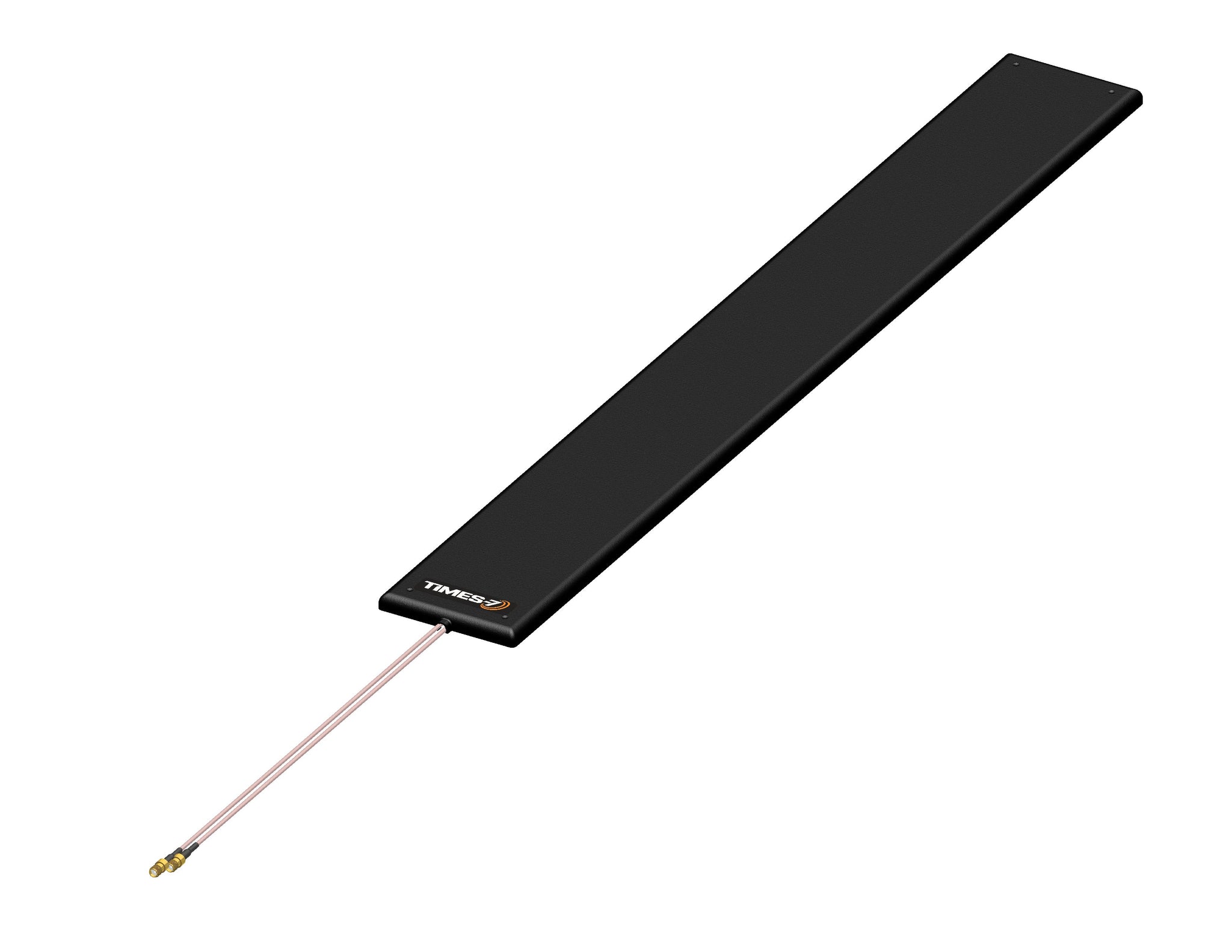

A8065V-71884 (FCC) Vertical: SlimLine UHF Antenna 902-928 MHz

Shipping calculated at checkout.

More Info Specifications Reviews

SKU	A8065V71884
Manufacturer Part Number	A8065V-71884
Manufacturer	Times-7
Working Frequency	902-928 MHz
Antenna Category	RFID (865-928 MHz)
Bands	Single
IP Rating	IP54
Polarity	Vertical
Gain	Horizontal: 3dBi; Vertical: 4dBi
Horizontal/Azimuth Beamwidth	25° in XZ plane; 140° in YZ plane
Vertical/Elevation Beamwidth	40° in XZ; 110° in YZ
Connector Type	Connector - Side Entry
Connector 1	SMA-Female
Height/Length (inches)	27.5
Height/Length (mm)	700
Operating Temp (celsius)	-20° to +55°C / -4° to +131°F
Thickness/Diameter (inches)	0.3
Thickness/Diameter (mm)	8
Width (inches)	3.4
Width (mm)	86
Weight (lbs)	1.1
Material	Fire retardant ABS
Mount Style	Integrated mounting guides / Adhesive foam strip
Product Condition	New
