A8065-71881 (ETSI) Combo: SlimLine UHF Antenna 864-868 MHz
A8065-71881 (ETSI) Combo: SlimLine UHF Antenna 864-868 MHzMore InfoDocumentsSpecifications Reviews

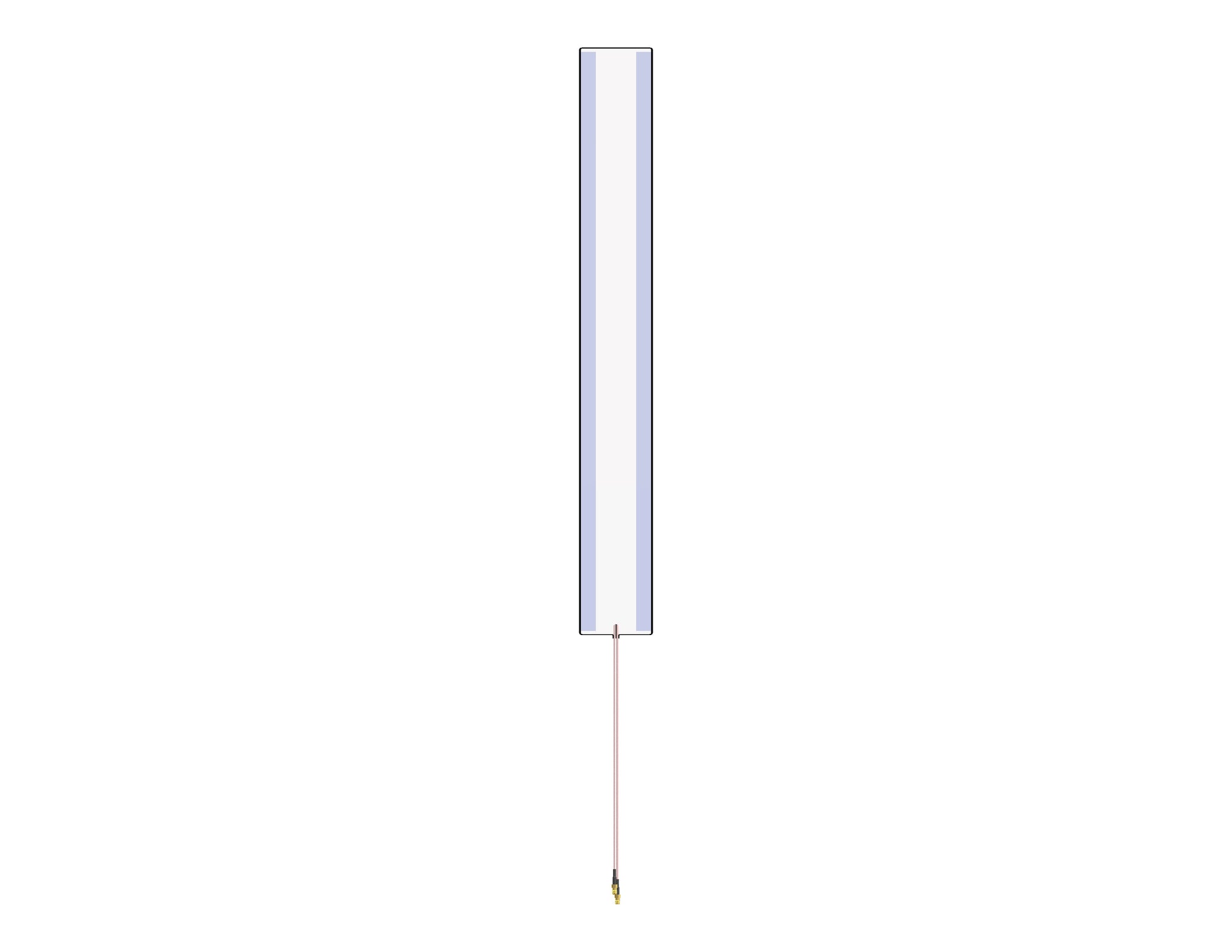

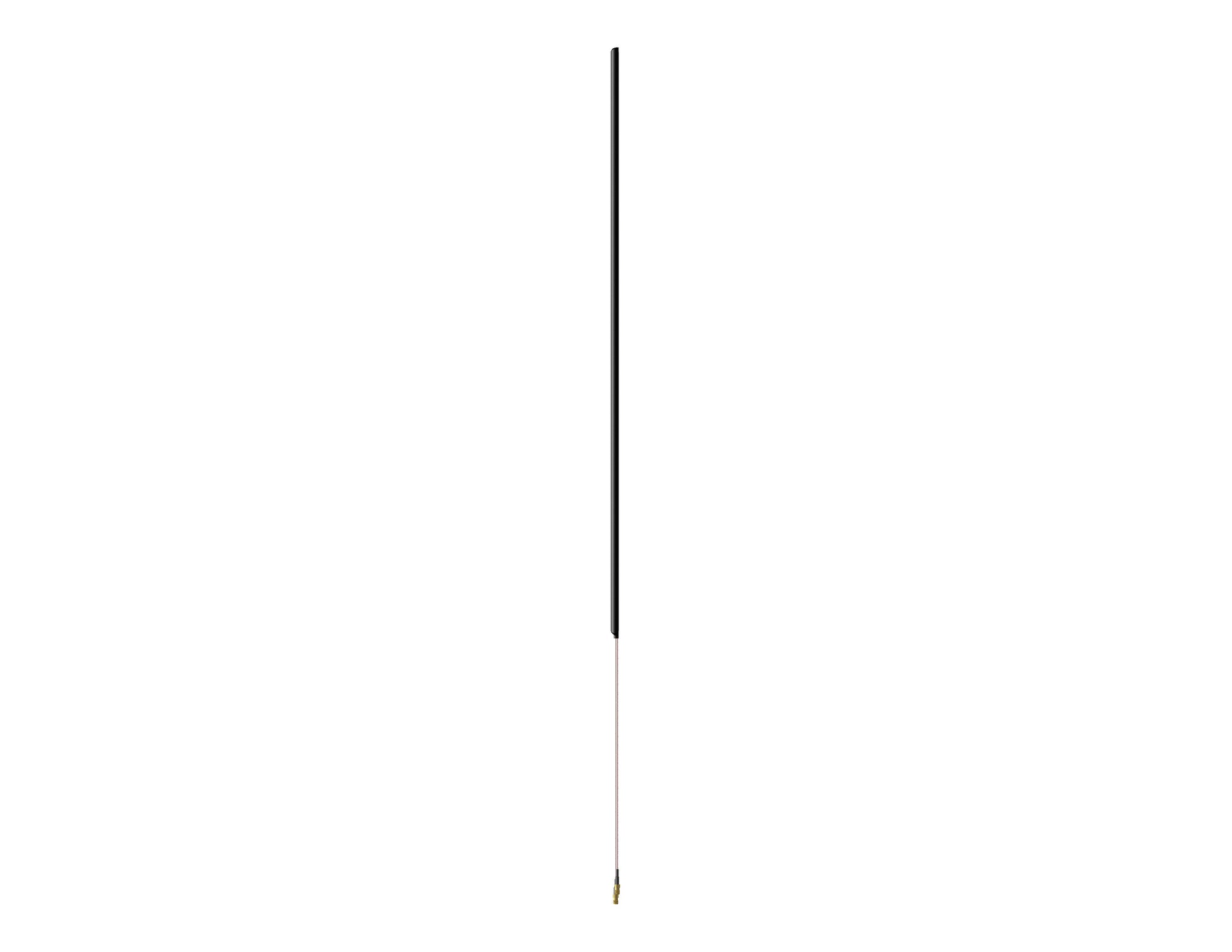

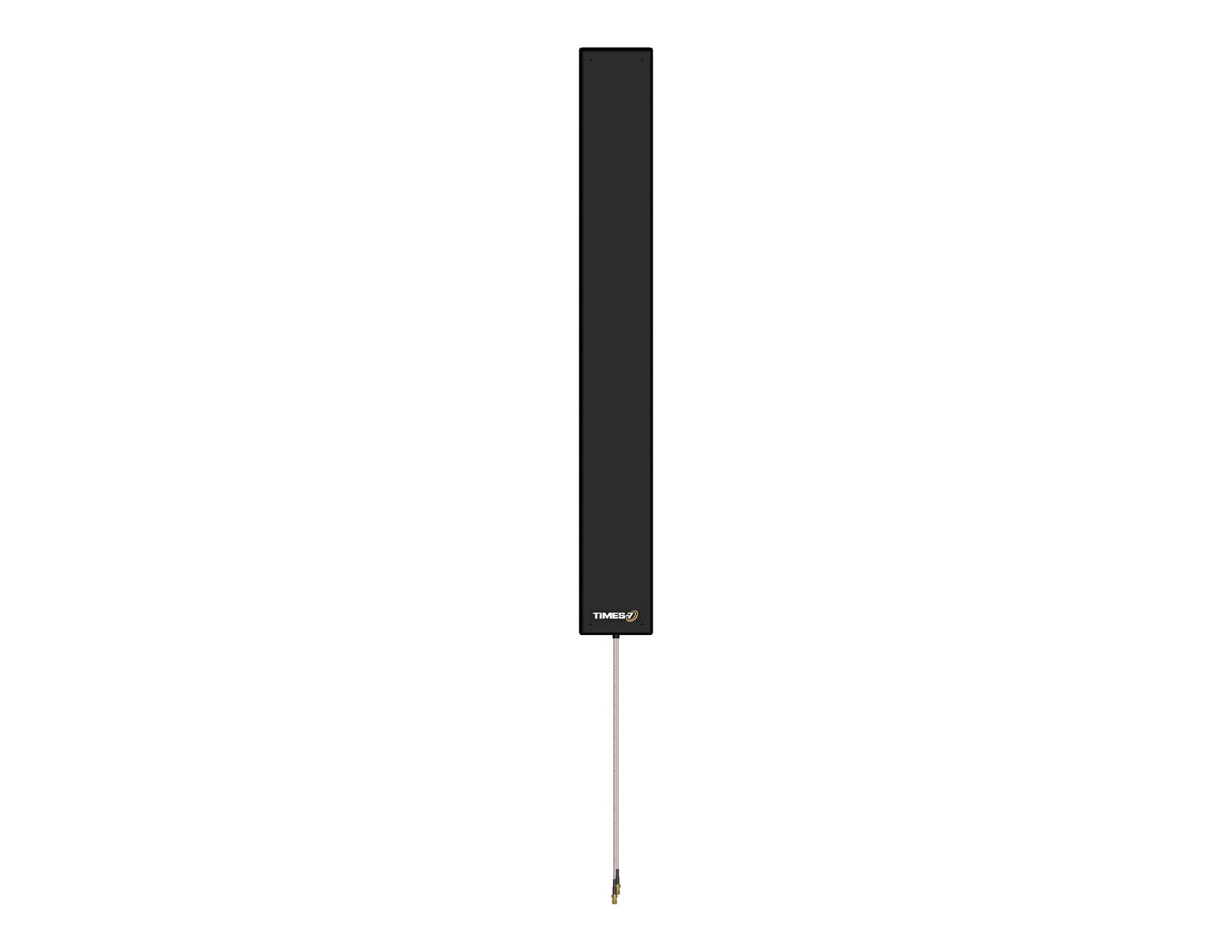

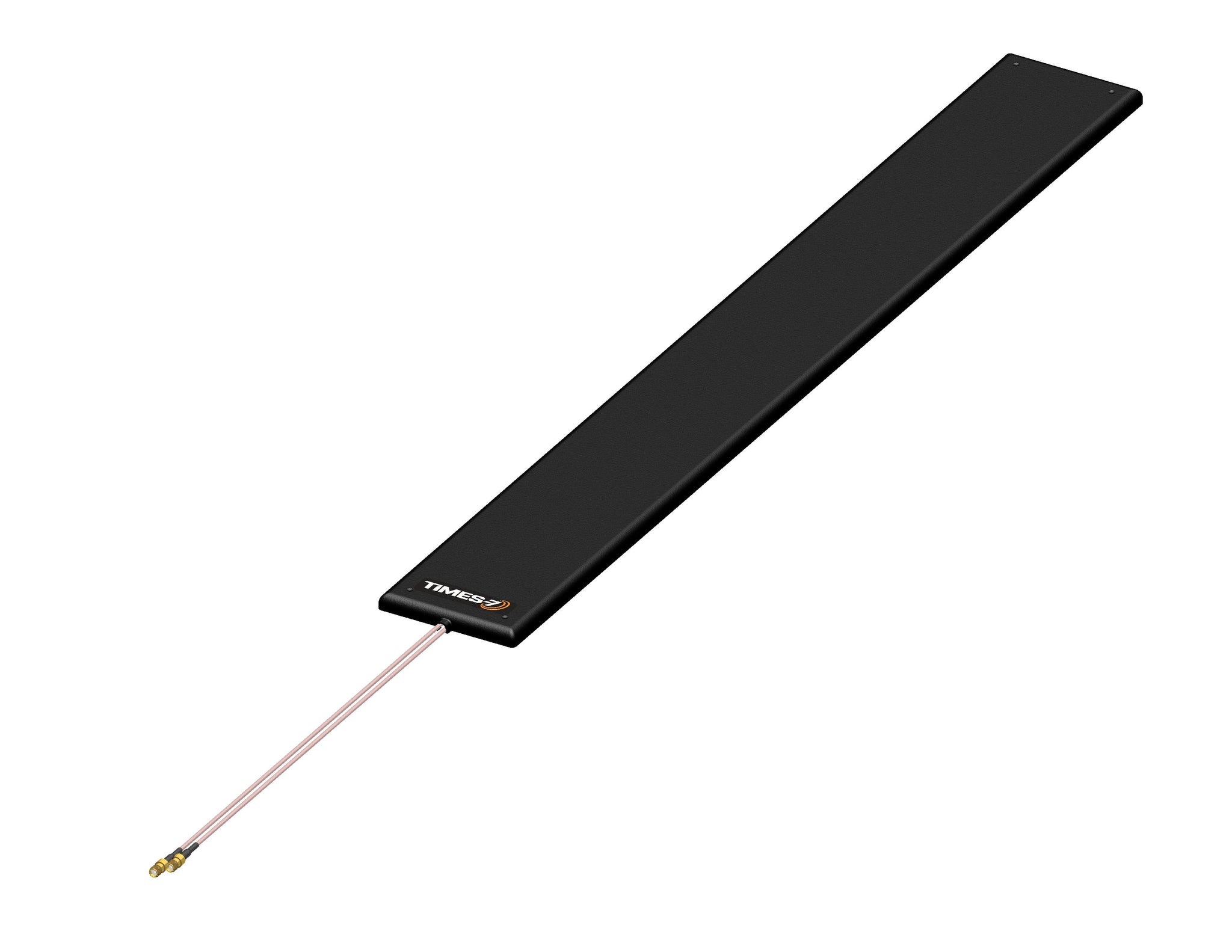

The SlimLine A8065 Combo is a high performing and aesthetically pleasing Doorway Portal Application with absolutely no compromise on spatial dimensions offering a unique 360° reading coverage. To achieve the best and densest reading range, the Times-7 SlimLine A8065 Combo is the first Doorway Portal Application in the UHF RFID market to combine three different polarizations: Vertical linear and Horizontal linear mounted on the sides and Dual linear mounted on top of a door frame. That way the A8065 Combo guarantees a reliable 360° reading coverage regardless of the tag orientation. The ultra-low profile (8 mm / 0.3”) and slim dimensions of each antenna (86 mm / 3.4” wide) gives it a snug fit into door frames. It allows more space, which is particularly important for high foot traffic areas. Each A8065 (D, V, H) is also individually available. Please, refer to the Part no. on this datasheet.
One-Stop Doorway Solution:
The A8065 combo antenna consists of three different antennas viz., the A8065V, A8065H and A8065D. Two antennas that go on either side of the doorway are A8065V and A8065H, vertical linearly polarized and horizontal linearly polarized. In addition to the side antennas, the combo bears a single overhead antenna (A8065D) which is dual linearly polarized. The A8065D has two ports and emit RF signals that are both horizontal linearly and vertical linearly polarized.
The A8065 combo can read tags in any orientation and in any plane. This configuration is suitable for item level tracking in retail, conference attendees tracking, patient or asset tracking in hospital hallways, etc.
|Manufacturer Part Number||A8065-71881|
|Antenna Category||RFID (865-928 MHz)|
|Gain||Horizontal: 3dBi; Vertical: 4dBi|
|Horizontal/Azimuth Beamwidth||25 degrees in XZ plane; 140 degrees in YZ plane|
|Vertical/Elevation Beamwidth||40 degrees in XZ; 110 degrees in YZ|
|Connector Type||Connector - Side Entry|
|Operating Temp (celsius)||-20° to +55°C / -4° to +131°F|
|Material||Fire retardant ABS|
|Mount Style||Integrated mounting guides / Adhesive foam strip|
