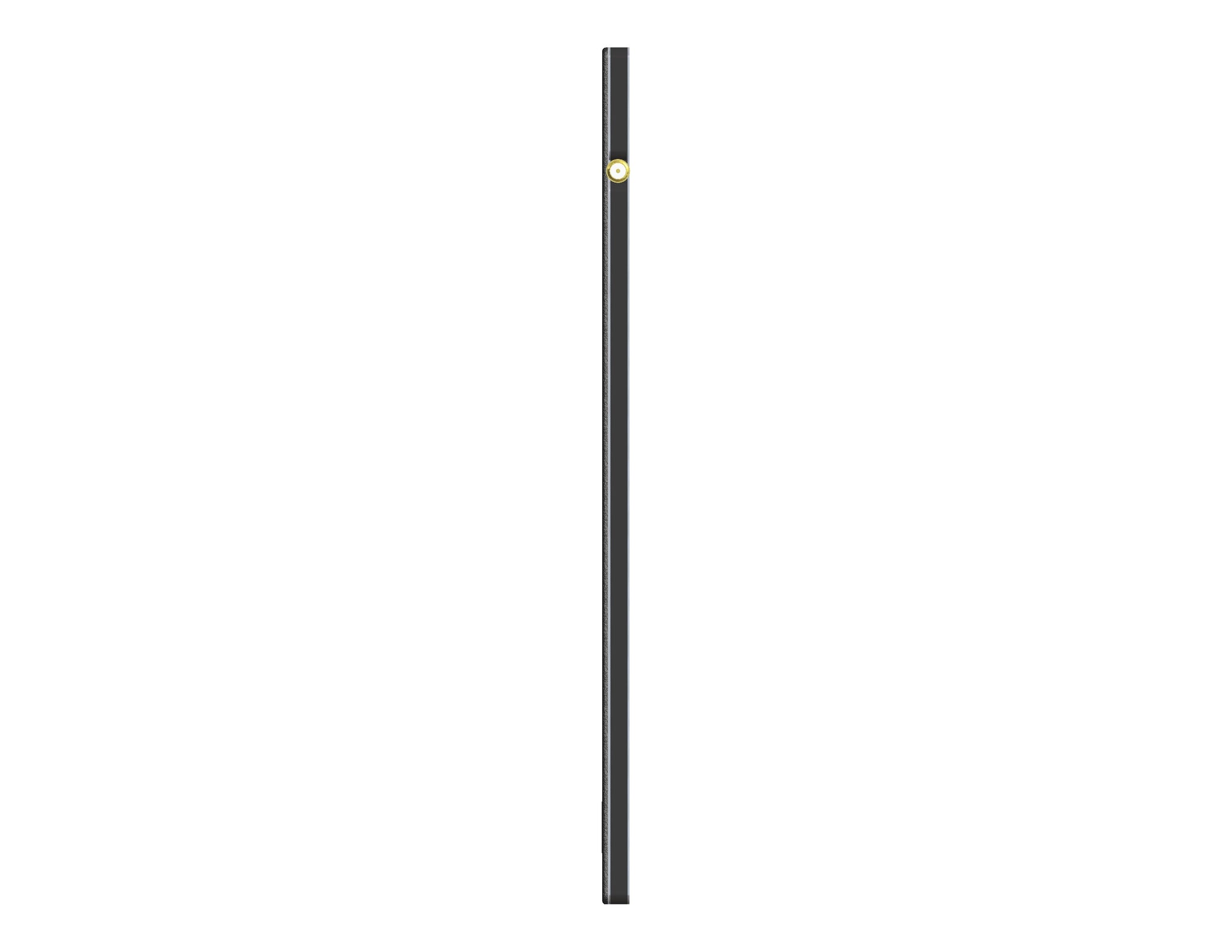

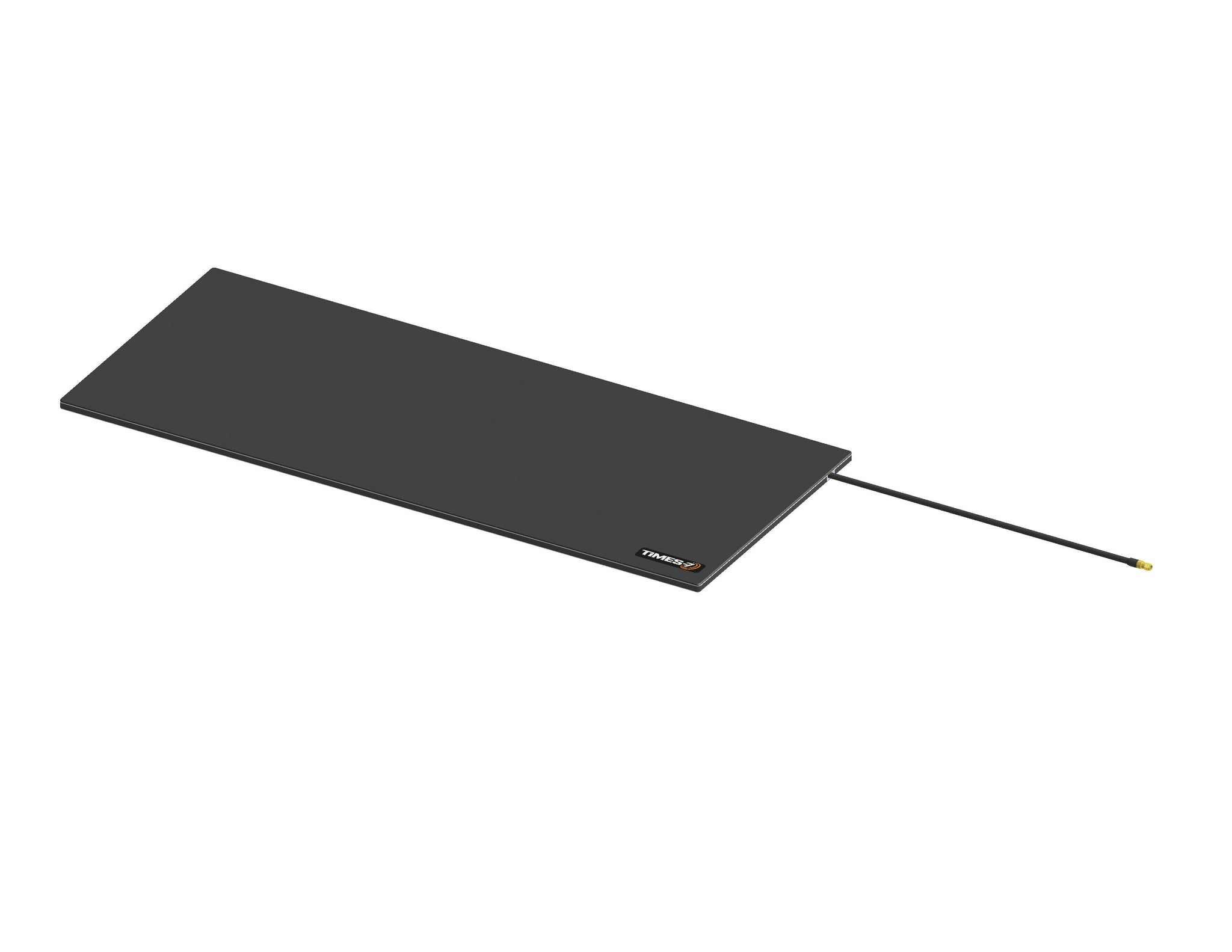

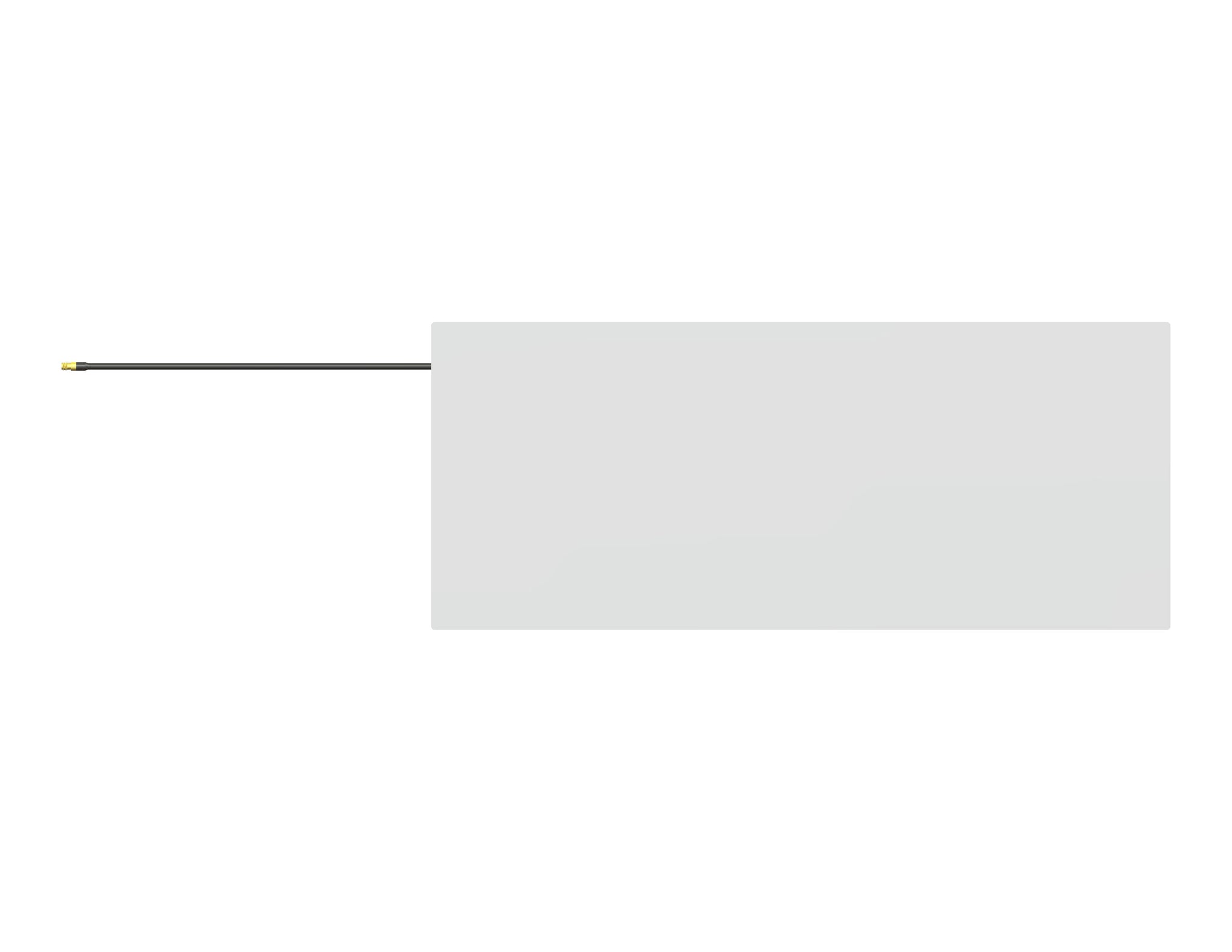

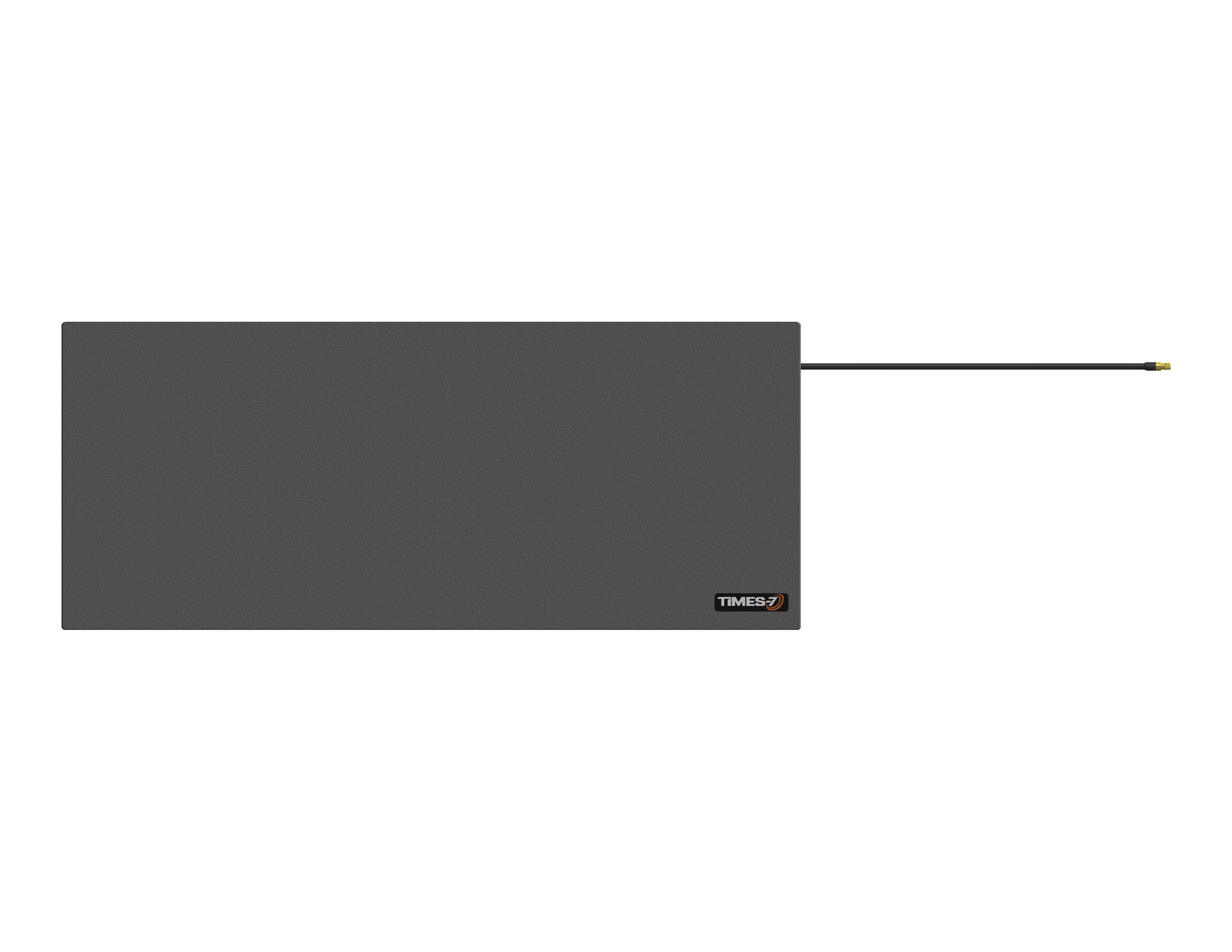

A7060-71303: ETSI SlimLine Ultra Low Profile UHF Antenna with 2m SMA to RPTNC Connector
A7060-71303
Shipping calculated at checkout.
A7060-71303: ETSI SlimLine Ultra Low Profile UHF Antenna with 2m SMA to RPTNC Connector
More InfoDocumentsSpecifications ReviewsA7060-71303: ETSI SlimLine Ultra Low Profile UHF Antenna with 2m SMA to RPTNC Connector
Features:
- Frequency Range: 864-869 Mhz / 902 - 928 Mhz
- Polarization: Linear
- Gain: 9 dBi
- Connector: SMA to RPTNC
More Information
Specifications
| SKU | A706071303 |
|---|---|
| Manufacturer Part Number | A7060-71303 |
| Manufacturer | Times-7 |
| Working Frequency | 865-868 MHz |
| Antenna Category | RFID (865-928 MHz) |
| Bands | Multi |
| IP Rating | IP65 |
| Polarity | Linear |
| Gain | 9 dBi |
| Horizontal/Azimuth Beamwidth | 80 |
| Vertical/Elevation Beamwidth | 45 |
| Connector Type | Connector - Side Flying Lead w/ SMA Female |
| Connector 1 | SMA-Female |
| Cable Length (inches) | 12 |
| Cable Length (mm) | 300 |
| Height/Length (inches) | 23.6 |
| Height/Length (mm) | 600 |
| Operating Temp (celsius) | -20 to 55 |
| Thickness/Diameter (inches) | 9.8 |
| Thickness/Diameter (mm) | 250 |
| Width (inches) | 0.3 |
| Width (mm) | 8 |
| Weight (lbs) | 2.6 |
| Weight (grams) | 1200 |
| Material | Fire Retardant Kydex |
| Product Condition | New |
