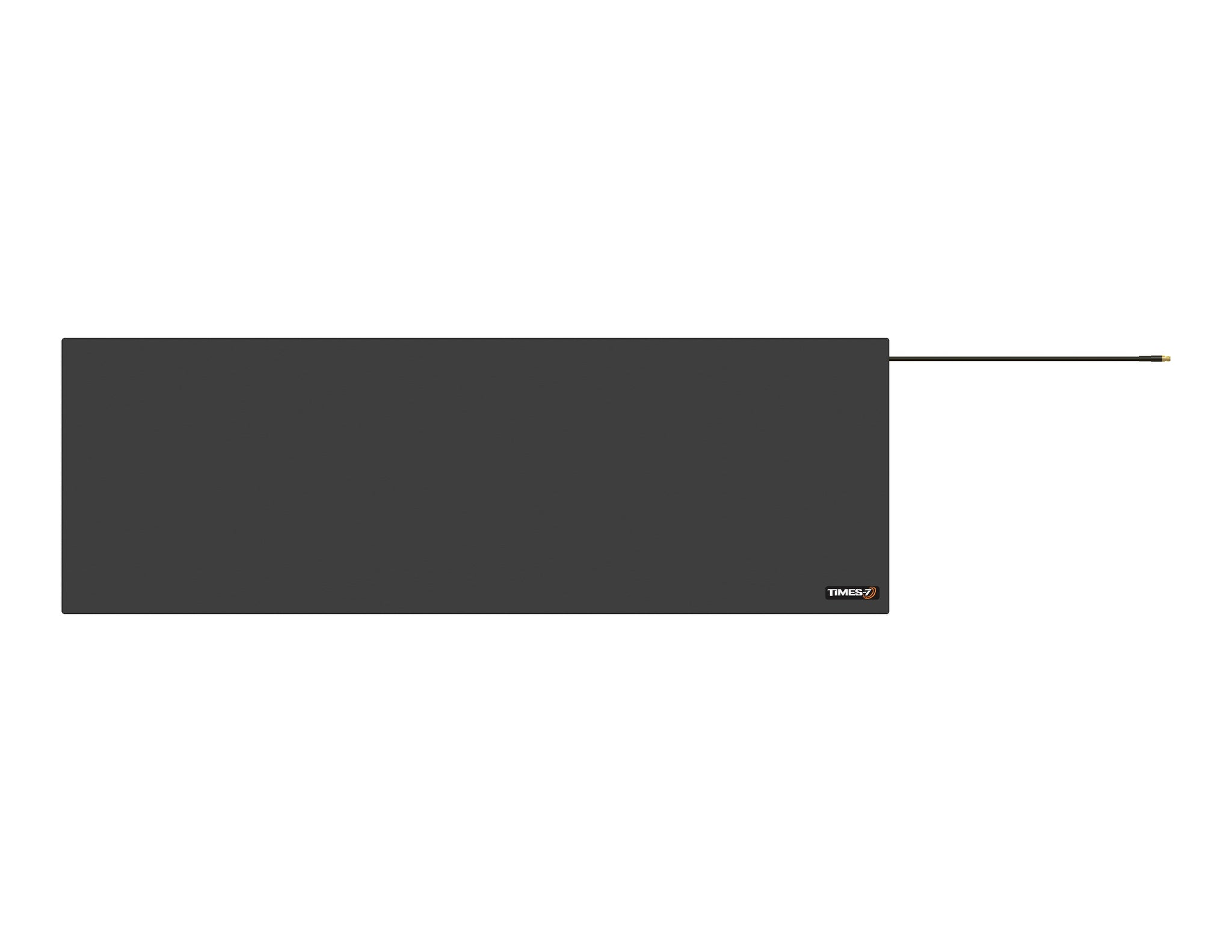

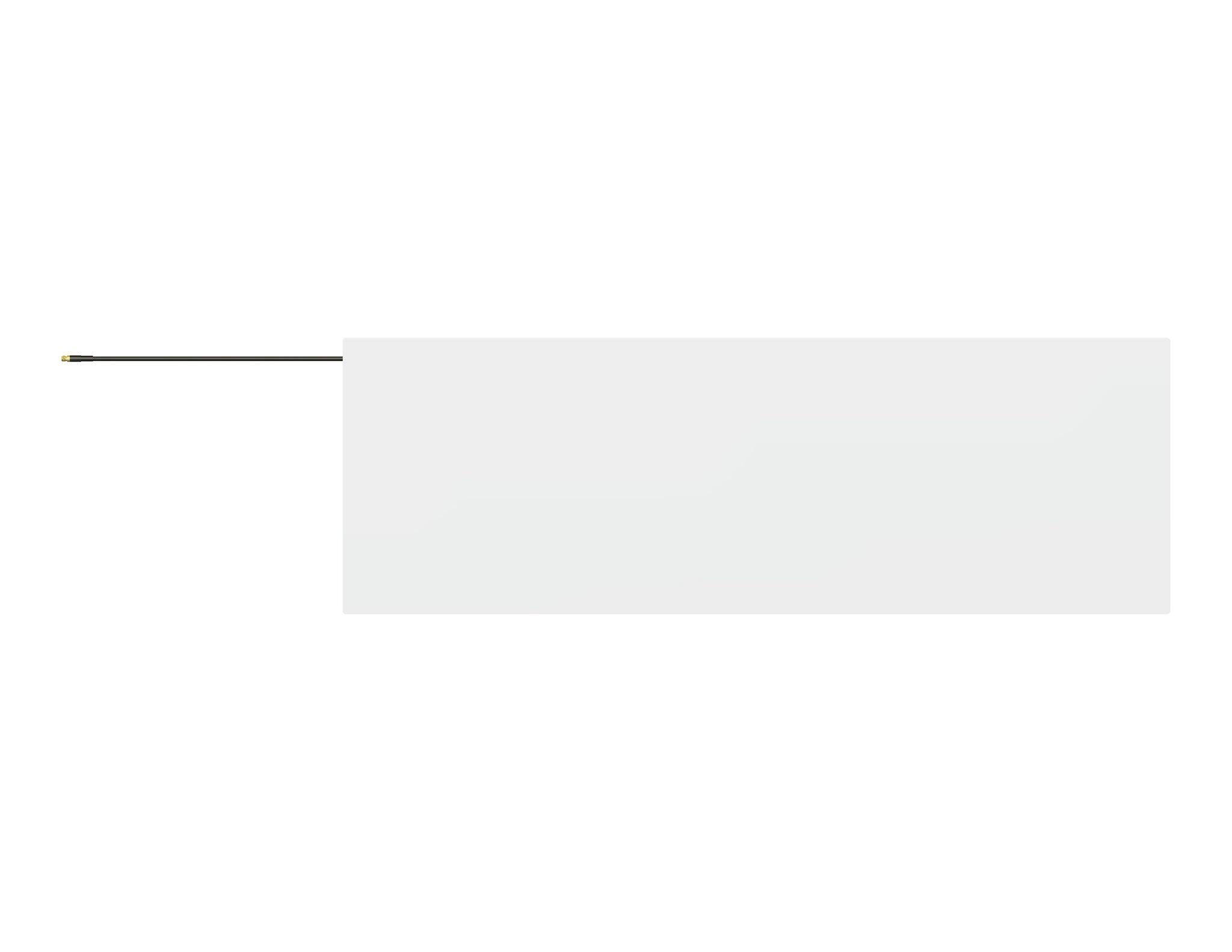

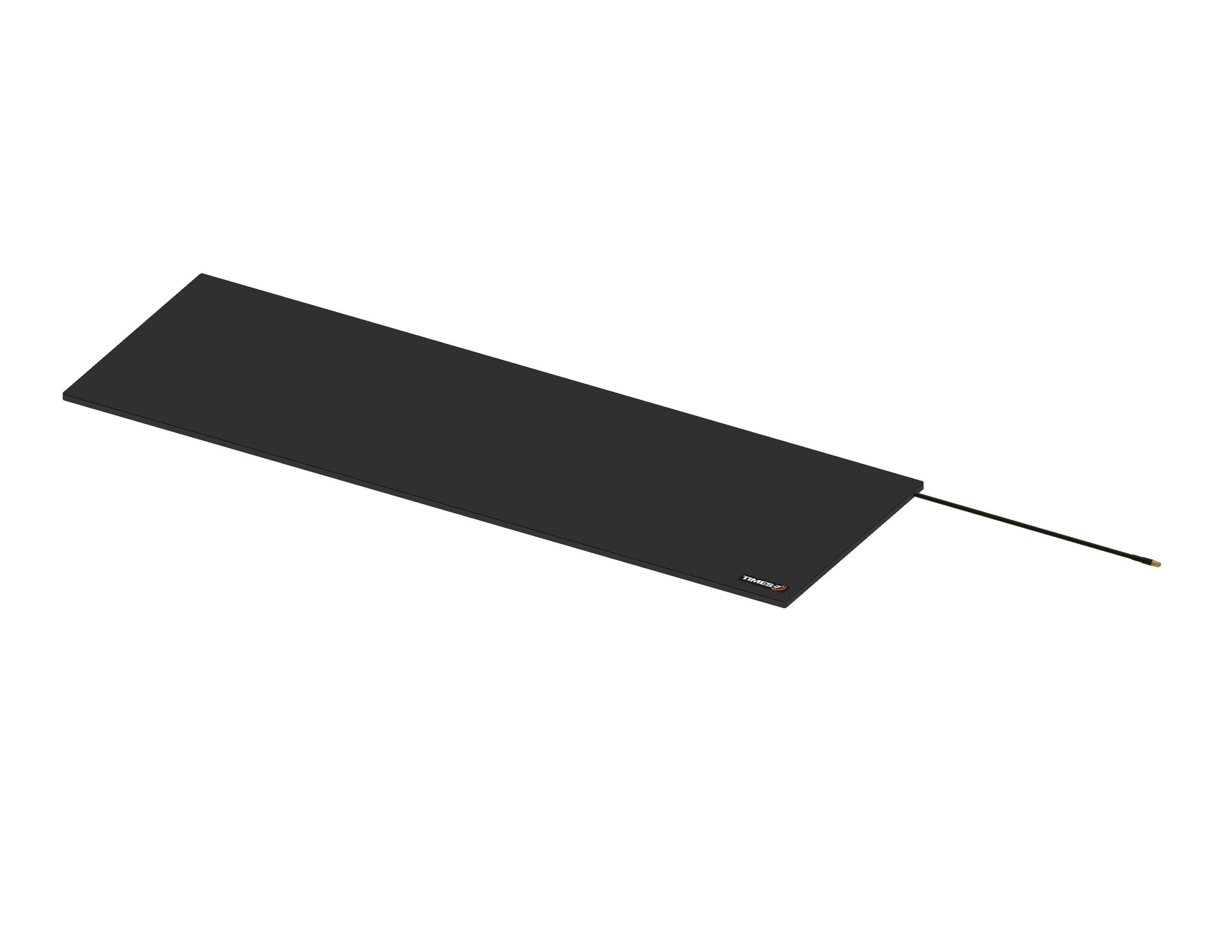

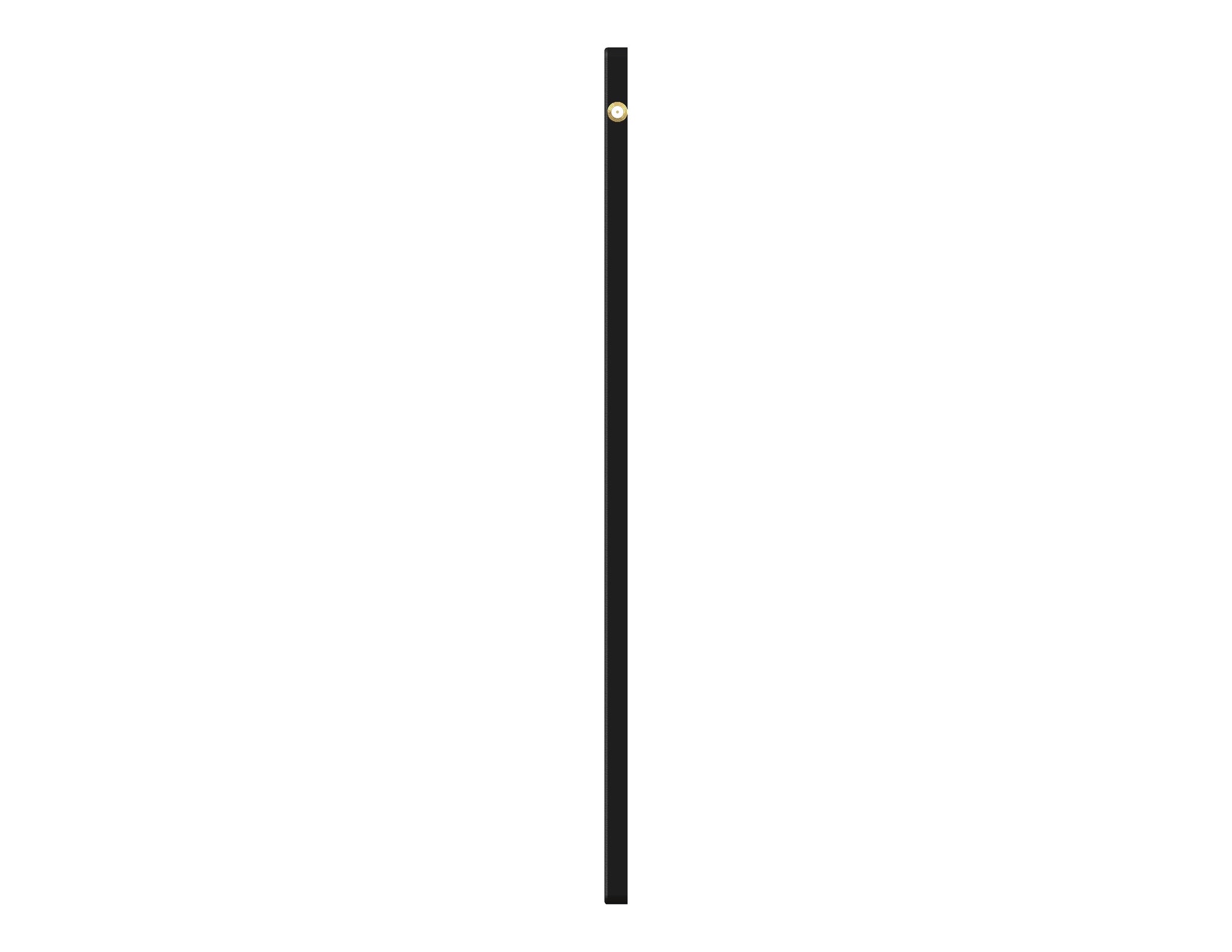

A6590L-71211: FCC SlimLine Ultra Low Profile UHF Antenna with 2m SMA to RPTNC Connector

  • $340.00
    Unit price per

A6590L-71211


0 in stock. Subject to factory lead time
Factory lead time:  Ships in 2-4 Weeks

A6590L-71211: FCC SlimLine Ultra Low Profile UHF Antenna with 2m SMA to RPTNC Connector

More InfoSpecifications Reviews

A6590L-71211: FCC SlimLine Ultra Low Profile UHF Antenna with 2m SMA to RPTNC Connector

Features:

  • Frequency Range: 864-869 Mhz / 902 - 928 Mhz
  • Polarization: Linear
  • Gain: 10 dBi
  • Connector: SMA to RPTNC


More Information

A6590L-71211: FCC SlimLine Ultra Low Profile UHF Antenna with 2m SMA to RPTNC Connector from Times-7 is ideal for warehousing operations. This antenna has an environmental rating of IP65 along with fire retardant Kydex material. Along with its versatile and slim design, the A6590L provides high performance in industrial RFID applications.


Specifications

SKU A6590L71211
Manufacturer Part Number A6590L-71211
Manufacturer Times-7
Product Condition New
Antenna Category RFID (865-928 MHz)
Bands Multi
IP Rating IP65
Polarity Linear
Gain 10 dBi
Horizontal/Azimuth Beamwidth 72
Vertical/Elevation Beamwidth 23
Connector Type Connector - Side Entry
Connector 1 SMA-Female
Connector 2 RP TNC-Male
Cable Length (inches) 78
Cable Length (mm) 2000
Height/Length (inches) 36
Height/Length (mm) 910
Operating Temp (celsius) -20 to 55
Thickness/Diameter (inches) 12
Thickness/Diameter (mm) 300
Width (inches) 0.3
Width (mm) 8
Weight (lbs) 2.6
Weight (grams) 1200
Material Fire Retardant Kydex
Color Black
