A6034S-71003 15x15 inch Circularly Polarized SlimLine RFID Antenna - FCC
A6034S-71003
A6034S-71003 15x15 inch Circularly Polarized SlimLine RFID Antenna - FCC

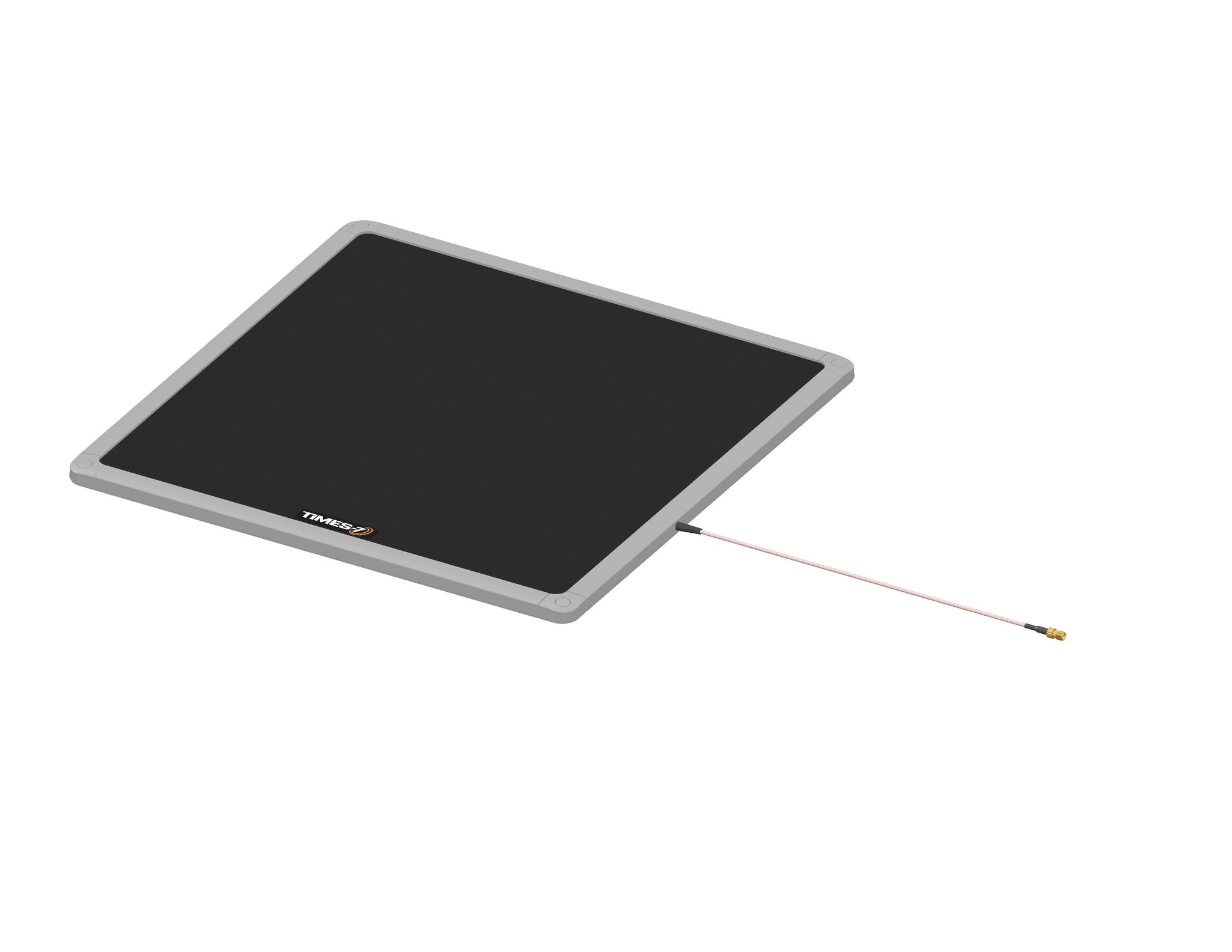

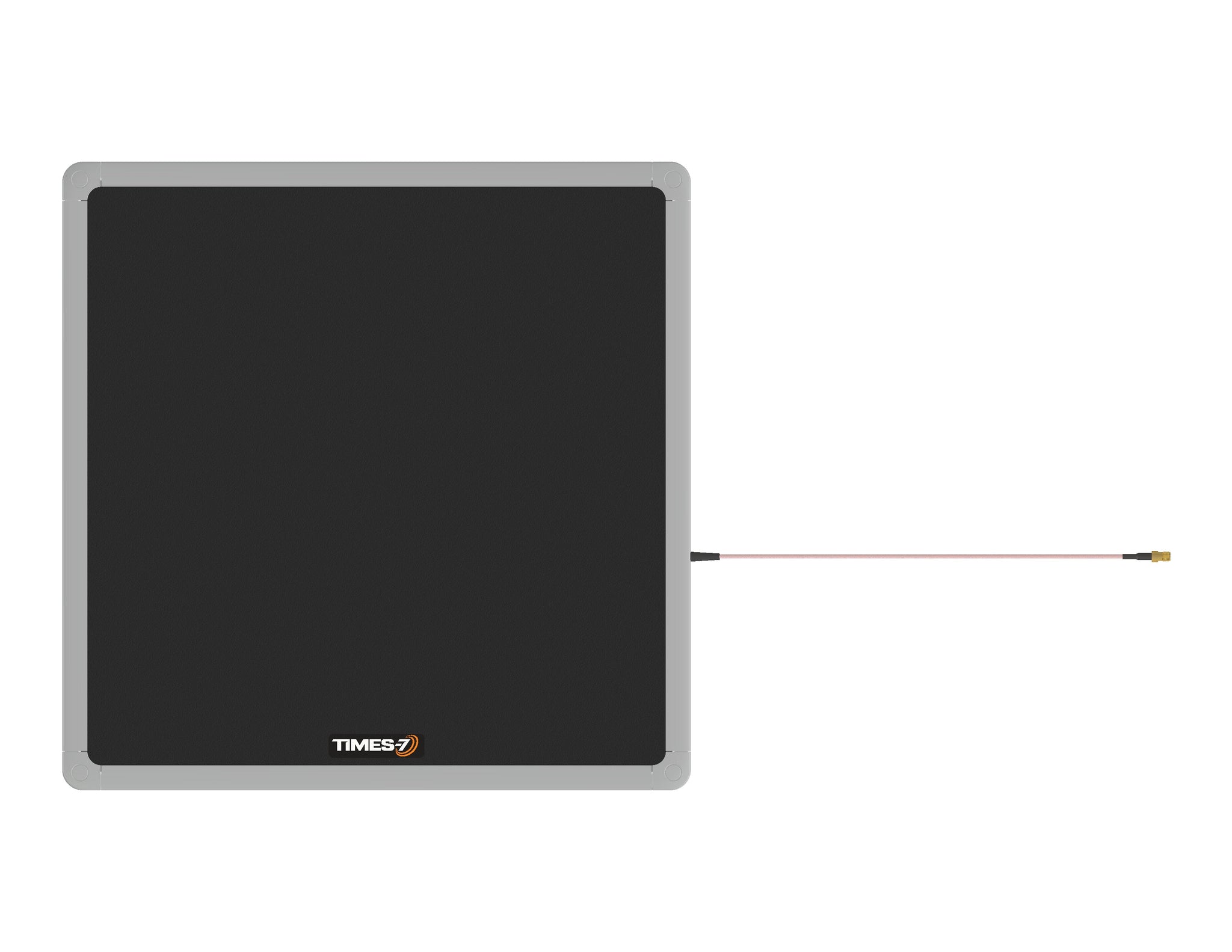

More InfoDocumentsSpecifications ReviewsThe A6034S-71002 is a Slim Line Circularly Polarized RFID Antenna operating in the FCC range 902-928 Mhz. It offers 9 dBic gain in a square, mid-size, low profile package: 15 x 15 x 0.5 inch, and includes a 12 inch Pigtail with SMA-Female Connector.
More Information
Circularly Polarized RFID Antenna, 902-928 Mhz, 9 dBic, 15 x 15 x 0.5 inch, 12 inch Pigtail with SMA-Female Connector - FCC
The A6034S is an ultra-low profile high performance circular polarised flat panel antenna. The antenna utilizes a narrow even beam with a read range of up to 29 feet and an extremely accurate read zone. The rugged design of the A6034S makes it perfect for a range of indoor or outdoor RFID deployments, including industrial applications as well as those where design aesthetics are a factor.
Documents
We Also Recommend
In Stock
RF MAX - RFID POWER MAPPER
Handheld 865-928 MHz RFID Antenna Power Field Mapper for FCC & ETSI
$299.00
$299.00
View Details
In Stock
EZ-M9-COMBO
EZM9: 9 Inch Bracket - Fully Articulating Die Cast Wall or Mast Mount for 2 or 4 Stud RFID Panel Antennas.
$99.00
$99.00
View Details
In Stock
71633
RFMAX-71633 RFID Antenna Mounting Plate for15x15 A6034S
$96.00
$96.00
View Details
In Stock
HDMNT-100MM
HDMNT-100MM: Heavy Duty Indoor Outdoor Mounting Bracket for Antenna, Computer Monitor or TV. 100mm VESA
$64.00
$64.00
View Details
In Stock
R9029-XL-12SSF
R9029-XL-12SSF: 902-928 MHz Extra Large, 30x12 inch Circularly Polarized RFID Antenna - FCC
$305.00
$305.00
View Details
Specifications
| SKU | A6034S71003 |
|---|---|
| Manufacturer Part Number | A6034S-71003 |
| Manufacturer | Times-7 |
| Product Condition | New |
| Antenna Category | RFID 902-928 MHZ FCC |
| Bands | Single |
| IP Rating | 65 |
| Polarity | Circular |
| Gain | 9 |
| Horizontal/Azimuth Beamwidth | 50 |
| Vertical/Elevation Beamwidth | 50 |
| Connector Type | Cable - Side Entry |
| Connector 1 | SMA-Female |
| Cable Type | RG-316 |
| Cable Length (inches) | 12 |
| Cable Length (mm) | 305 |
| Height/Length (inches) | 15.5 |
| Height/Length (mm) | 394 |
| Operating Temp (celsius) | -30 to +70 |
| Thickness/Diameter (inches) | 0.5 |
| Thickness/Diameter (mm) | 12 |
| Width (inches) | 15.5 |
| Width (mm) | 394 |
| Weight (lbs) | 3.8 |
| Weight (grams) | 1750 |
| Material | Kydex |
| Color | Black |
| Mount Style | Flush |
| Cable Length | 15 Feet |
