A6034-70809 30x12 inch Circularly Polarized SlimLine RFID Antenna - FCC
A6034-70809
A6034-70809 30x12 inch Circularly Polarized SlimLine RFID Antenna - FCC

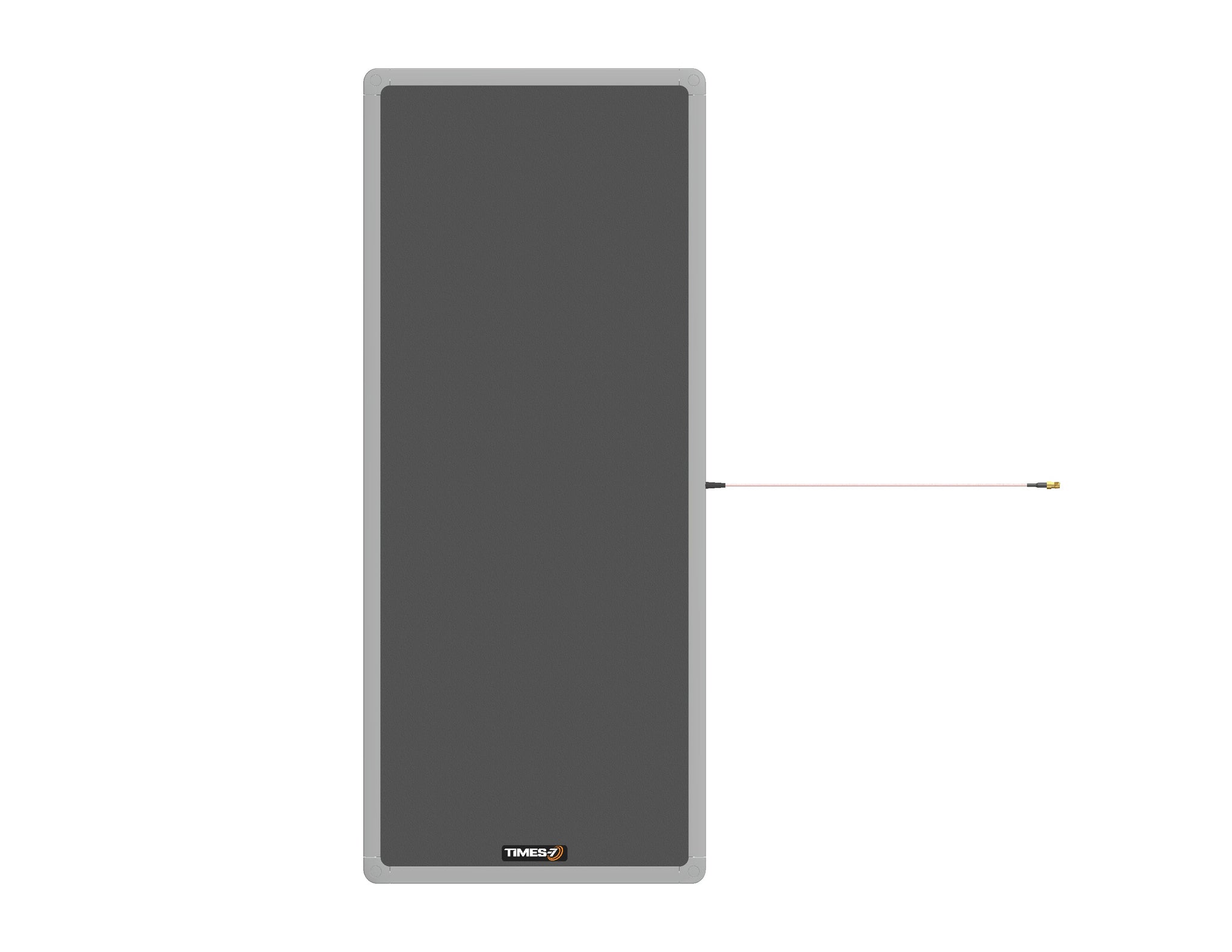

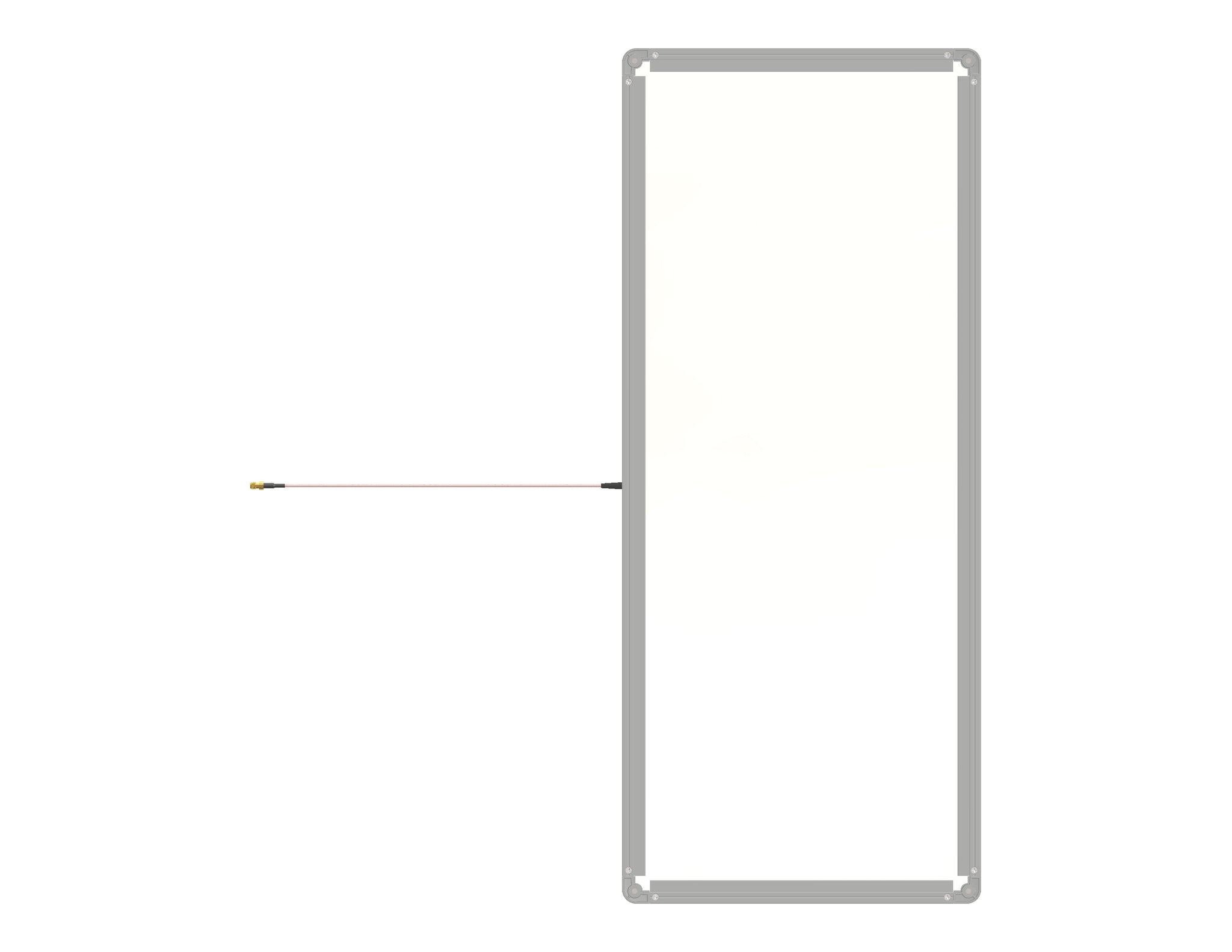

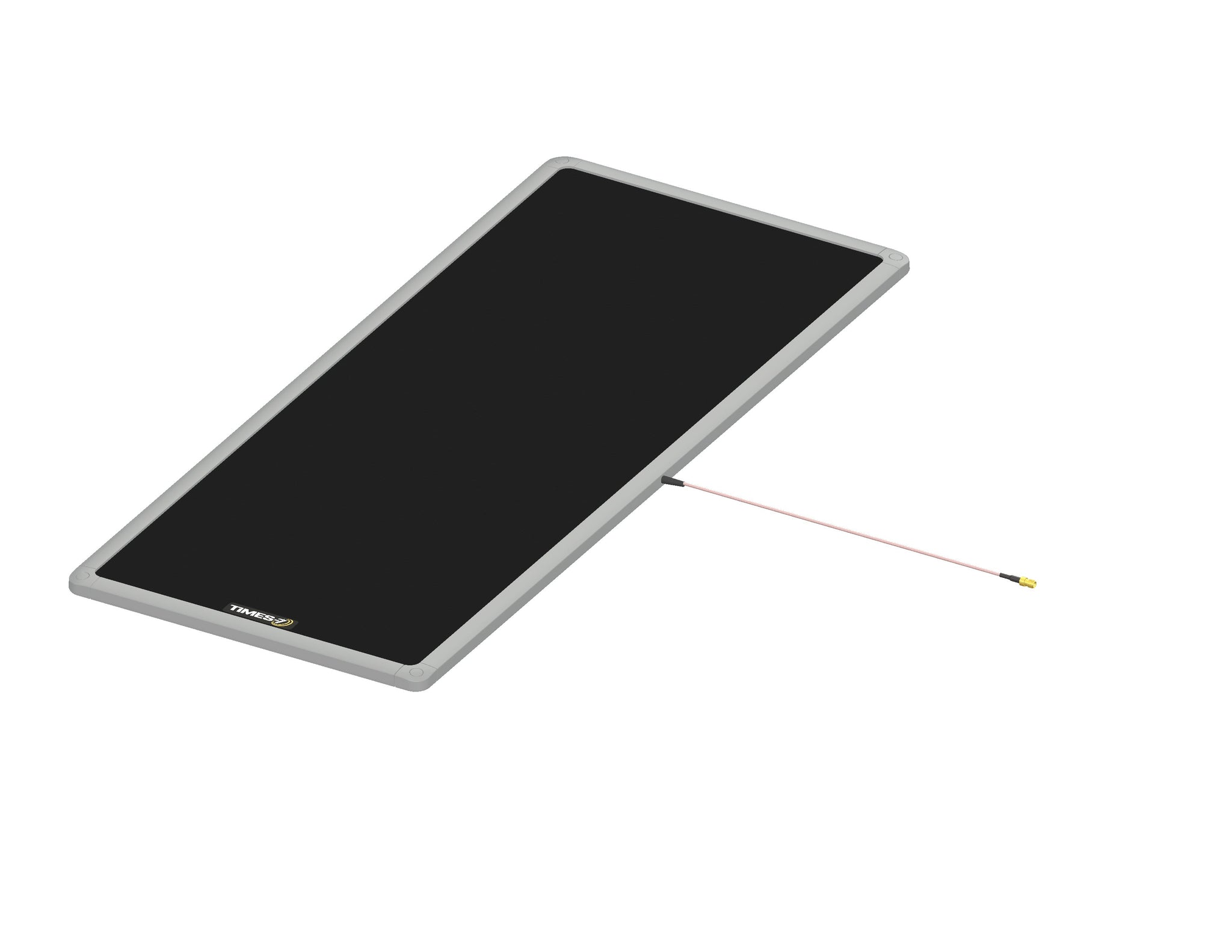

More InfoDocumentsSpecifications ReviewsThe A6034-70809 is a Slim Line Circularly Polarized RFID Antenna operating in the FCC range:902-928 Mhz. It offers 9 dBic gain in an oversize, low profile package: 30 x 12.5 x 0.5 inch, and includes a 12 inch Pigtail with SMA-Female Connector. Also known as A6034-71800 / A603471800

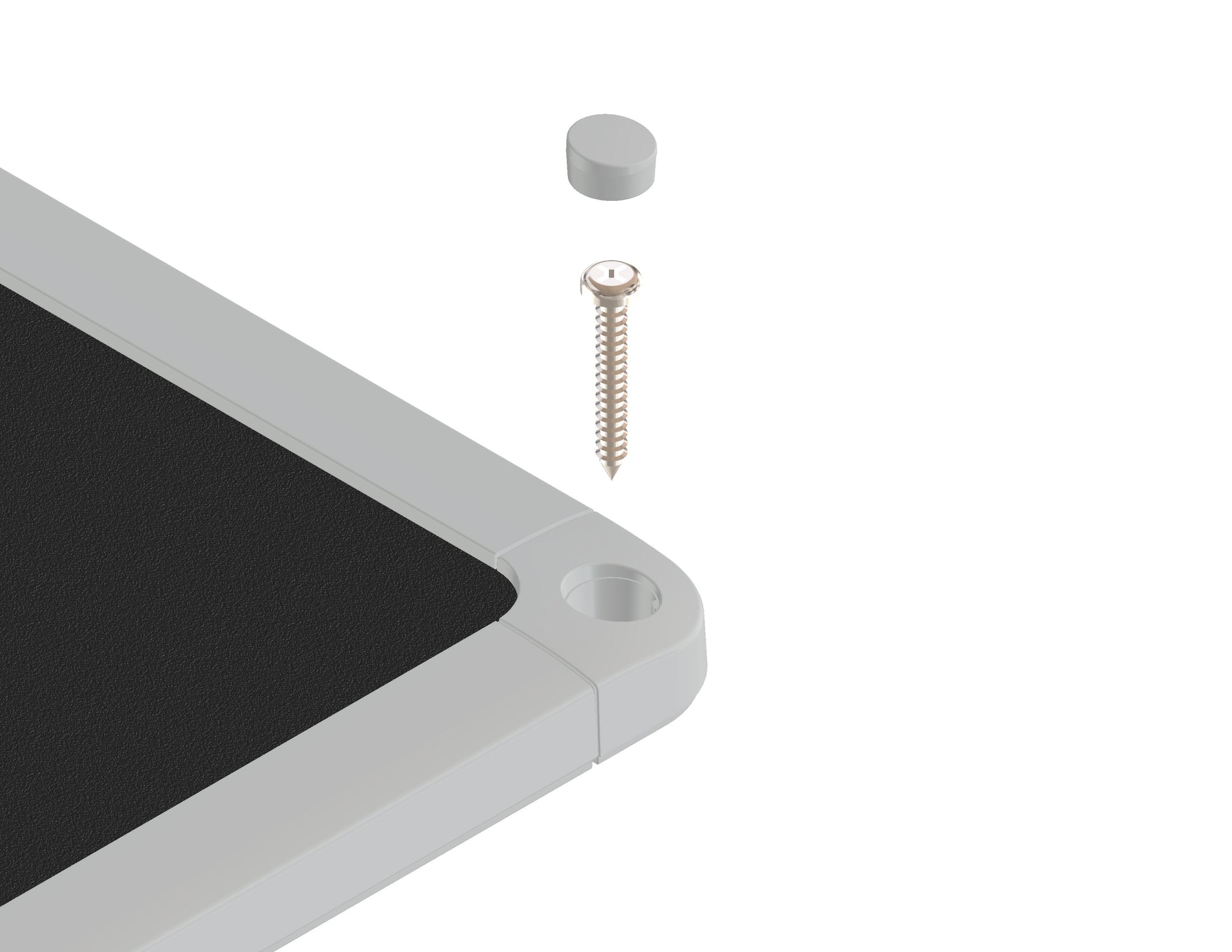

Mounting hardware & cable - sold seperately (see below).
- Mounting Plate # 71634
- Mounting Bracket # EZM9-Combo
- Cable Extension # PT195-xxx-RTM-SSM
More Information

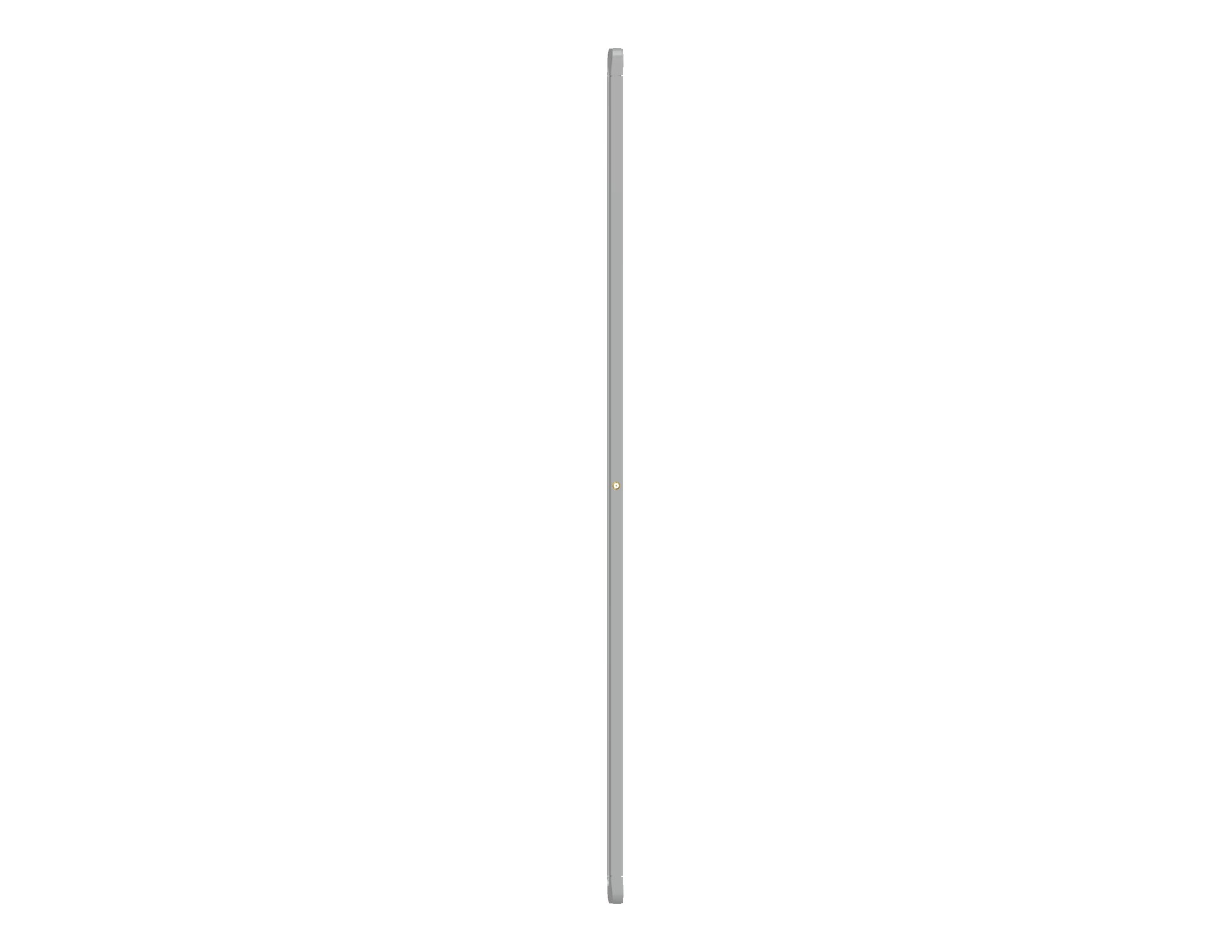

The SlimLine A6034 is an ultra-low profile circularly polarized flat panel high gain RFID antenna. With a total thickness of only 1/2 inch, it can do the job of two smaller antennas and can easily be wall or ceiling mounted, or positioned under a warehouse shipping / receiving table. The A6034 is perfect for incorporating into loading dock doors or portals. Applications include RFID installations requiring a sleek, high performance antenna with a long read range (up to 29 feet), and space constrained or environments where design is a factor. The antennas rugged design is suitable for industrial applications. Also known as A6034-71800 / A603471800
Documents
Specifications
SKU | A603471800 |
---|---|
Manufacturer Part Number | A6034-70809 |
Manufacturer | Times-7 |
Product Condition | New |
Antenna Category | RFID (865-928 MHz) |
Bands | Single |
IP Rating | 65 |
Polarity | Circular |
Gain | 9 |
Horizontal/Azimuth Beamwidth | 81 |
Vertical/Elevation Beamwidth | 25 |
Connector Type | Cable - Side Entry |
Connector 1 | SMA-Female |
Cable Type | RG-316 |
Cable Length (inches) | 12 |
Cable Length (mm) | 305 |
Height/Length (inches) | 29.4 |
Height/Length (mm) | 747 |
Operating Temp (celsius) | -30 to +70 |
Thickness/Diameter (inches) | 0.5 |
Thickness/Diameter (mm) | 12 |
Width (inches) | 12.4 |
Width (mm) | 314 |
Weight (lbs) | 4.8 |
Weight (grams) | 2200 |
Material | Kydex |
Color | Black |
Mount Style | Flush |
Cable Length | 15 Feet |
