A6031-70804 11x8.5 inch Circularly Polarized SlimLine RFID Antenna - ETSI

  • $165.00
    Unit price per

A6031-70804


20 Can ship immediately
Factory lead time:  Ships in 2-4 Weeks

A6031-70804 11x8.5 inch Circularly Polarized SlimLine RFID Antenna - ETSI

More InfoDocumentsSpecifications Reviews

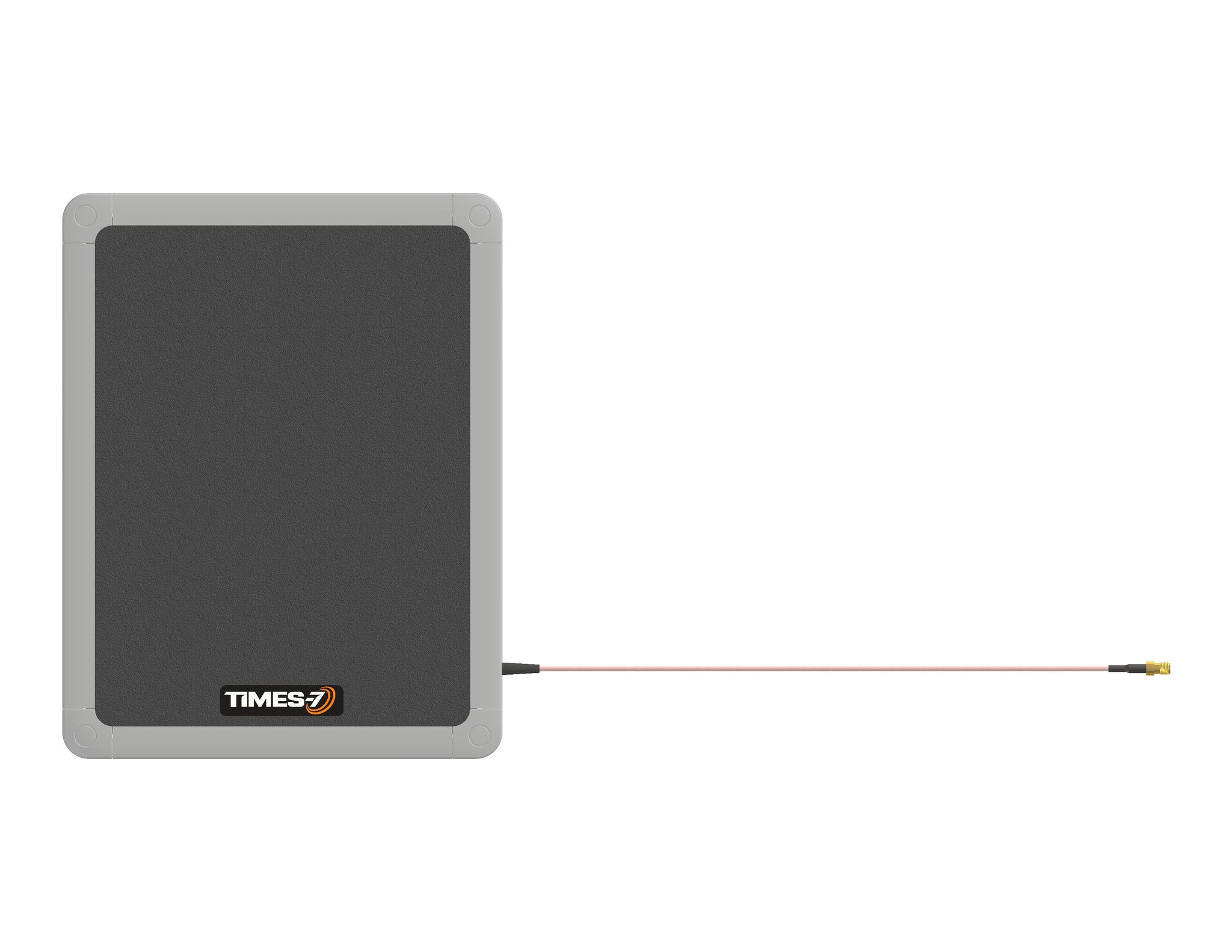

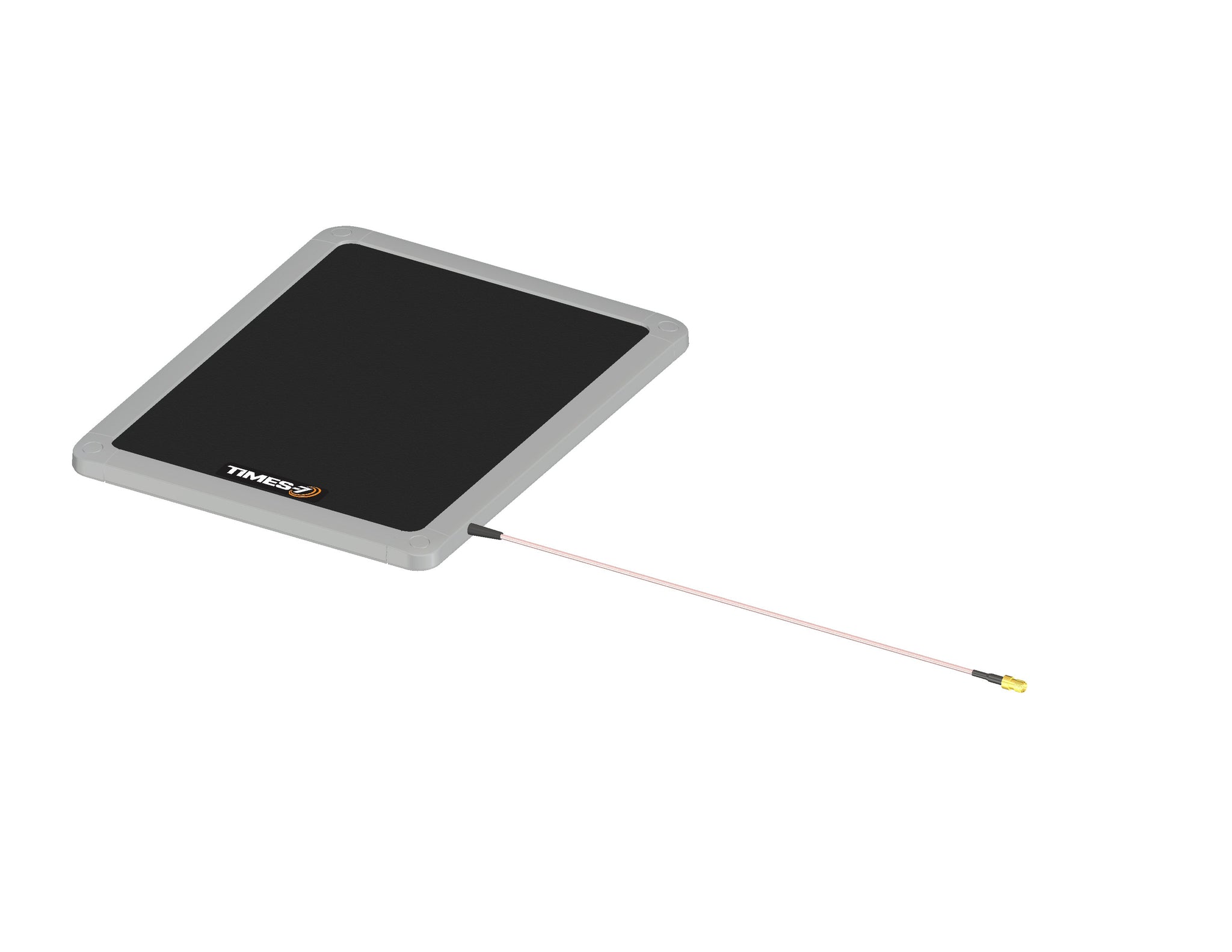

The A6031-70804 is a Slim Line Circularly Polarized RFID Antenna operating in the ETSI range: 864-869 Mhz. It offers 4 dBic gain in a small, low profile size: 11 x 8.5 x 0.5 inch and includes a 12 inch Pigtail with SMA-Female Connector


More Information

The SlimLine A6031 is an ultra-low profile circular polarised flat panel antenna for UHF RFID applications in customer facing or space constrained environments, where up to 4m (13ft) read range performance is required. Similar in size and weight to a Tablet PC, the A6031 can easily blend into an office or retail environment.

Applications include:

  • RFID applications requiring a sleek, small footprint antenna and up to 4m (13ft) read range
  • Space constrained or customer facing environments
  • Rugged design suitable for industrial applications

Documents


Specifications

SKU A603170804
Manufacturer Part Number A6031-70804
Manufacturer Times-7
Product Condition New
Antenna Category RFID (865-928 MHz)
Bands Single
IP Rating 65
Polarity Circular
Gain 4
Horizontal/Azimuth Beamwidth 80
Vertical/Elevation Beamwidth 80
Connector Type Cable - Side Entry
Connector 1 SMA-Female
Cable Type RG-316
Cable Length (inches) 12
Cable Length (mm) 305
Height/Length (inches) 10.8
Height/Length (mm) 275
Operating Temp (celsius) -30 to +70
Thickness/Diameter (inches) 0.5
Thickness/Diameter (mm) 12
Width (inches) 8.5
Width (mm) 214
Weight (lbs) 1.3
Weight (grams) 600
Material Kydex
Color Black
Mount Style Flush
Cable Length 15 Feet
