A6011-70731: Circular-Polarised Flat panel UHF RFID Antenna, 902-928 MHz (FCC) with SMA-Female connector on 300 mm lead

  • $3,425.00
    Unit price per

A6011-70731


0 in stock. Subject to factory lead time
Volume Price Breaks
Quantity: Unit Price:
6 $2,575.00
10 $2,270.00
Lead time:  Ships in 10-12 Weeks

A6011-70731: Circular-Polarised Flat panel UHF RFID Antenna, 902-928 MHz (FCC) with SMA-Female connector on 300 mm lead

A6011-70731: Circular-Polarised Flat panel UHF RFID Antenna, 902-928 MHz (FCC) with SMA-Female connector on 300 mm lead

More InfoDocumentsSpecifications Reviews

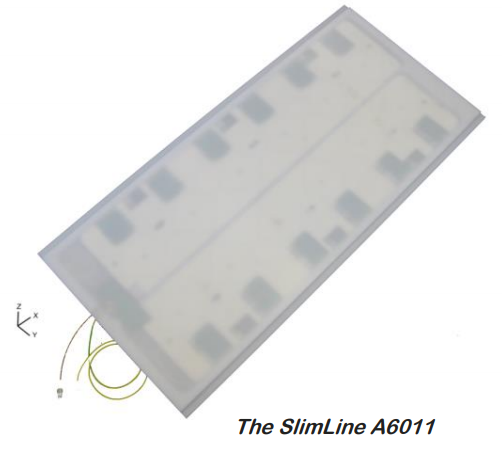

Part of the SlimLine range of airport antennas, the A6011 is a flat panel antenna array especially suited to conveyor belt-based UHF RFID applications.  Encased in an ultra-low profile UHMWPE (Ultra-High Molecular Weight Polyethylene) radome, the A6011 is designed for continuous 24x7 operation in environments where downtime is not an option.



More Information

Part of the SlimLine range of airport antennas, the A6011 is a flat panel antenna array especially suited to conveyor belt-based UHF RFID applications. Encased in an ultra-low profile UHMWPE (Ultra-High Molecular Weight Polyethylene) radome, the A6011 is designed for continuous 24x7 operation in environments where downtime is not an option. At just 12 mm / 0.5 in. thick, and designed for quick and easy installation, the A6011 is the ideal choice for airport baggage handling systems, or any conveyor belt-based application.


Documents


Specifications

SKU A601170731
Manufacturer Part Number A6011-70731
Manufacturer Times-7
Antenna Category RFID (865-928 MHz)
IP Rating IP54
Polarity Circular
Gain 11 dBic
Material 3 mm UHMWPE (Ultra-High Molecular Weight Polyethylene)
Mount Style Affixed directly onto conveyor frame (under conveyor belt)
Product Condition New
