A5060-71875 (FCC): SlimLine Circular Polarized UHF Antenna 902-928 MHz

  • $295.00
    Unit price per

A506071875


8 Can ship immediately
Lead time for qty above 8:  Ships in 2-4 Weeks

A5060-71875 (FCC): SlimLine Circular Polarized UHF Antenna 902-928 MHz

More InfoSpecifications Reviews

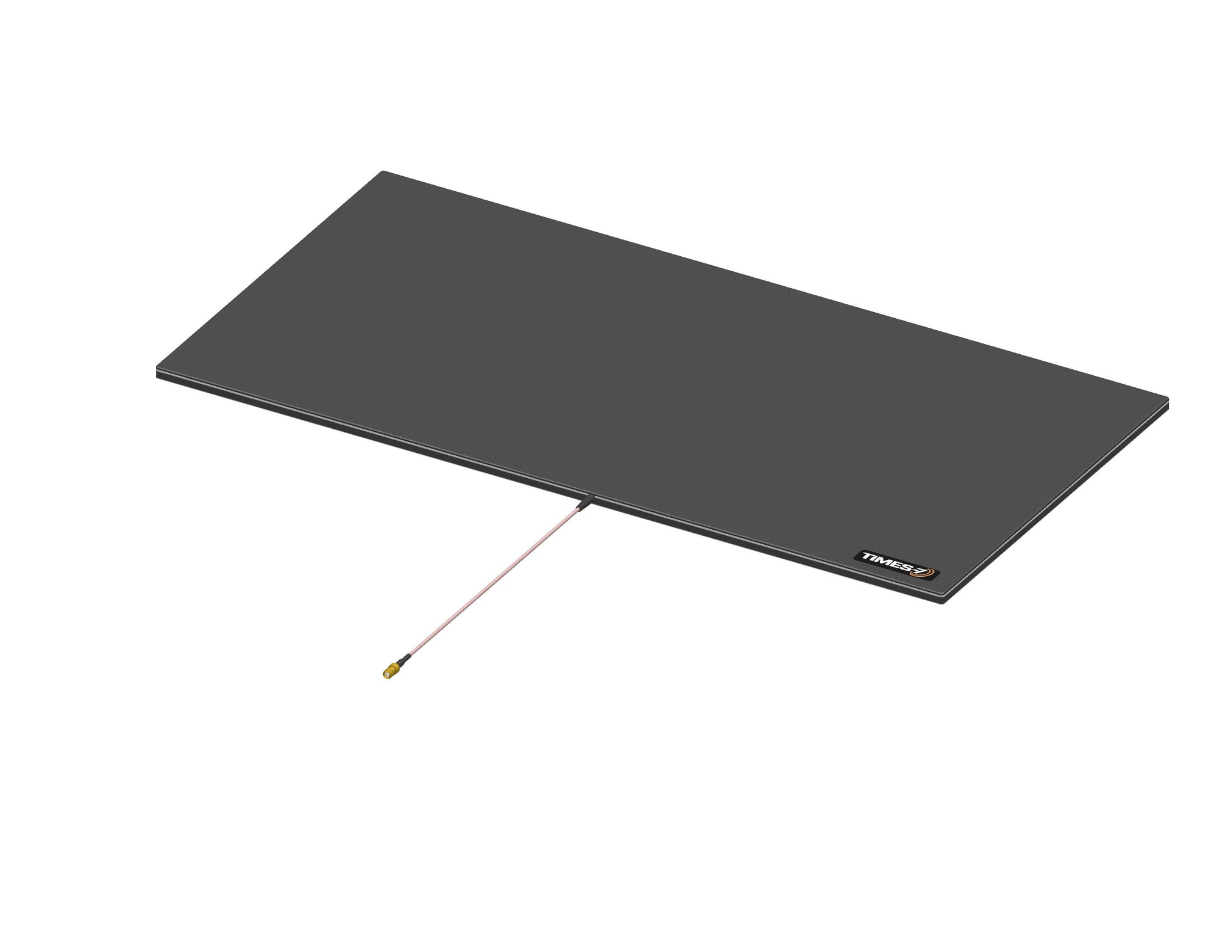

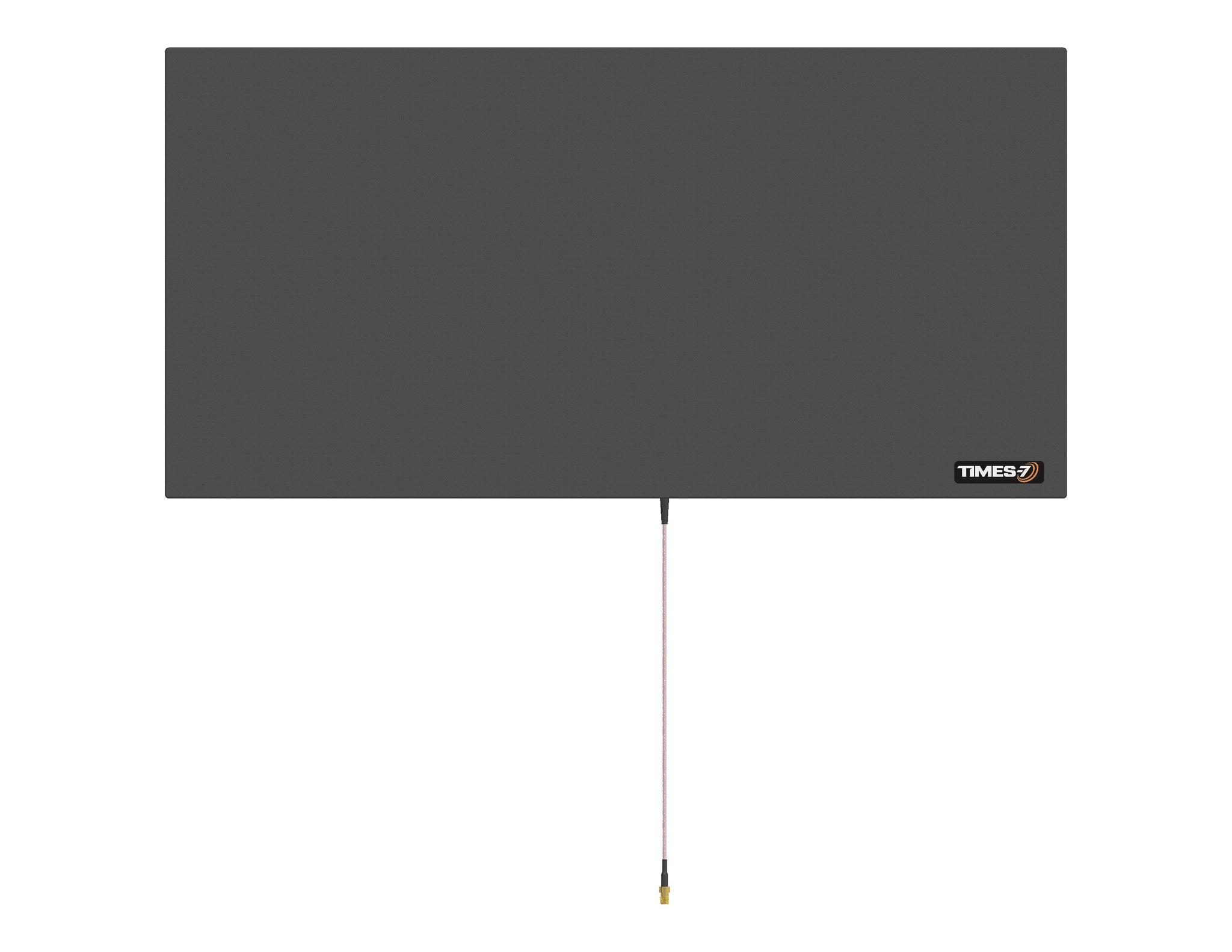

An exciting new addition to the SlimLine range of multi-purpose antennas, the A5060 is a circular polarized high gain antenna with an ultra-low profile, offering a read range of up to 10 m / 33 ft. The A5060 is designed with a multi-element array to avoid distortion for maximum readability in a highly reflective and densely populated tag environment. The A5060 is especially suitable for industrial portal applications.

Its standard physical size (600 mm x 300 mm / 2’ x 1’) allows the A5060 to be readily mounted behind ceiling tiles, in cabinets or to cover large bench tops. The antenna is IP65 rated and suitable for outdoor applications.

The A5060 can either be flush mounted using the integrated mounting holes or rack (VESA) mounted using our Universal Mounting Plate.



More Information


Specifications

SKU A506071875
Manufacturer Times-7
Antenna Category RFID (865-928 MHz)
Bands Single
IP Rating IP65
Polarity Circular
Gain 10.5 dBiC
Connector Type Connector - Side Entry
Connector 1 SMA-Female
Cable Length (inches) 9.8
Cable Length (mm) 250
Height/Length (inches) 2
Height/Length (mm) 600
Operating Temp (celsius) -20° to +55°C / -4° to +131°F
Thickness/Diameter (inches) 0.3
Thickness/Diameter (mm) 8
Width (inches) 1
Width (mm) 300
Weight (lbs) 3.3
Weight (grams) 1500
Material Fire retardant ABS
Mount Style Integrated mounting holes / Universal mounting brackets for rack (VESA) mounting available
Product Condition New
