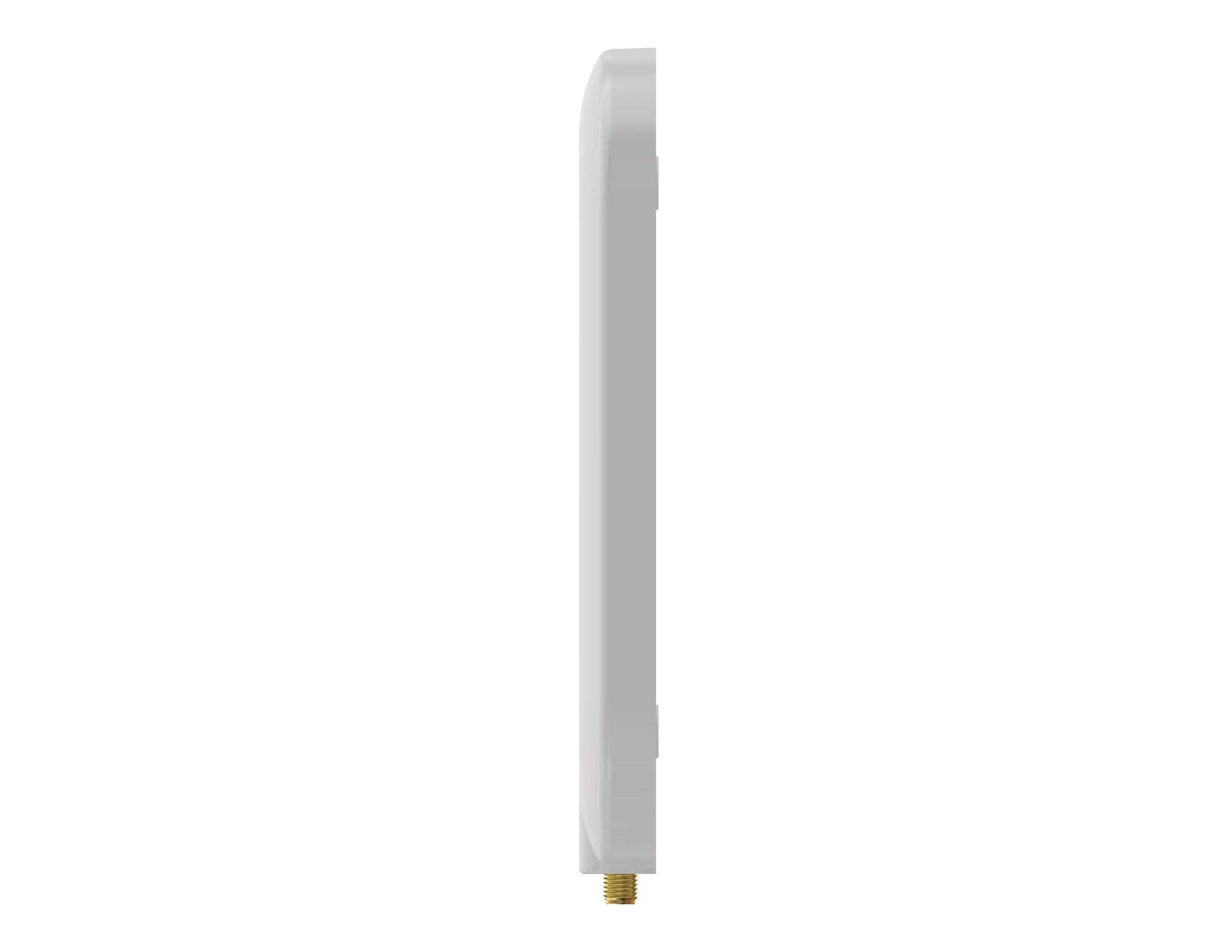

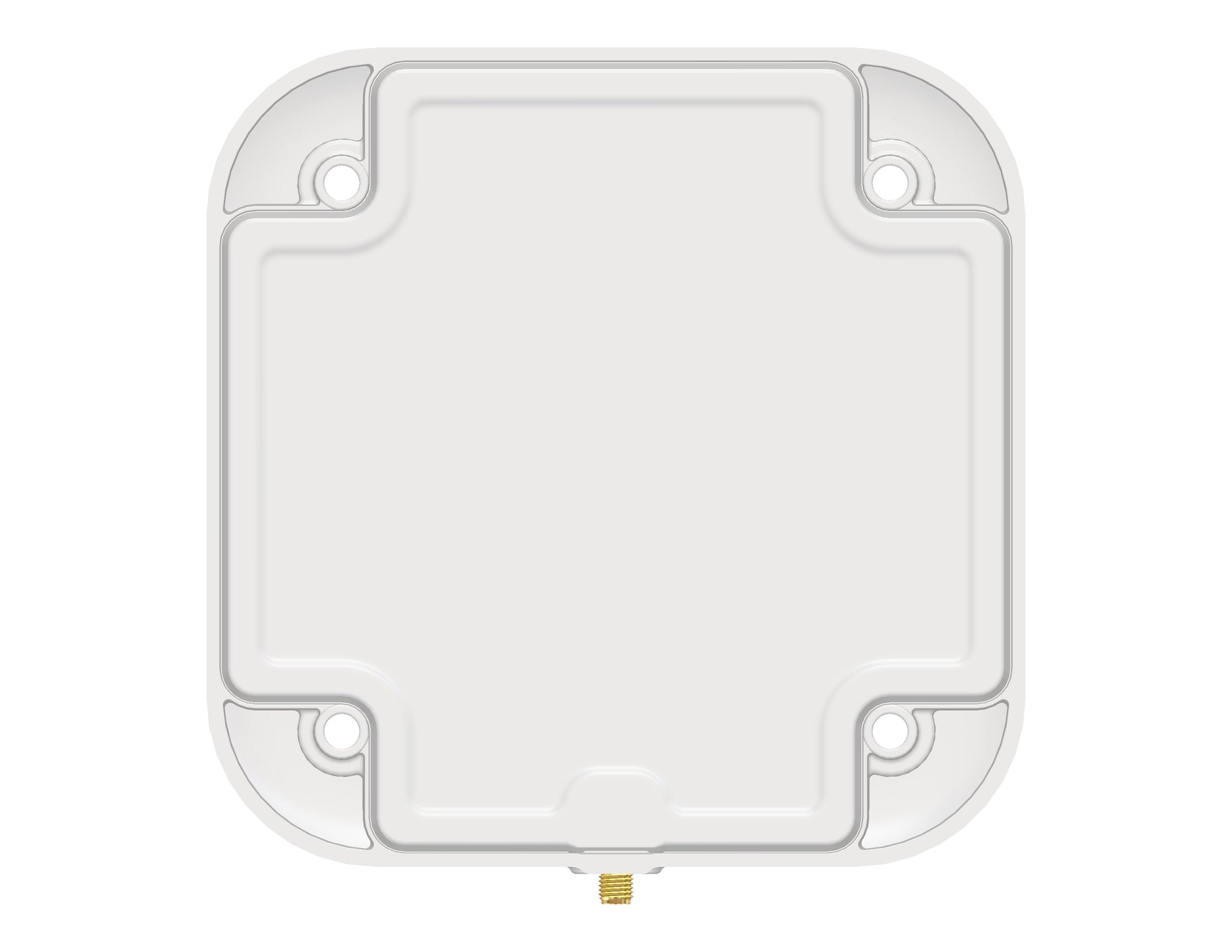

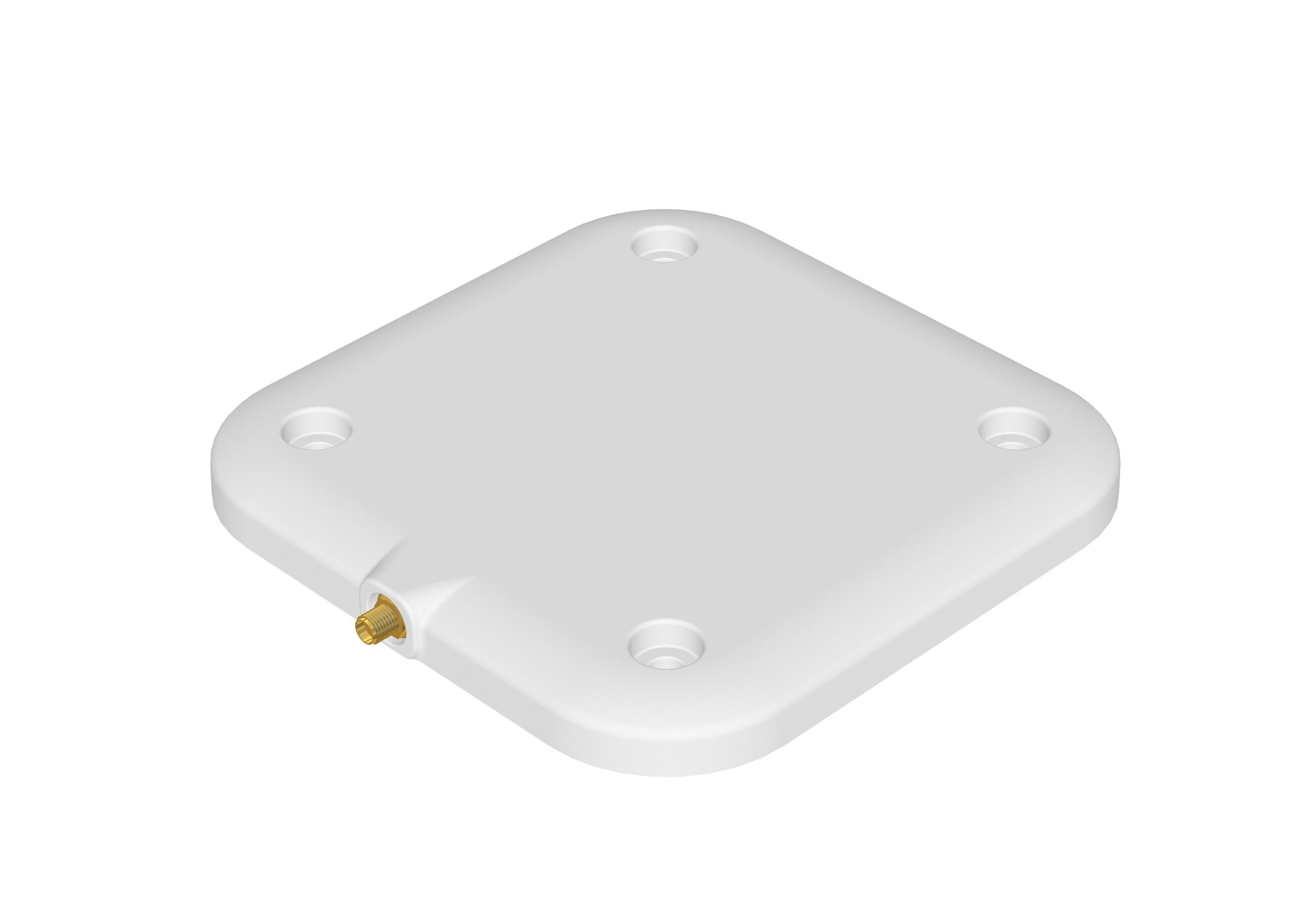

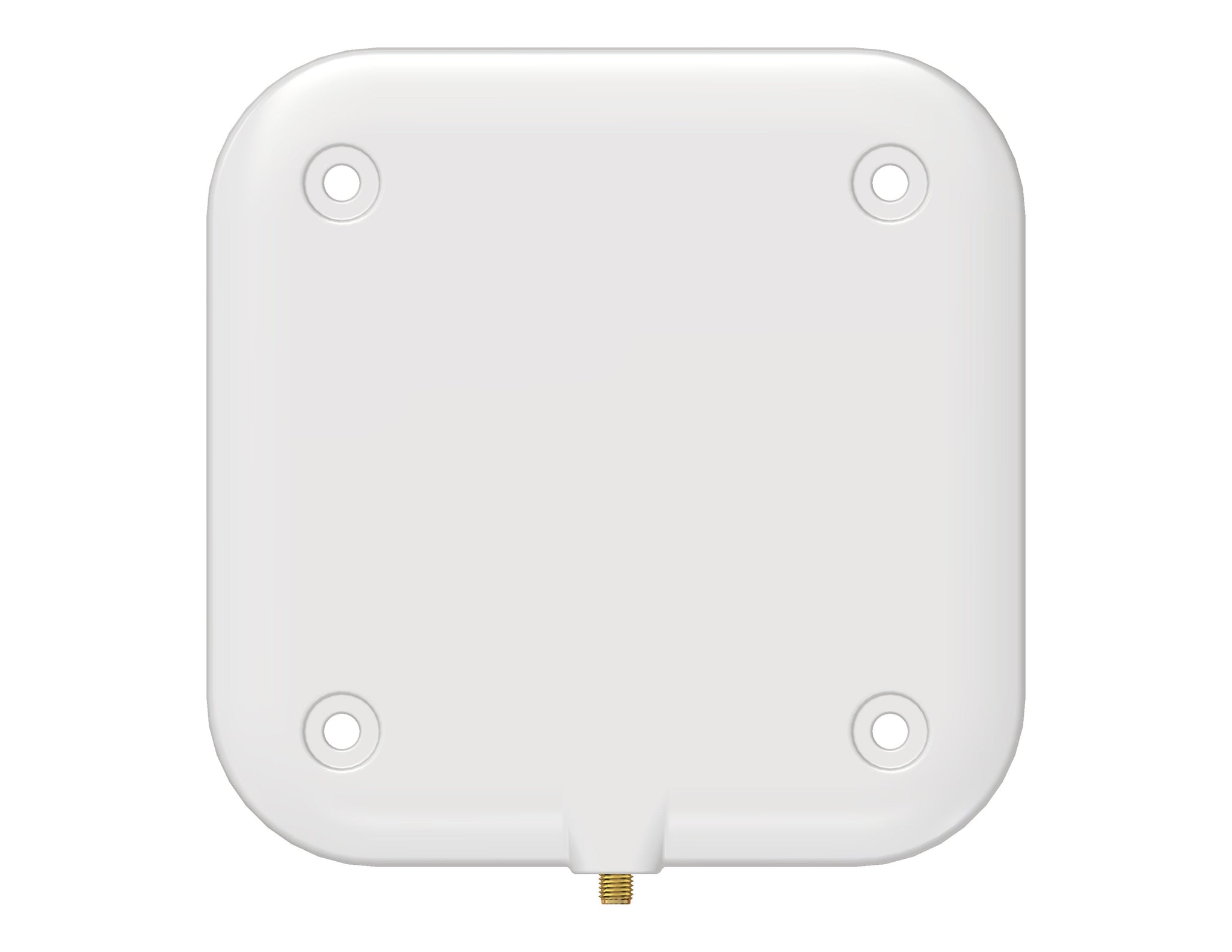

A5020-60010 (FCC): SlimLine Circular Polarized UHF RFID Antenna 902-928 MHz

  • $125.00
    Unit price per

A5020-60010


220 Can ship immediately
Factory lead time:  Ships in 2-4 Weeks

A5020-60010 (FCC): SlimLine Circular Polarized UHF RFID Antenna 902-928 MHz

More InfoDocumentsSpecifications Reviews

Equipped with the familiar and industry leading Times-7 ultra-low profile, the A5020 offers a compact footprint of only 150 mm / 5.9 inch square in a very smart-looking design. With a 1.5 ft. wider read range than most other antennas of similar size in the market, the circularly polarized A5020 antenna creates a new benchmark for multi-purpose UHF RFID antennas. IP68 rated and built to Times-7’s high standard for quality and robustness, the A5020 can be used for permanent outdoor applications. Its pleasing aesthetics and timeless design blends beautifully with most interiors, which makes the A5020 very suitable for customer facing environments.



More Information

Equipped with the familiar and industry leading Times-7 ultra-low profile, the A5020 offers a compact footprint of only 150 mm / 5.9 inch square in a very smart-looking design. With a 1.5 ft. wider read range than most other antennas of similar size in the market, the circularly polarized A5020 antenna creates a new benchmark for multi-purpose UHF RFID antennas. IP68 rated and built to Times-7’s high standard for quality and robustness, the A5020 can be used for permanent outdoor applications. Its pleasing aesthetics and timeless design blends beautifully with most interiors, which makes the A5020 very suitable for customer facing environments.


Documents


Specifications

SKU A502060010
Manufacturer Part Number A5020-60010
Manufacturer Times-7
Product Condition New
Antenna Category RFID 902-928 MHZ FCC
Bands Single
IP Rating IP68
Polarity Right Hand Circular
Gain 5.5 dBiC
Connector 1 SMA-Female
Height/Length (inches) 5.9
Height/Length (mm) 150
Operating Temp (celsius) -30° to +65°C
Thickness/Diameter (inches) 0.55
Thickness/Diameter (mm) 14
Width (inches) 5.9
Width (mm) 150
Weight (lbs) 0.55 lbs
Material UV-Resistant ABS
Color White
Mount Style Flush mount
