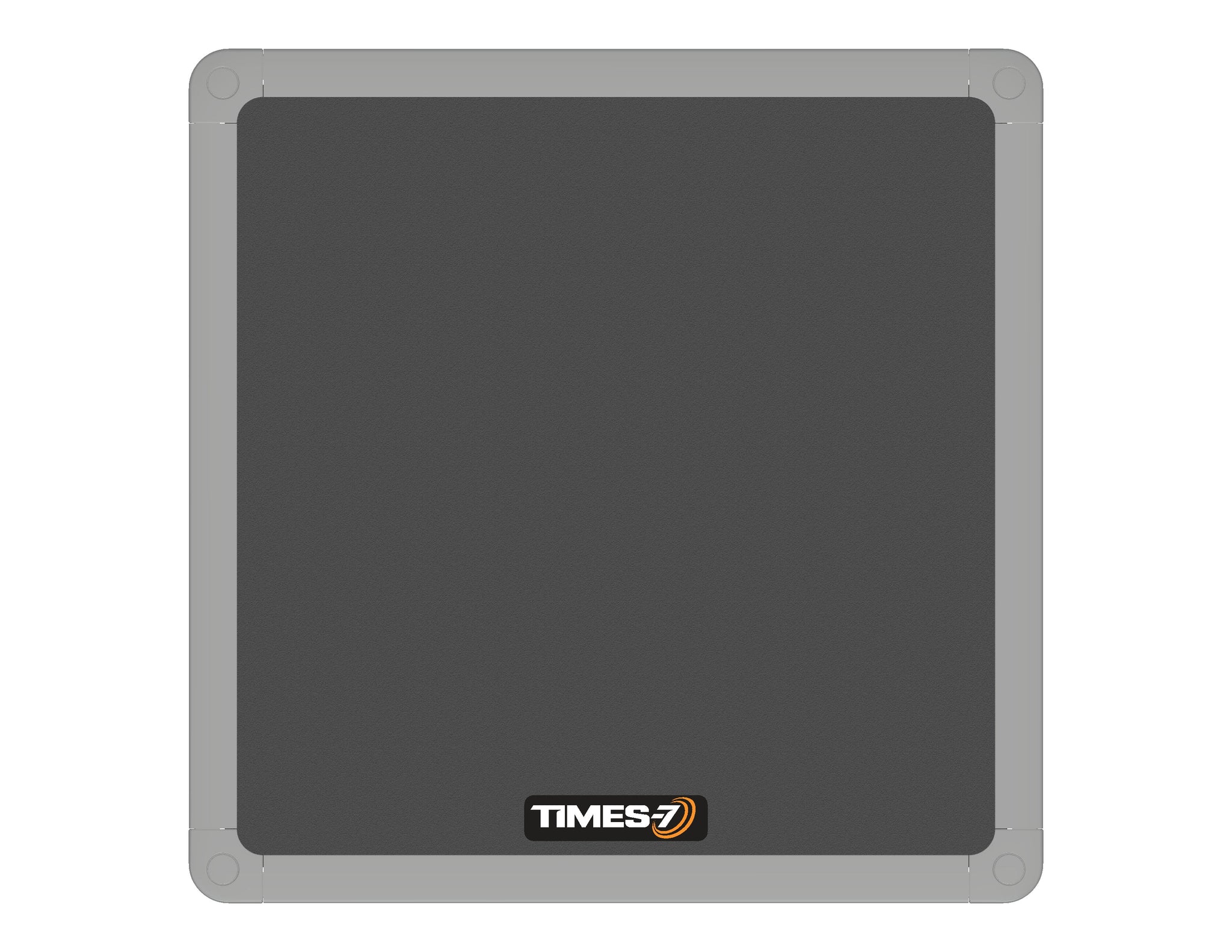

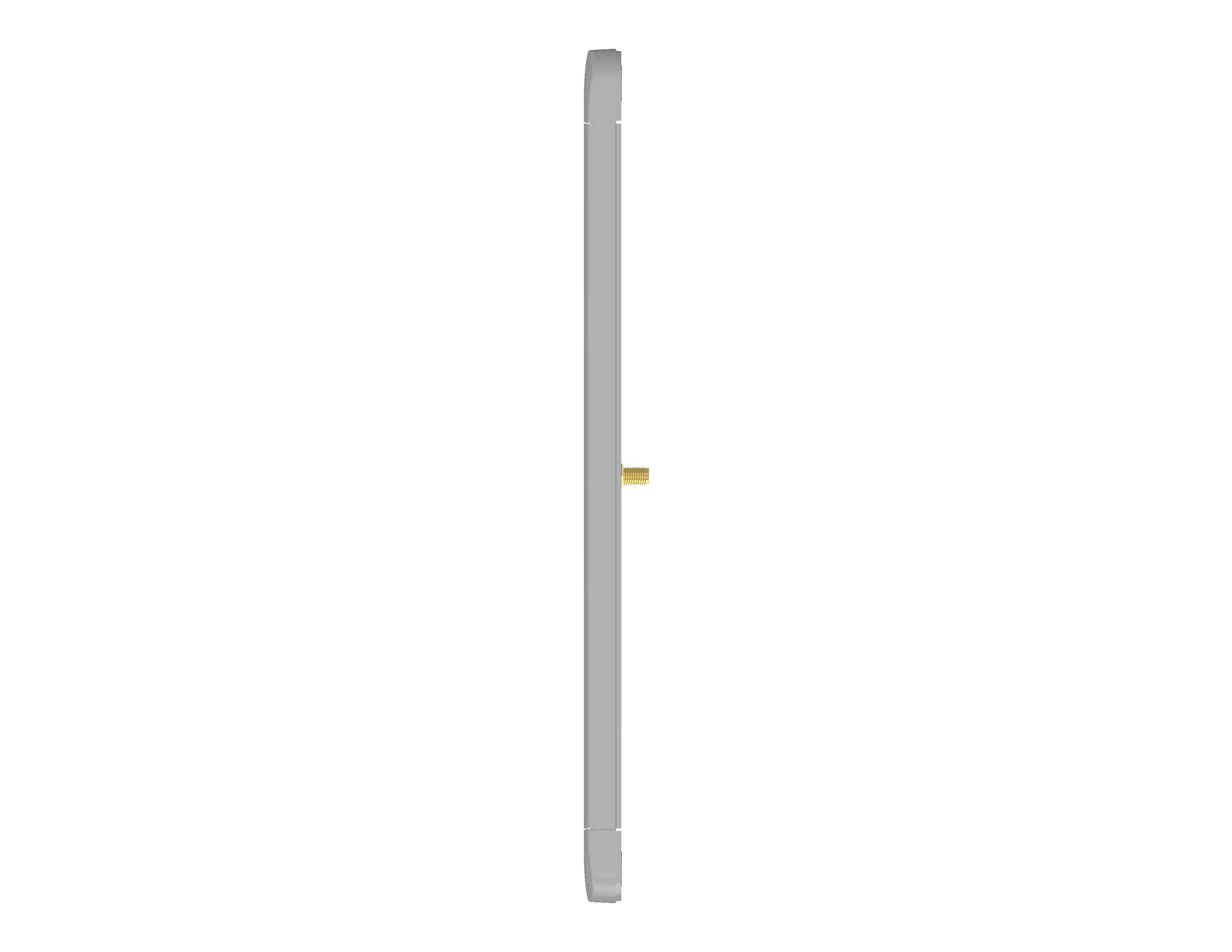

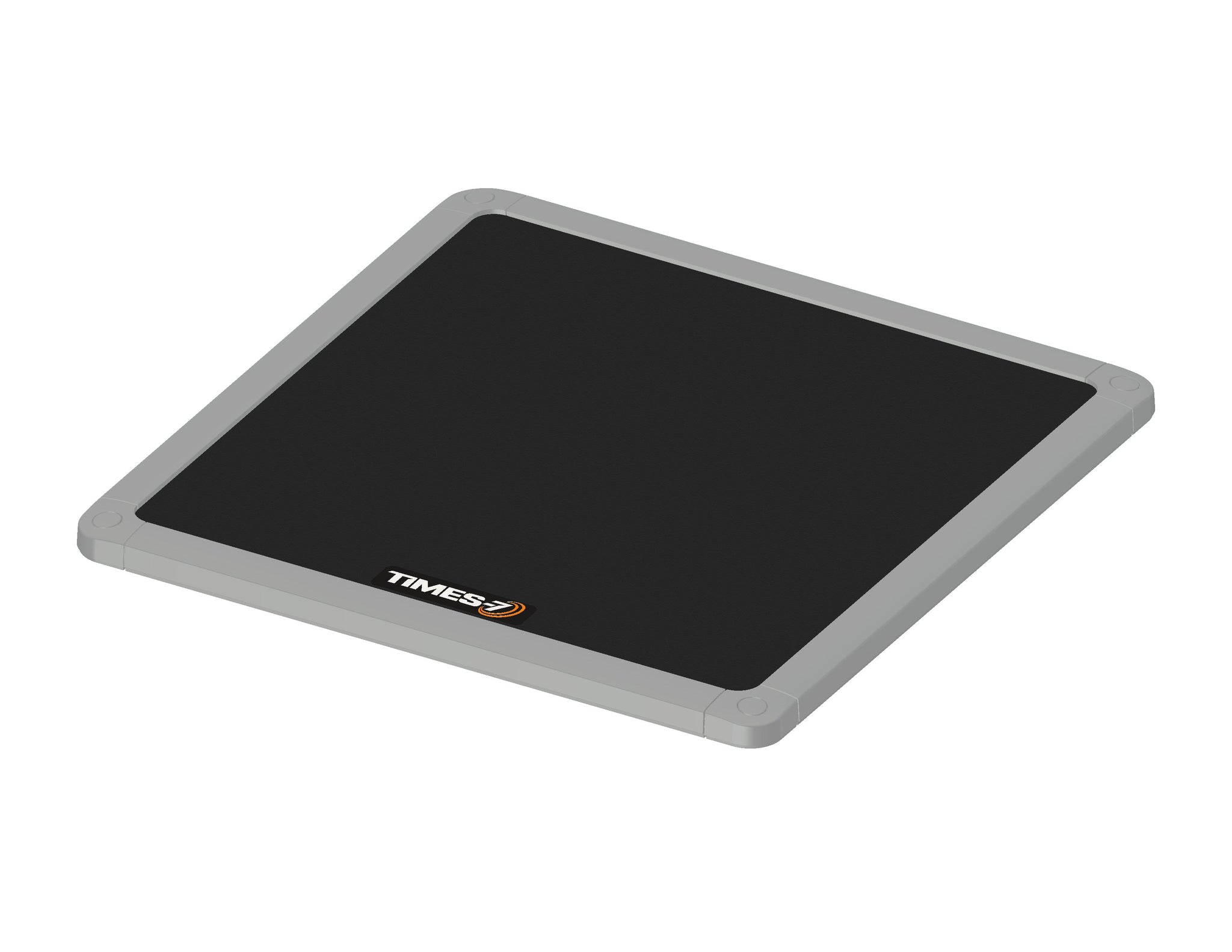

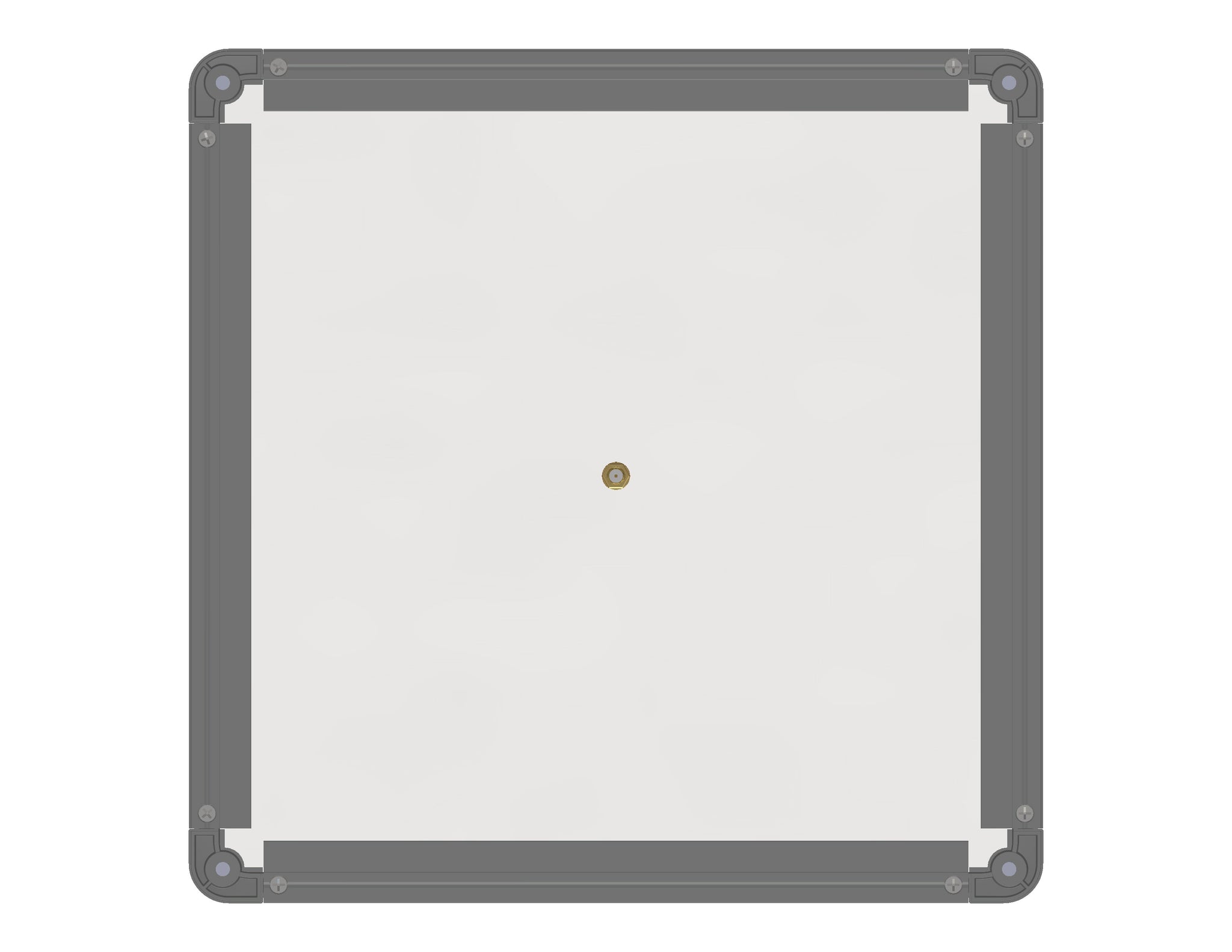

A4030C-71269: ETSI SlimLine UHF Antenna with 2m SMA to RPTNC Connector
A4030C-71269
Shipping calculated at checkout.
A4030C-71269: ETSI SlimLine UHF Antenna with 2m SMA to RPTNC Connector
More InfoDocumentsSpecifications ReviewsA4030C-71269: ETSI SlimLine UHF Antenna with 2m SMA to RPTNC Connector
Features:
- Frequency Range: 864-869 Mhz / 902 - 928 Mhz
- Polarization: Circular
- Gain: 6.5 dBic
- Connector: SMA to RPTNC
These antennas are terminated with SMA Female, please buy extension cables separately.
More Information
Specifications
| SKU | A4030C-71269 |
|---|---|
| Manufacturer Part Number | A4030C-71269 |
| Manufacturer | Times-7 |
| Working Frequency | 865-868 MHz |
| Antenna Category | RFID (865-928 MHz) |
| Bands | Multi |
| IP Rating | IP65 |
| Polarity | Circular |
| Gain | 6.5 dBic |
| Horizontal/Azimuth Beamwidth | 60 |
| Vertical/Elevation Beamwidth | 60 |
| Connector Type | Connector - Rear |
| Connector 1 | SMA-Female |
| Connector 2 | RP TNC-Male |
| Cable Length (inches) | 78 |
| Cable Length (mm) | 2000 |
| Height/Length (inches) | 11 |
| Height/Length (mm) | 280 |
| Operating Temp (celsius) | -20 to 55 |
| Thickness/Diameter (inches) | 11 |
| Thickness/Diameter (mm) | 280 |
| Width (inches) | 0.5 |
| Width (mm) | 12 |
| Weight (lbs) | 1.6 |
| Weight (grams) | 750 |
| Material | Fire Retardant Kydex |
| Product Condition | New |
