A1001-71203: 3x3 inch Mini Near Field Matchbox / Mini-Guardrail Style RFID Antenna - FCC & ETSI.
A1001-71203
A1001-71203: 3x3 inch Mini Near Field Matchbox / Mini-Guardrail Style RFID Antenna - FCC & ETSI.
More InfoDocumentsSpecifications ReviewsA1001-71203 is a mini Nearfield RFID Antenna that operates at -20 db gain in both the ETSI & FCC frequencies: 864-928 Mhz. The unit measures in at only 3.2 x 3.2 x 0.3 inches and has a fixed SMA-Female Connector. It is optimized for near field / close proximity RFID reads of 0 to 3.5 inches. Equivalent to the Impinj Matchbox RFID Antenna. Similar to the Impinj Matchbox IPJ-A0404-000 antenna, and Impinj Mini-Guardrail IPJ-A0303-000 antenna. Same performance, half the price!
More Information

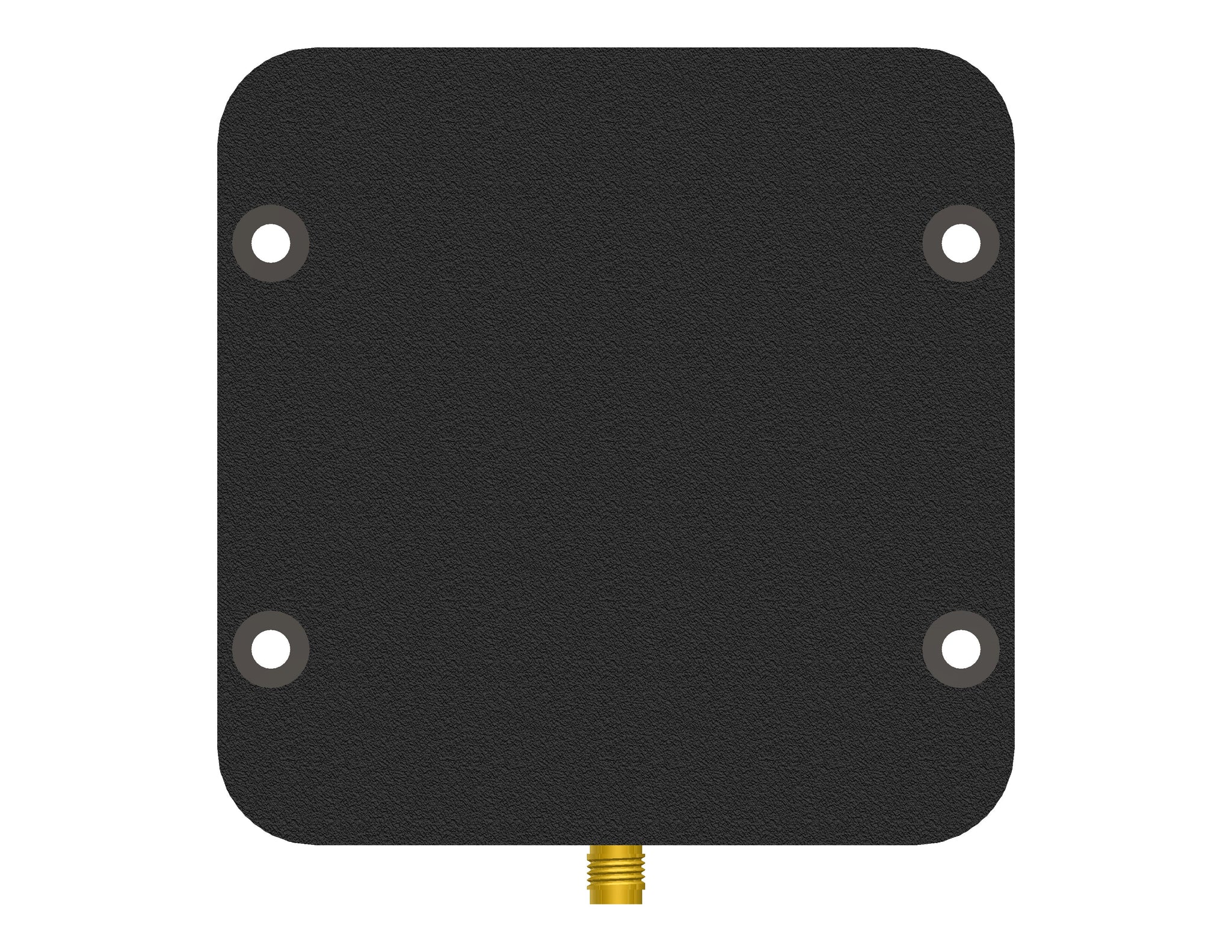

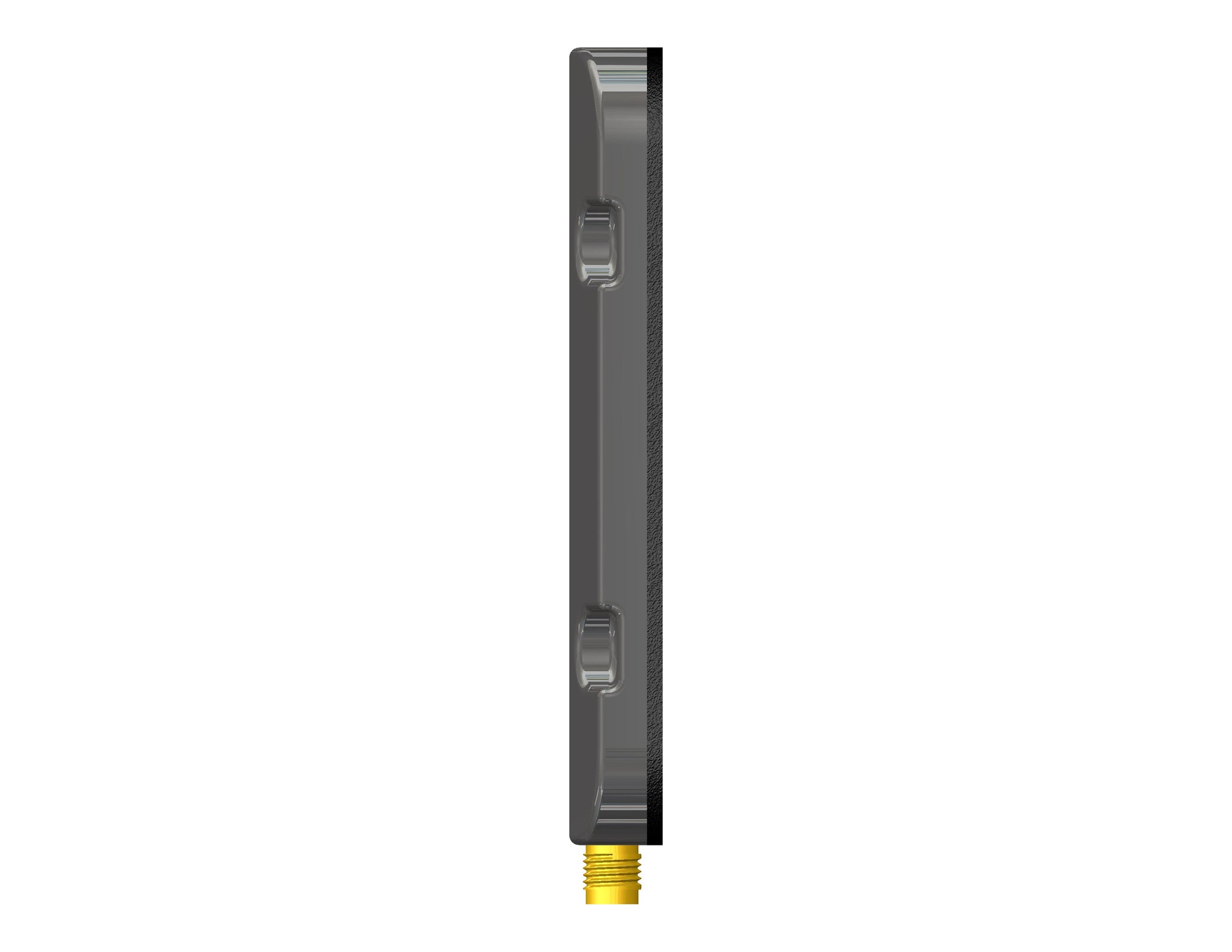

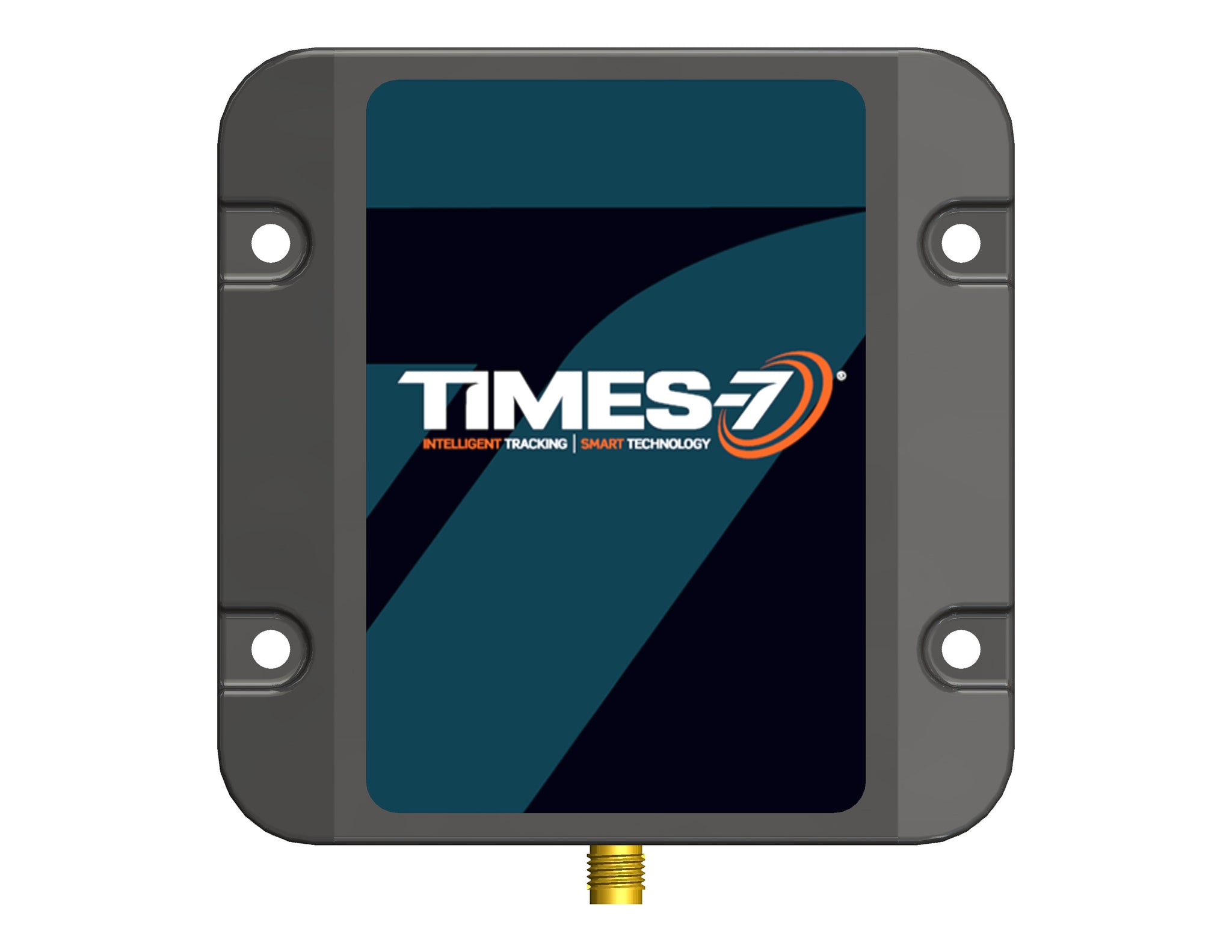

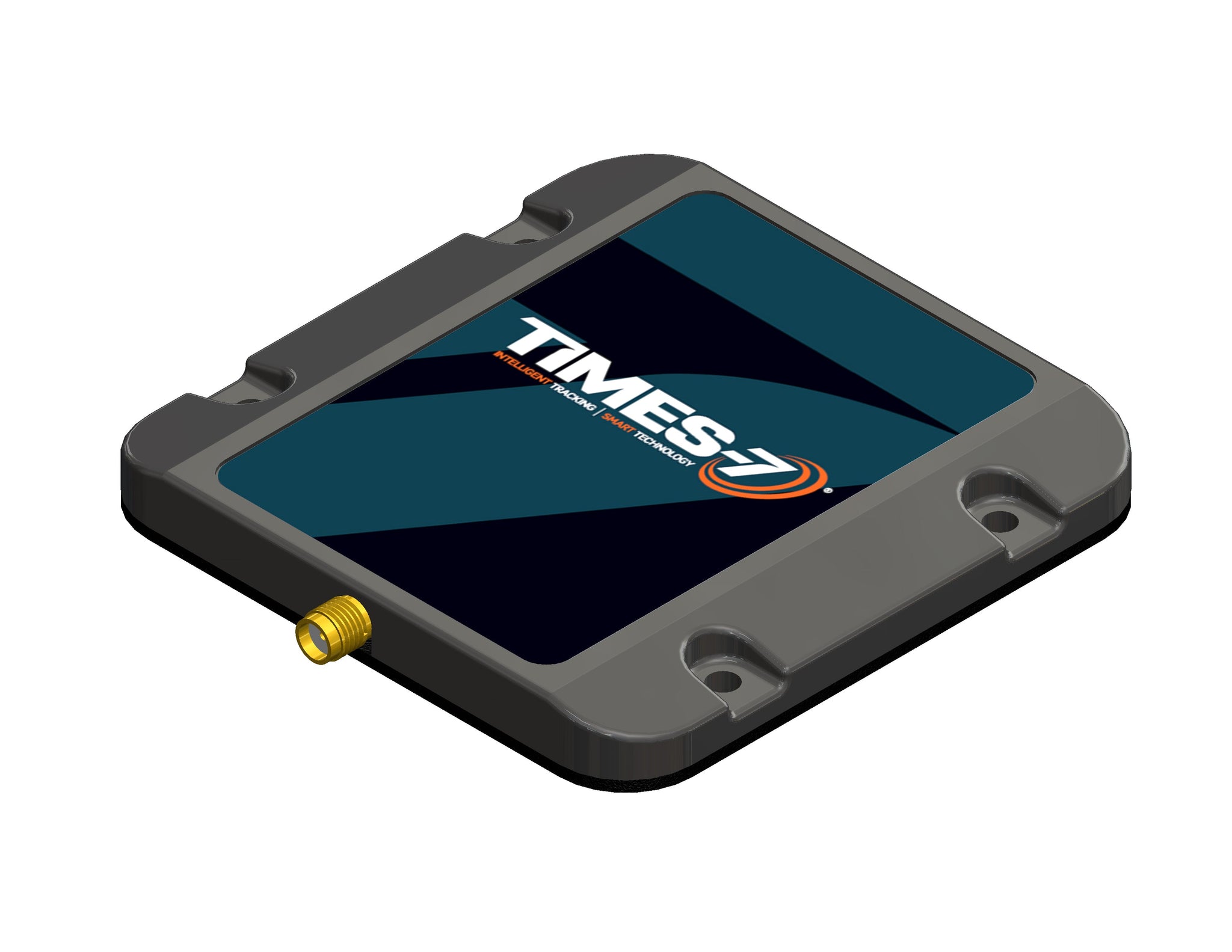

At only 3.2 x 3.2 x 0.3 inches,the A1001 is the smallest commercially available wideband near field UHF antenna. Read distance is from 0 to 10cm. Close proximity RFID is conventionally performed using HF and not UHF technology, however the advantage of the A1001 is that with this short range antenna, the same underlying UHF RFID infrastructure (tags and readers) can be used for long range and reading multiple tags at once, and for POS and security when you only want to read one tag at a time. Similar to the Impinj Matchbox IPJ-A0404-000 antenna, and Impinj Mini-Guardrail IPJ-A0303-000 antenna. Same performance, half the price!
Features:
- Mini nearfield UHF RFID antenna
- 864-928 Mhz, -20 dBic
- read distance to 10 cm.
- Fixed SMA-female connector
Documents
Specifications
SKU | A100171203 |
---|---|
Manufacturer Part Number | A1001-71203 |
Manufacturer | Times-7 |
Product Condition | New |
Antenna Category | RFID (865-928 MHz) |
Bands | Single |
IP Rating | 65 |
Polarity | Circular |
Gain | -20 |
Connector Type | Connector - Side Entry |
Connector 1 | SMA-Female |
Height/Length (inches) | 3 |
Height/Length (mm) | 82 |
Operating Temp (celsius) | 0 to 50 |
Thickness/Diameter (inches) | 0.5 |
Thickness/Diameter (mm) | 9.5 |
Width (inches) | 3 |
Width (mm) | 82 |
Weight (lbs) | 0.22 |
Weight (grams) | 0.22 |
Material | ABS Housing |
Color | Black |
Mount Style | Flush |
RTAS Cable Length | RTAS MAT-1: 2.62 m / 8 ft 7 in. |
Cable Length | 15 Feet |
