900 Mhz Yagi Antenna. Heavy Duty 7 Element Yagi for 880-960 Mhz. TY-900 Kathrein Scala Equivalent. RFMAX # RY900-12-7-SNF-19:
RY900-12-7-SNF-19
900 Mhz Yagi Antenna. Heavy Duty 7 Element Yagi for 880-960 Mhz. TY-900 Kathrein Scala Equivalent. RFMAX # RY900-12-7-SNF-19:

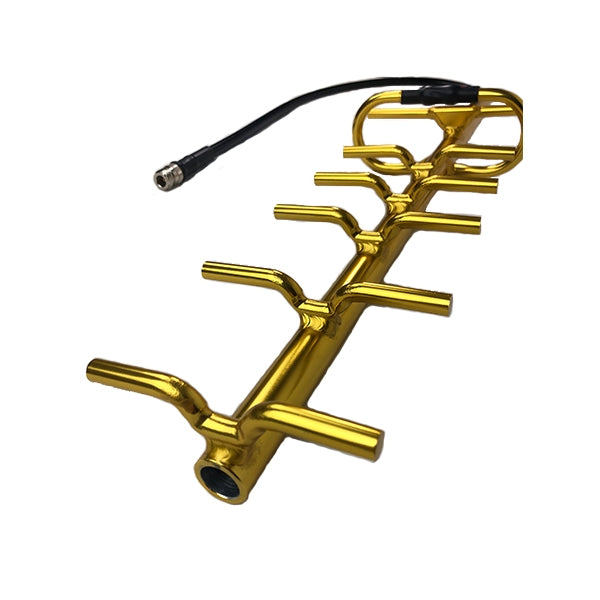

More InfoDocumentsSpecifications ReviewsThe RFMAX RY900-12-7-SNF-19 is a heavy duty, Gold Anodized, 900 MHz Yagi. It is equivalent to the TY-900 from Kathrein - Scala operating within the 880-960 MHz ISM frequency range. This RY900 antenna model is the RFMAX "premium" offering, with a full IP67 rating to withstand severe outdoor weather conditions. This is suitable for 900 MHz spread spectrum applications, SCADA system radios that operate in the unlicensed 896-940 MHz frequency range and for all applications working in 900 ISM Band. It features 360-degree welds around each of the seven elements, no gamma match to ice up, corrode or detune, and has gold anodizing added for overall corrosion resistance. This design provides performance and durability equivalent to PCTel, Laird, Kathrein, Larsen, Scala, Wilson, L-Com, etc.
Compatible with Digi ConnectPort® X2, XBee® SX RF. XBee-Pro® 900HP RF, and XTend® 900 MHz RF, SecondSight MDS Orbit Platofrm, Orbit MCR 900 MHz, Orbit ECR, TransNET, iNet, and SD, Freewave FGR2-CE-U, FGR2-PE-U, FGR3-CE-U, FGR2-C-U, FGR2-T-U, FGR2-P. FGR-3-C-U, Z9-P2, Z9-PE, ZE-PE2, Z9-P2, and Z9-PE-DEVKIT, Microhard Nano, Nano IP, and Pico Series, and MultiTech MultiConnect® rCell 100 Series and MultiConnect® Cell 100 Series
More Information
The RFMAX RY900-12-7-SNF-19 is ultra-rugged broadband Yagi Antenna operating within 880-960 MHz frequency range. This design provides excellent performance and durability for point-to-point and multi-point / directional outdoor antenna application used by private organizations and government agencies, including:
Remote Location Data Logging/Reporting •Railroad Switching •Oil Fields, Gas Pipelines, SCADA •LORA & LoRaWAn •ISM & Telemetry •900 MHz spread spectrum Radio Applications •Weather / Meteorology Stations •Flood Water Monitoring •Utility Meter Data Transmission (water, gas) •Kathrein - Scala Equivalent
- Frequency: 880-960 MHz
- No. of Elements: 7
- Dimension (LxH): 24 x 6.6 inches
- Peak Gain: 12.2 dBi
- Max Input Power: 200 watts
- Wind Survival Rating: 136 MPH
- Cast Aluminum Mounting Kit Included
- 19 Inch Cable & N-Female Connector
- 5 Year Factory Warranty!
Compatible with Digi ConnectPort® X2, XBee® SX RF. XBee-Pro® 900HP RF, and XTend® 900 MHz RF, SecondSight MDS Orbit Platofrm, Orbit MCR 900 MHz, Orbit ECR, TransNET, iNet, and SD, Freewave FGR2-CE-U, FGR2-PE-U, FGR3-CE-U, FGR2-C-U, FGR2-T-U, FGR2-P. FGR-3-C-U, Z9-P2, Z9-PE, ZE-PE2, Z9-P2, and Z9-PE-DEVKIT, Microhard Nano, Nano IP, and Pico Series, and MultiTech MultiConnect® rCell 100 Series and MultiConnect® Cell 100 Series.
Documents
Specifications
SKU | RY900127SNF19 |
---|---|
Manufacturer Part Number | RY900-12-7-SNF-19 |
Manufacturer | RFMAX |
Product Condition | New |
Antenna Style | Yagi |
Antenna Style | Yagi |
Antenna Category | 900 MHz |
Polarity | Linear |
Bands | Single |
SISO or MIMO | SISO |
Directional or Omni | Directional |
Frequency 1 | 880-960 MHz |
Gain 1 | 12.2 |
Impedance | 50 Ohm |
Max Input Power (W) | 200 |
VSWR: < X: 1 | 1.5:1 |
Front/Back Ratio (Db) | 20 dB |
Horizontal/Azimuth Beamwidth | 54 |
Vertical/Elevation Beamwidth | 47 |
No Of Elements | 7 |
Height/Length (inches) | 24 |
Height/Length (mm) | 610 |
Width (inches) | 6.61 |
Width (mm) | 168 |
Thickness/Diameter (inches) | 3.11 |
Thickness/Diameter (mm) | 79 |
Weight (lbs) | 3.02 |
Weight (grams) | 1370 |
Color | Gold |
Cable Type | RG-213 |
Cable Length (inches) | 19.2 |
Cable Length (mm) | 488 |
Connector 1 | N-Female |
IP Rating | IP67 |
OK for Outdoor Use | Yes |
Vehicular | No |
Ground Plane Required | No |
