External Range Extender Kit For Motorola VC70 Mobile Computers | 8508851K46

  • $65.00
    Unit price per

8508851K46


10 Can ship immediately
Lead time for qty above 10:  Ships in 4-6 Weeks

Shipping calculated at checkout.

External Range Extender Kit For Motorola VC70 Mobile Computers | 8508851K46

More InfoDocumentsSpecifications Reviews

RFMAX antenna range Extender Kits for the Motorola Zebra VC70 rugged Vehicle-Mounted Mobile Computers. These kits are typically used as external mounted Forklift Antennas to boost the range of your VC70's Wi-Fi connectivity by allowing you to install the antenna on top of your forklift so as to eliminate any interference caused by the overhead guard. The kit includes a 2.4/5 Ghz antenna, magnetic mount, cable and connector. During installation, you *MUST* set your computer's settings to default to the external antenna.


More Information

RFMAX Range Extender Kits for the Motorola VC70 Vehicle-Mounted Mobile Computers provide a significant boost in RF / Wi-Fi connectivity from the VC70, which is typically used as a Forklift Antenna or truck mounted, to the wireless network in the warehouse or distribution center.

The antenna operates at 2.4/5.0 GHz with a gain of 4.5/5.5 dBi. NMO mount features a powerful magnet and is designed to mount outside the vehicle for maximum performance.


Documents


Specifications

SKU 8508851K46
Manufacturer Part Number 8508851K46
Manufacturer RFMAX
Antenna Category WiFi (2.4 & 5.0 GHz)
Working Frequency 2.4 - 2.5 GHz
Gain 4.5 dBi
Working Frequency 2 4.9 - 5.9 GHz
Gain 2 5.5 dBi
Antenna Style Forklift Antenna
Polarity Vertical
Bands Multi
SISO or MIMO SISO
Directional or Omni Omnidirectional
VSWR: < X: 1 2.0:1
Height/Length (inches) 3.75
Mount Style High Strength Magnetic Mount
Color Black
Connector Type Cable - Side Entry
Cable Type RG-58/U
Number of Cables 1
Cable Length (inches) 12 feet
Connector 3 Reverse Polarity /Reverse Thread SMA Male

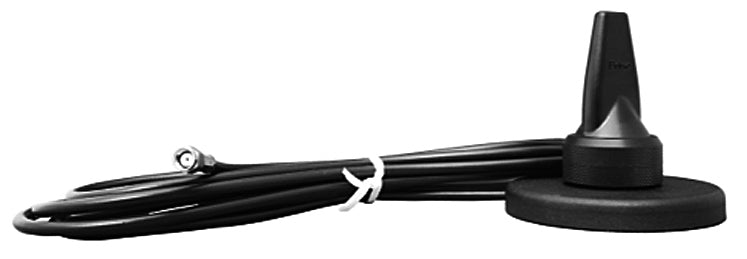

Includes antenna, mag mount, cable and connector
OK for Outdoor Use Yes
Vehicular Yes
Ground Plane Required Yes
Product Condition New
