410-420 MHz Fiberglass Omni Antenna with N Female 5 dBi Gain | ROSA-410-5-SNF

  • $288.16
    Unit price per

ROSA-410-5-SNF


0 in stock. Subject to factory lead time
Lead time:  Ships in 8-10 Weeks

Shipping calculated at checkout.

410-420 MHz Fiberglass Omni Antenna with N Female 5 dBi Gain | ROSA-410-5-SNF

More InfoDocumentsSpecifications Reviews

The RFMAX ROSA-410-5-SNF is a high-performance 410–420 MHz fiberglass omnidirectional antenna designed for AES Fire Monitoring System, Public Safety, SCADA, and wireless infrastructure networks. With 5 dBi of gain and a 360° radiation pattern, it delivers consistent signal coverage for mission-critical and industrial applications. Its rugged fiberglass radome and DC-grounded design provide superior durability and lightning protection. Engineered to withstand wind speeds up to 100 mph and temperatures from -40°C to +60°C, this antenna ensures dependable performance in harsh environments.
*Mounting Bracket is Included



More Information

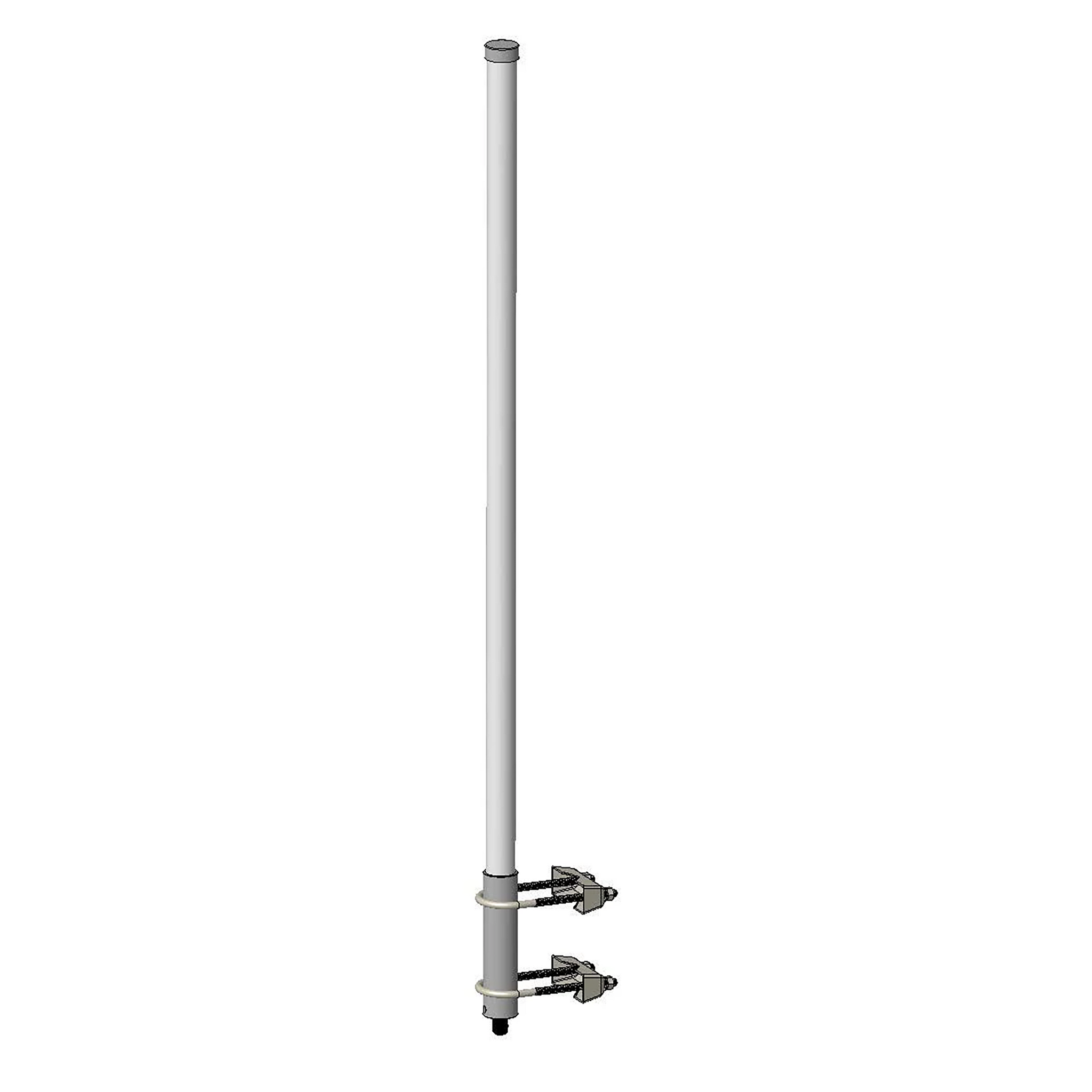

The RFMAX ROSA-410-5-SNF is a high-performance omnidirectional antenna engineered for 410–420 MHz communication systems. Delivering 5 dBi of gain and full 360° coverage, this rugged fiberglass antenna ensures reliable, long-range connectivity for mission-critical communications, industrial IoT, and wireless infrastructure applications. Built to endure harsh outdoor environments, the ROSA-410-5-SNF features a fiberglass radome, DC-grounded design, and N-Female connector for superior signal integrity and lightning protection. With a wind survival rating of 100 mph and operating temperature range from -40°C to +60°C, it provides consistent performance and durability in the field. Compact and easy to install, this antenna comes with a pipe-mount bracket compatible with 30–50 mm masts, making it ideal for public safety networks, SCADA systems, and base station deployments requiring stable, omnidirectional RF coverage.

Documents


Specifications

SKU ROSA4105SNF
Manufacturer Part Number ROSA-410-5-SNF
Manufacturer RFMAX
Antenna Category UHF (380-600 MHz)
Working Frequency 410-420 MHz
Gain 5.0 dBi
Antenna Style Omnidirectional Base Station Antenna
Polarity Vertical
Directional or Omni Omni Directional
Impedance 50 ohms
Max Input Power (W) 100 Watts
VSWR: < X: 1 <2.0:1
Height/Length (inches) 42.9
Height/Length (mm) 1090
Thickness/Diameter (inches) 1.3
Thickness/Diameter (mm) 32
Weight (lbs) 2.8 (without bracket)
Operating Temp (celsius) -40 to +60 C
Color White
Connector 1 N-Female
Includes Includes Mounting Kit
IP Rating IP67
OK for Outdoor Use Indoor/Outdoor
Product Condition New
