36x12 inch Circularly Polarized SlimLine RFID Ground Antenna - ETSI
A6590C-71324
Shipping calculated at checkout.
36x12 inch Circularly Polarized SlimLine RFID Ground Antenna - ETSI

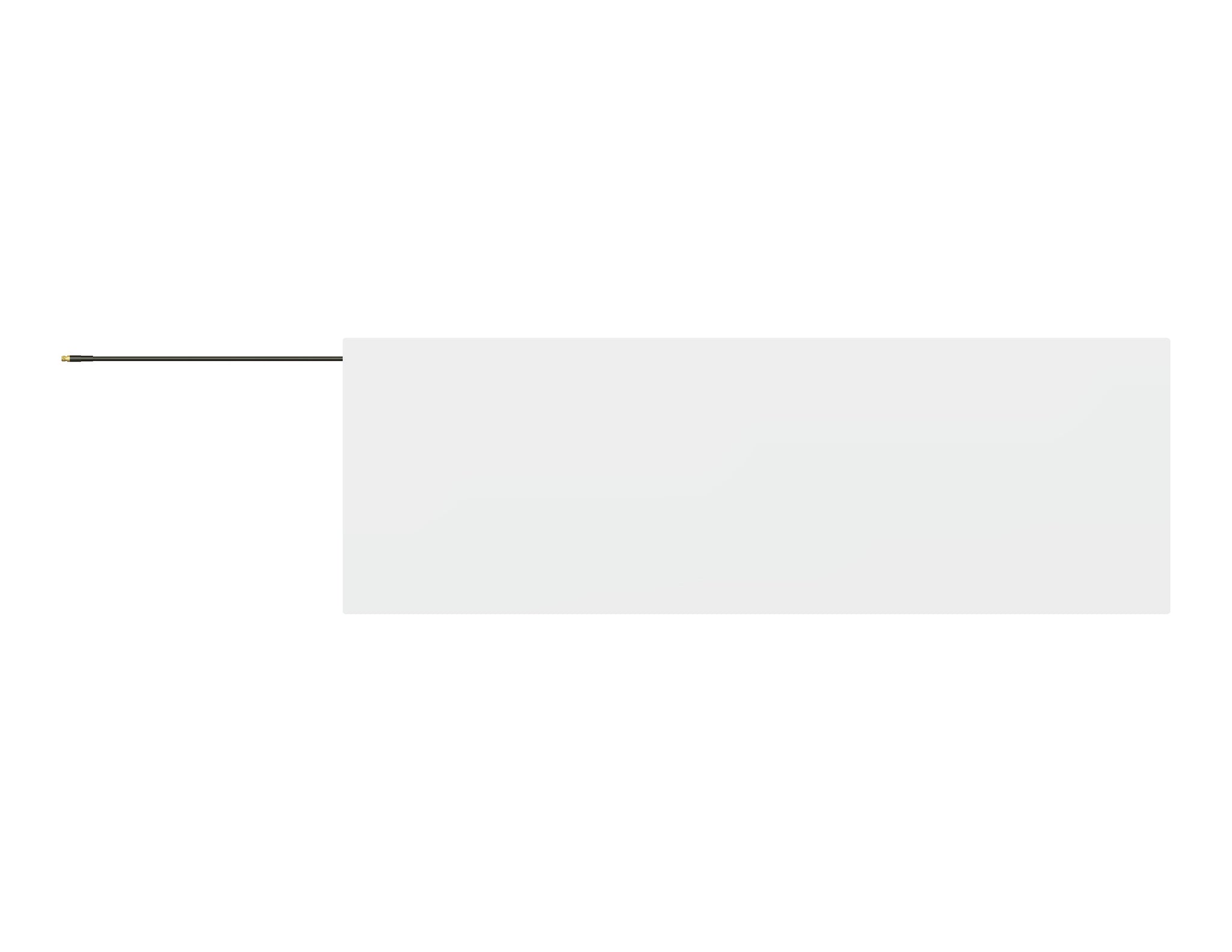

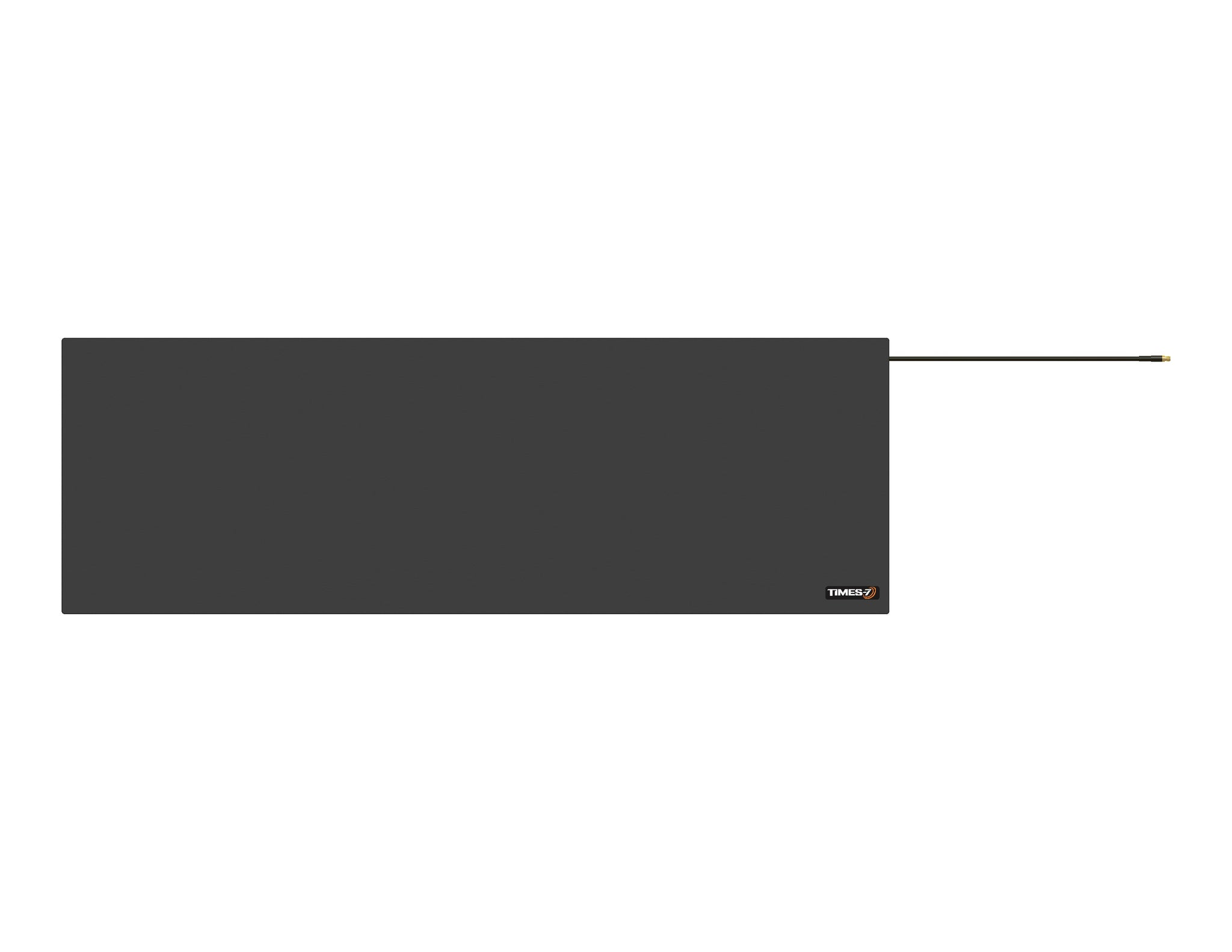

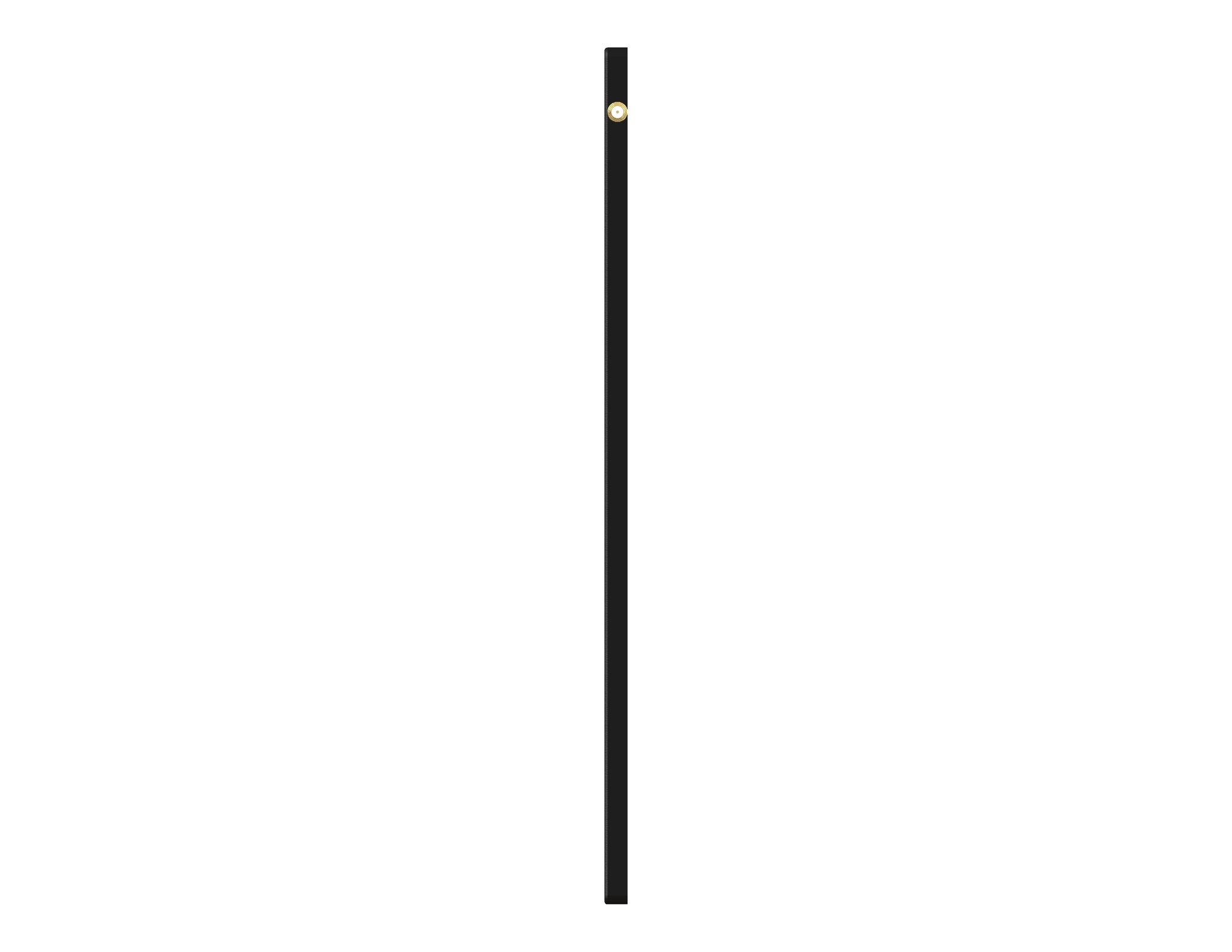

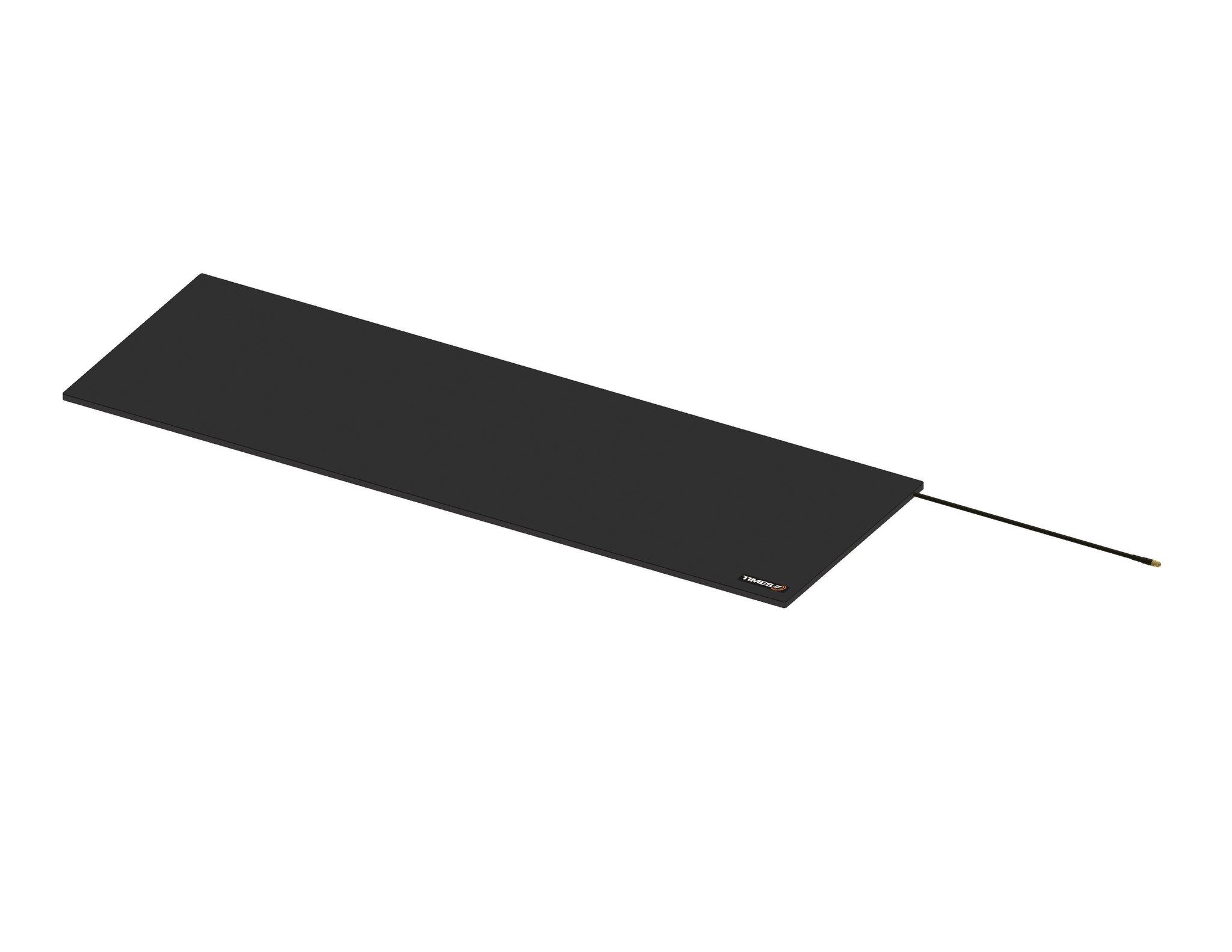

More InfoDocumentsSpecifications ReviewsA6590C is a Circularly Polarized RFID mat Antenna that operates in the ETSI range of 864-869 Mhz. This model is circular polarized and offers 9 dBic gain. Size: 36 x 12 x 0.5 inch with 12 inch Pigtail with SMA-Female Connector
More Information
Specifications
| SKU | A6590C71324 |
|---|---|
| Manufacturer Part Number | A6590C-71324 |
| Manufacturer | Times-7 |
| Working Frequency | 865-868 MHz |
| Antenna Category | RFID (865-928 MHz) |
| Bands | Single |
| IP Rating | 65 |
| Polarity | Circular |
| Gain | 9 |
| Horizontal/Azimuth Beamwidth | 80 |
| Vertical/Elevation Beamwidth | 20 |
| Connector Type | Cable - Side Entry |
| Connector 1 | SMA-Female |
| Cable Length (inches) | 12 |
| Cable Length (mm) | 305 |
| Height/Length (inches) | 36 |
| Height/Length (mm) | 915 |
| Operating Temp (celsius) | -30 to +70 |
| Thickness/Diameter (inches) | 0.3 |
| Thickness/Diameter (mm) | 8 |
| Width (inches) | 12 |
| Width (mm) | 305 |
| Weight (lbs) | 4.4 |
| Weight (grams) | 2000 |
| Material | Kydex |
| Mount Style | Ground |
| Product Condition | New |
