3/4 inch Chrome Thru Hole NMO Mount with 17 Ft of RG-58U Cable and FME Female Connectors
RNMOT-58U-FME-C-17i
Shipping calculated at checkout.
3/4 inch Chrome Thru Hole NMO Mount with 17 Ft of RG-58U Cable and FME Female Connectors

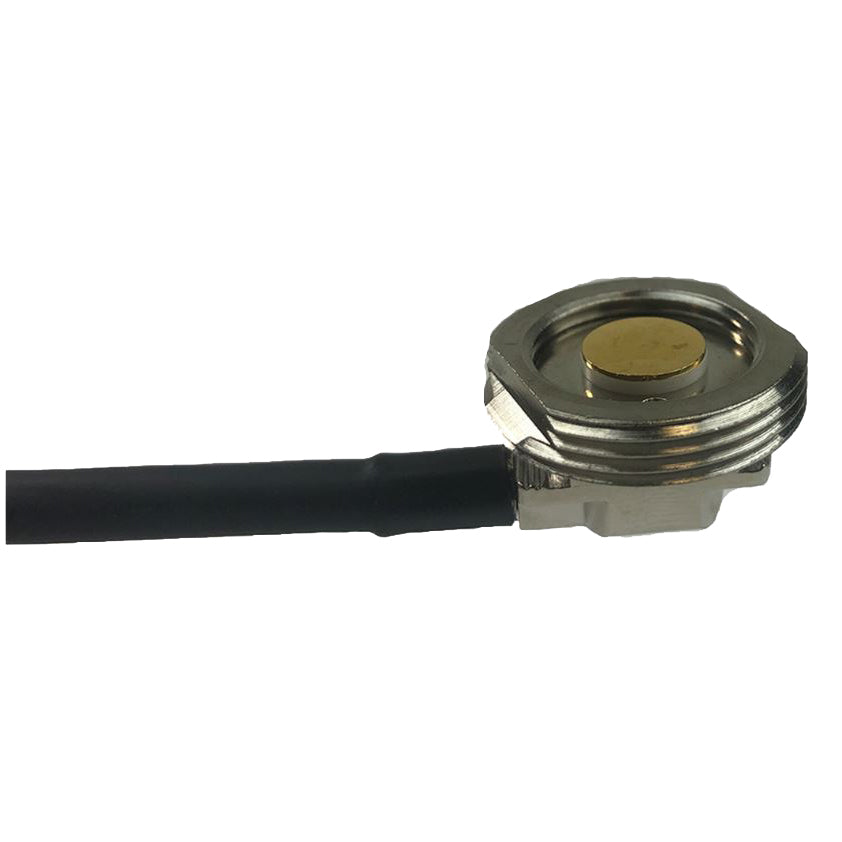

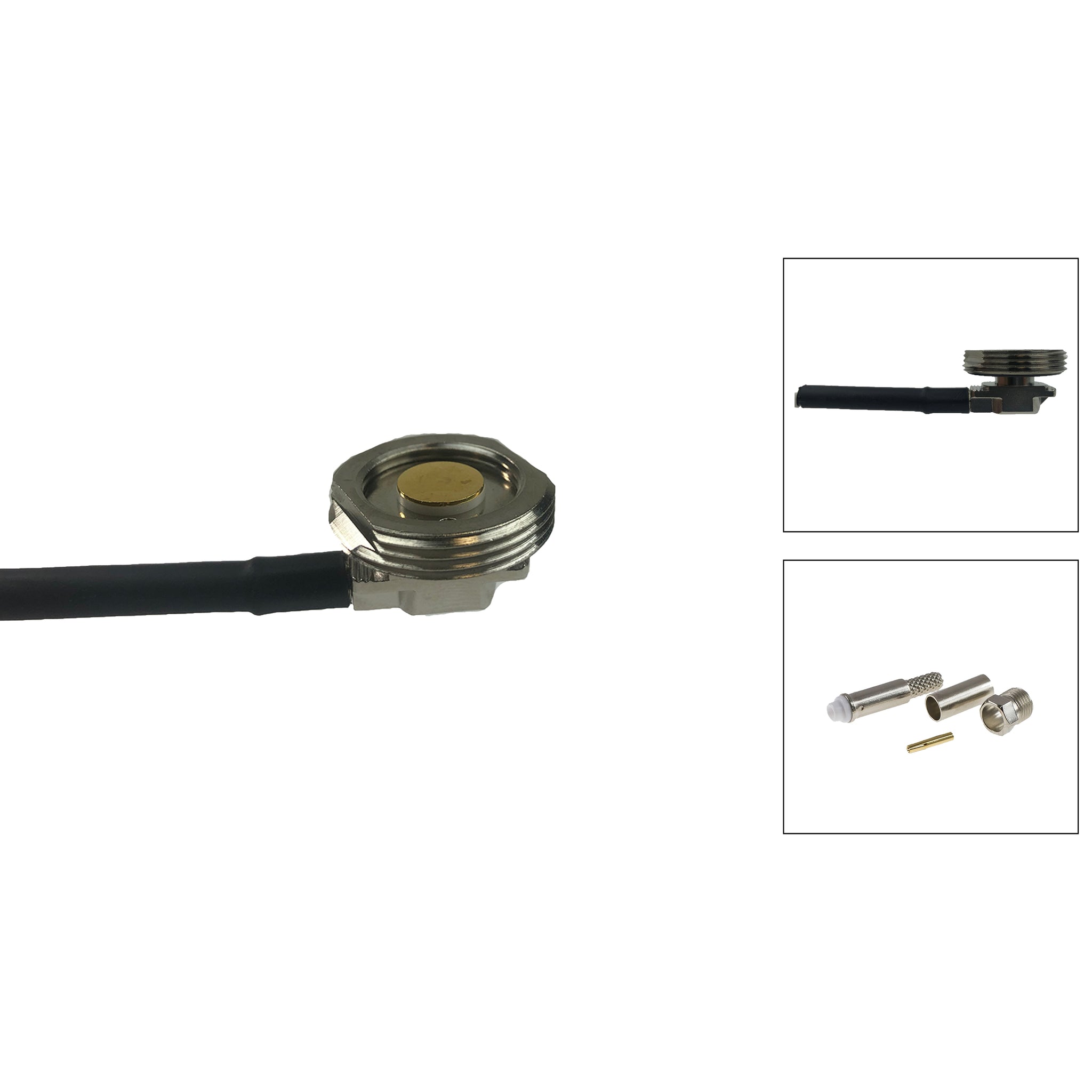

More InfoDocumentsSpecifications ReviewsRFMAX RNMOT-58U-FME-C-17i NMO style mounts convert from low frequency applications to high frequency applications and back by pulling or replacing the center pin and insulator. Includes 17 feet of RG-58U dual shield coaxial cable with an FME female connector.
Please Note: This NMO mount requires a drilled hole, please use part # HS34.
More Information
RFMAX RNMOT-58U-FME-C-17i NMO style mounts convert from low frequency applications to high frequency applications and back by pulling or replacing the center pin and insulator. Requires a 3/4” hole for mounting and includes a 17’ of RG-58U (solid copper conductor) dual shield coaxial cable with an FME female connector.
FEATURES
- 3/4 Thru-Hole NMO Mount
- 17 Ft. RG-58/U Cable
- FME-Female Connector Installed
- 5 Year Factory Warranty
| Cable Type | Attenuation (dB/100 ft) | ||
| 150 MHZ | 450 MHZ | 900 MHZ | |
| RG-58/U | 5.40 | 10.20 | 16.10 |
| RG-58A/U | 6.20 | 12.50 | 20.00 |
| RG8X | 3.60 | 6.80 | 10.70 |
| Solid Teflon Cable | 4.80 | 9.00 | 13.50 |
Documents
Specifications
| SKU | RNMOT58UFMEC17i |
|---|---|
| Manufacturer Part Number | RNMOT-58U-FME-C-17i |
| Manufacturer | RFMAX |
| Antenna Style | Mounts and Brackets |
| NMO Mount Type | Thru Hole NMO mount |
| Mount Style | 3/4 Thru-Hole NMO Mount |
| Connector 1 | FME-Female Installed |
| Cable Length (Mounts) | 17 Feet |
| Cable Type | RG-58/U |
| Cable Length (inches) | 204 |
| Cable Length (mm) | 5181.6 |
| Weight (lbs) | 0.5 |
| Weight (grams) | 227.27 |
| Used for Roof Thickness | Up to 1/8 inch |
| Color | Chrome |
| Vehicular | Yes |
| OK for Outdoor Use | Yes |
| Product Condition | New |
