2x2 MiMo 3G/4G/LTE/5G Magnetic Mount Cellular Antenna for Kiosks, ATM & Digital Signage. Dual 35 ft. Cables & SMA Connectors | RBMM-55-SS-35
RBMM-55-SS-35
Shipping calculated at checkout.
2x2 MiMo 3G/4G/LTE/5G Magnetic Mount Cellular Antenna for Kiosks, ATM & Digital Signage. Dual 35 ft. Cables & SMA Connectors | RBMM-55-SS-35
More InfoDocumentsSpecifications Reviews

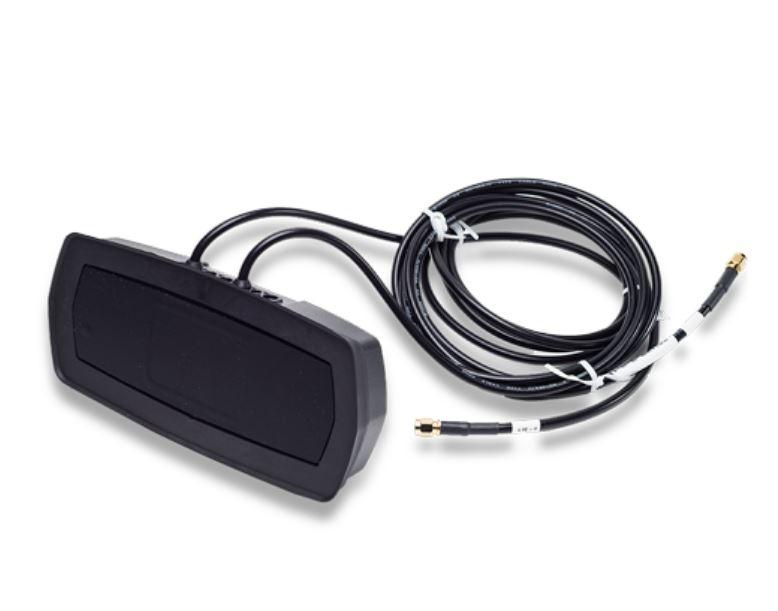

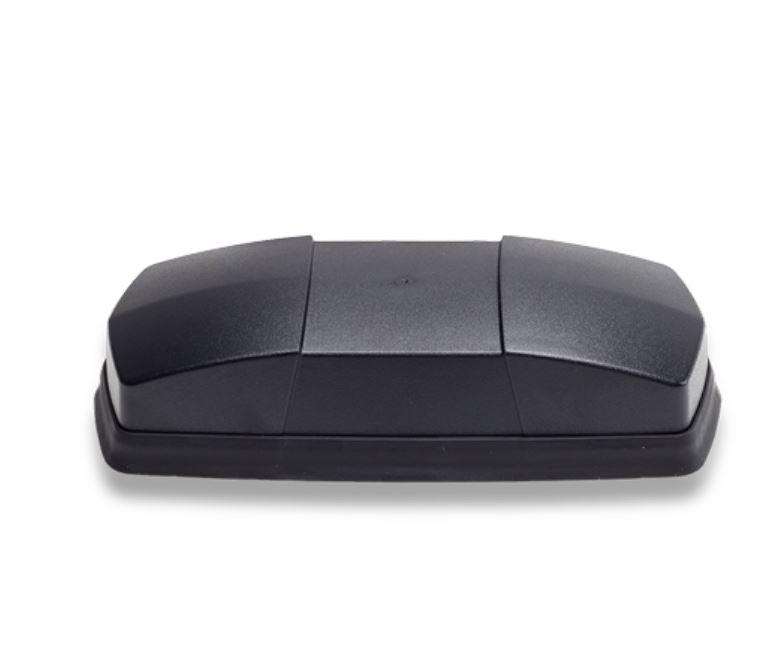

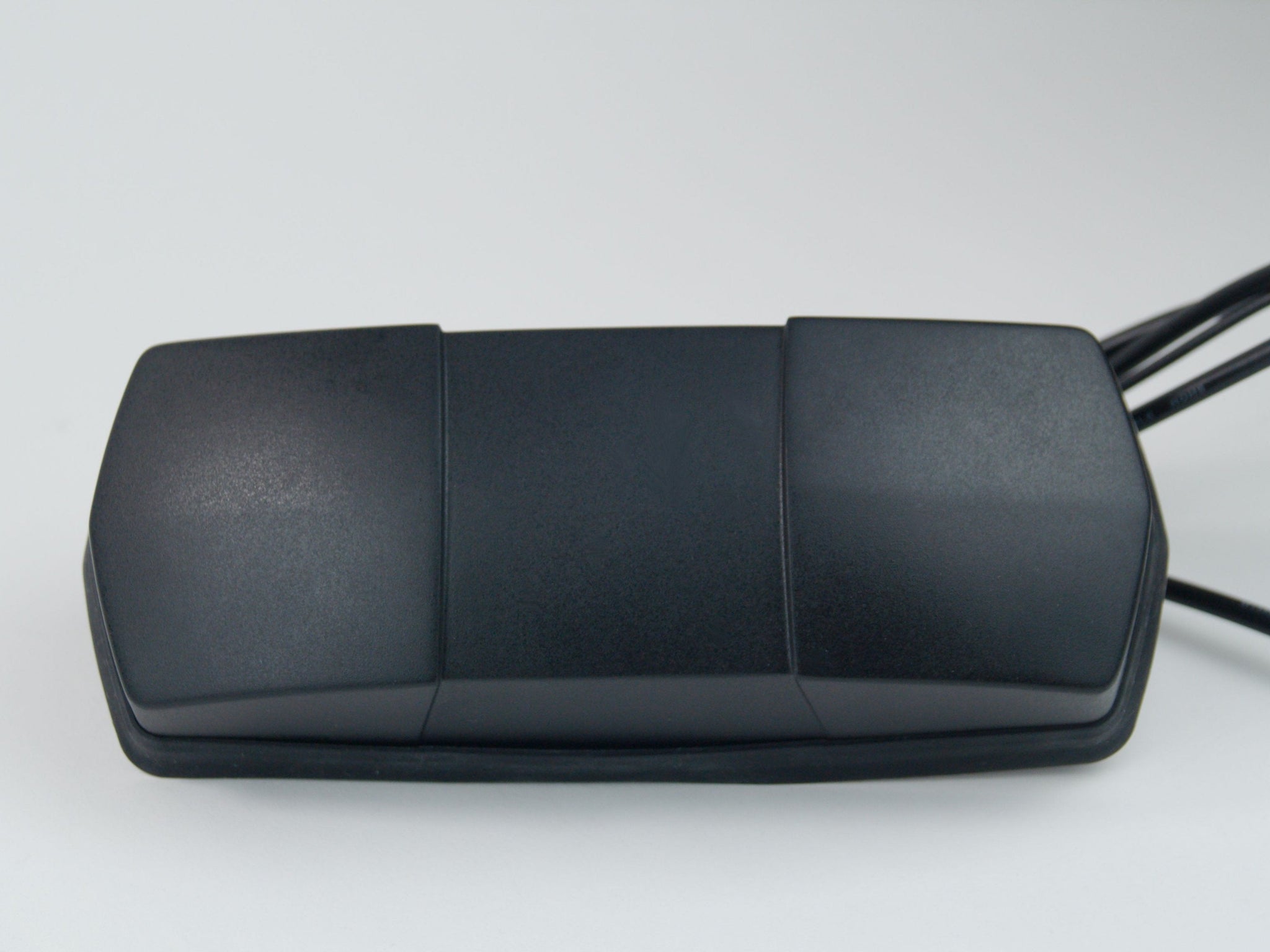

The RFMAX "Brick" antenna # RBMM-55-SS-35 is a compact, ultra-rugged mag-mount antenna designed for M2M machine-to-machine applications like Digital Signage Lottery and ATM machines. The unit measures 7.9 x 3.5 inches, with a height of just 1.8 inches. This antenna was designed to exceed all 3G/4G/LTE/5G specifications from the major North American cellular carriers including AT&T, Verizon, Sprint & T-Mobile. This unit was designed for use with dual 3G/4G/5G or MiMo LTE cellular modem gateways from Cradlepoint, Sierra Wireless, and PepLink. Our "Brick" antenna is easy to install using the high-pull strength magnetic mounting which resists would-be vandals and is IP65 rated for year-round indoor or outdoor use. The antenna includes dual 35 foot long, low loss cables with SMA male connectors, and is also available in PERMANENT mount (see part # RBDM-55-SS-35) Optimized for Cradlepoint IBR200, IBR600, Sierra Wireless RV50, Digi WR11, Digi WR31 etc.
More Information
RFMAX "Brick" Antenna
Size: 7.9 x 3.4 x 1.8 Inches
Same footprint as Antenna Plus, but lower profile
Out-performs all similar antennas including Ventus CDA & CQA
Elements: Dual 5G/ 4G Cellular / MiMo LTE
High Gain at all frequencies for maximum connection speeds
Designed for Indoor or Outdoor Installations (IP65 rated)
Easy to install Magnetic Mounting, Rugged & Vandal Resistant
Approved for use with all major carriers: AT&T, Verizon, Sprint
Optimized for Cradlepoint IBR200, IBR600, Sierra Wireless RV50, Digi WR11, Digi WR31 etc.
Documents
Specifications
| SKU | RBMM55SS35 |
|---|---|
| Manufacturer Part Number | RBMM-55-SS-35 |
| Manufacturer | RFMAX |
| Antenna Category | 4G/LTE/5G (600-6000 MHz) |
| Working Frequency | 600-6000 MHz |
| Gain | 1.5 dBi @ 617-960 MHz |
| Gain 2 | 4.5 dBi @ 1710-2690 MHz |
| Gain 3 | 6.3 dBi @ 5150-5925 MHz |
| Antenna Style | "Brick" Multi-Element Antenna |
| Polarity | Linear |
| Bands | Multi |
| SISO or MIMO | MIMO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 Ohm |
| VSWR: < X: 1 | <2:1 |
| Horizontal/Azimuth Beamwidth | 360 |
| Plenum/Fire Rating | UL-94 |
| No Of Elements | 2 |
| Cable Length - PT195 | 35 Feet |
| Height/Length (inches) | 7.9 |
| Height/Length (mm) | 202 |
| Width (inches) | 3.4 |
| Width (mm) | 88 |
| Thickness/Diameter (inches) | 1.8 |
| Thickness/Diameter (mm) | 45 |
| Weight (lbs) | 2 |
| Material | UV Stable, UL94 Radome |
| Operating Temp (celsius) | -40 to +85 C |
| Mount Style | Magnetic Mount |
| Color | Black |
| Cable Type | LMR195 |
| Number of Cables | 2 |
| Cable Length (inches) | 144 |
| Connector 1 | SMA-Male |
| Connector 2 | SMA-Male |
| IP Rating | IP65 |
| Vehicular | Yes |
| Ground Plane Required | no |
| Product Condition | New |
