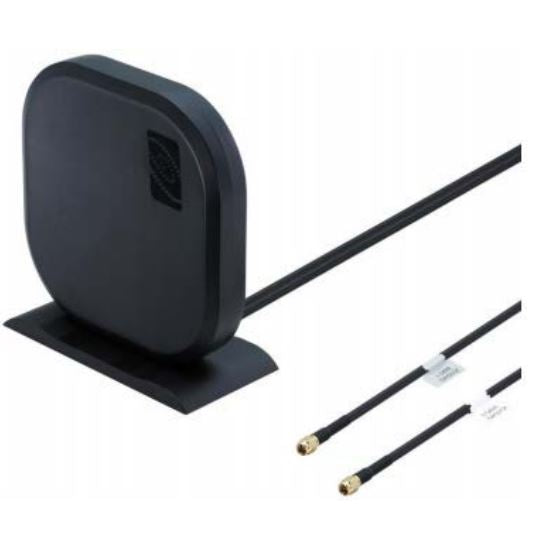

170669-000: Cradlepoint Panel Patch Antenna for MIMO 4G / LTE / 3G / 2G for indoor/Desk application

  • $145.00
    Unit price per

170669-000


6 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
5 $137.75
Lead time for qty above 6:  Ships in 1-2 Weeks

170669-000: Cradlepoint Panel Patch Antenna for MIMO 4G / LTE / 3G / 2G for indoor/Desk application

170669-000: Cradlepoint Panel Patch Antenna for MIMO 4G / LTE / 3G / 2G for indoor/Desk application

More InfoSpecifications Reviews

For use with all AER, ARC, and COR products

Features
• High-gain • Directional
• Pipe mounting hardware included • Installs easily
• Weather resistant
• Wide bandwidth
• 50 Ohms • VSWR: 2.0 max
• About 8” of cable



More Information

For use with all AER, ARC, and COR products



Features:

• High-gain
• Directional
• Installs easily
• Wide bandwidth
• 50 Ohms
• VSWR: 2.0 max
• About 8” of cable
• Best solution for 4G 2x2 Worldwide LTE MIMO applications
• Covers fallback 2G/3G frequencies too (HSPA/UMTS/WCDMA/GSM/GPRS) 698- 960MHz,1710-2170MHz,2490-2690MHz
• High Efficiency Indoor and Outdoor Antenna Waterproof IP67
• Wall Mount or Desktop Mount Dimension: 164mm*164mm*36.5mm • 2* Low Loss 1M CFD-200 Cables - SMA(M)

Disclaimer: The information provided by Cradlepoint is believed to be complete and accurate. However, no responsibility is assumed by Cradlepoint, Inc. for any business or personal losses arising from its use, or for any infringements of patents or other rights of third parties that may result from its use.

How It Works:

The Gemini LTE 4G MIMO 2X2 is a robust external antenna that is fully IP67 waterproof for use with all 2G/3G/4G MIMO cellular routers and Access points worldwide. It includes two embedded high efficiency LTE MIMO antennas. The antenna elements operate at all common and 4G LTE bands worldwide: 698-960MHz, 1710-2170MHz, 2490-2690MHz, which also include the 2G and 3G bands, meaning the antenna can also be used as fallback on 2G or 3G applications. High isolation and low ECC between the two embedded MIMO antennas prevents self-interference. Low loss cables are used to keep efficiency high over long cable lengths up to 5 meters. This unique antenna offers two methods for easy installation, both indoors and outdoors. A bracket on the back of the antenna enables easy wall installation, keeping your work area clean and spacious. The antenna can also be placed on a flat surface using the stand holder for easy and quick installation.

Typical Applications

• HD Real-time Streaming Video over LTE
• Intelligent Transport Systems
• Internet of Things (IoT market) Digital Signage
• HD Broadcast Systems
• Wireless 4G LTE MIMO M2M devices with legacy 3G Functionality


Specifications

SKU 170669000
Manufacturer Part Number 170669-000
Manufacturer Cradlepoint
Antenna Category 3G/4G/LTE (698-2700 MHz)
Antenna Style Panel Antenna
Bands Multi
SISO or MIMO MIMO
OK for Outdoor Use Yes
Vehicular No
Ground Plane Required No
Product Condition New
