170668-000: Cradlepoint Omnidirectional External antenna for 3G 4G LTE Cellular Modems & Gateways.

  • $145.00
    Unit price per

170668-000


9 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
10 $140.00
Lead time for qty above 9:  Ships in 1-2 Weeks

Shipping calculated at checkout.

170668-000: Cradlepoint Omnidirectional External antenna for 3G 4G LTE Cellular Modems & Gateways.

More InfoDocumentsSpecifications Reviews

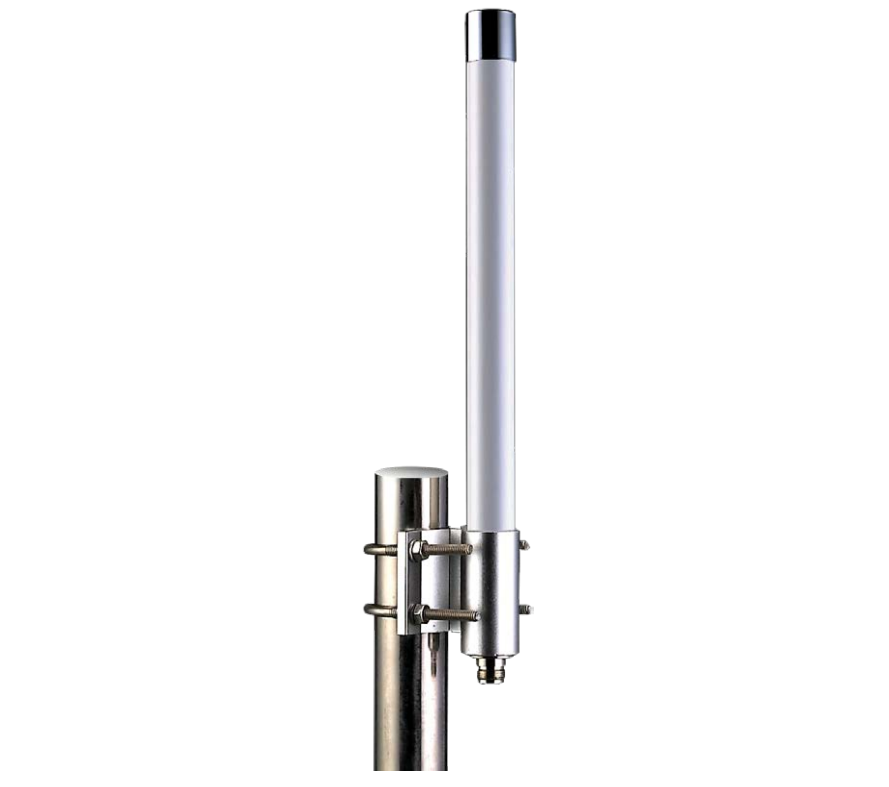

Cradlepoint’s 170668-000 multi band omni directional antenna collects the 3G/4G/LTE (698-2700 MHz) cell tower signal and sends it through the cable to the integrated or embedded Cradlepoint modem or router. When the modem transmits, the signal is transferred directly to the antenna and broadcast back to the cell tower.

  • Comaptible with Cradlepoint : IBR600, IBR900, IBR1100, AER1600, AER2100, AER3100, MBR1400, CBA850, IBR650, etc.
  • Antenna Gain: 3.5 dBi 698-960 MHz / 4.5 dBi 1710-2170 MHz / 3.1 dBi 2496-2690
  • Connector: N Type Female
  • Height: 12.6 inches / 32 cm
  • Includes: Wall Mount Bracket & U-bolt assembly

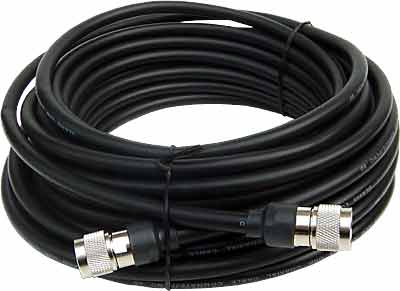

  • DOES NOT INCLUDE CABLE.  See below for suggested cable assemblies.


More Information

Cradlepoint’s multi band omni directional antenna collects the cell tower signal and sends it through the cable to the integrated or embedded Cradlepoint modem and router. When the modem transmits, the signal is transferred directly to the antenna and broadcasted back to the cell tower. For AER1600, AER1650, AER2100, AER3100, AER3150

Features:

  • Part Number: 170668-000
  • Frequency Range: 698-960 MHz / 1710-2170 MHz / 2496-2690 MHz
  • Nominal Impedance: 50 ohms
  • Antenna Gain: 3.5 dBi 698-960 MHz / 4.5 dBi 1710-2170 MHz / 3.1 dBi 2496-2690
  • Radiation: Omni
  • Polarization: Vertical (Linear)
  • Ground Plane: Built-in
  • Connector: N Type Female
  • Internal Material: Copper
  • Height: 12.6 inches / 32 cm
  • Weight: 150 g
  • ROHS Compliant

Package Contains:

  • Multi-Band Omni-Directional Antenna
  • Wall Mount Bracket
  • U-bolt assembly
  • Cable IS NOT included - purchase separately.






Documents


Specifications

SKU 170668000
Manufacturer Part Number 170668-000
Manufacturer Cradlepoint
Antenna Category 4G/LTE (698-2700 MHz)
Working Frequency 698–960 MHz
Gain 1.44 - 3.5 dBi
Working Frequency 2 1710–2170 MHz
Gain 2 2.64 - 5.57 dBi
Working Frequency 3 2490-2700 MHz
Gain 3 3.06 dBi
Antenna Style Omnidirectional Base Station Antenna
Polarity Vertical
Bands Multi
SISO or MIMO SISO
Directional or Omni Omnidirectional
Impedance 50 Ohm
Max Input Power (W) 150 Watts
Horizontal/Azimuth Beamwidth 360 degrees
Vertical/Elevation Beamwidth 59 degrees @ 698-960 MHz & 37 degrees @ 1710-2170 MHz

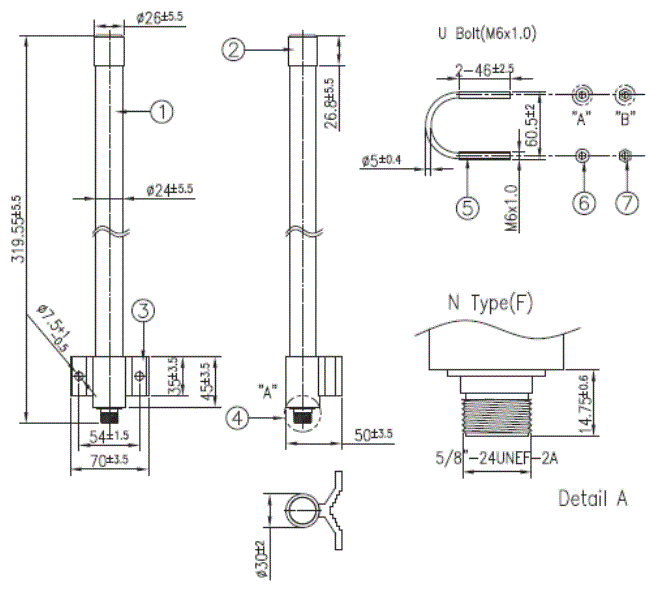

Height/Length (inches) 12.6 inches
Height/Length (mm) 320 mm
Thickness/Diameter (inches) 1.02 inches
Thickness/Diameter (mm) 26 mm
Weight (lbs) 0.5 Lbs.
Weight (grams) 150 g
Material Fiberglass
Operating Temp (celsius) -40 to +85 C
Mount Style Pole / Mast Mount
Color White
Number of Cables 0
Connector 1 N-Female
Includes Bracket Included. Cable IS NOT included.
IP Rating IP65
OK for Outdoor Use Yes
Ground Plane Required No
Product Condition New
