170654-000: Cradlepoint 5-in-1 GPS-GLONASS, Two Cellular (3G/4G/LTE) & Two WiFi 2.4/5 GHz Screw-mount Antenna with 3M Cables

170654-000
3 Can ship immediately
Lead time for qty above 3:  Ships in 1-2 Weeks
Shipping calculated at checkout.
170654-000: Cradlepoint 5-in-1 GPS-GLONASS, Two Cellular (3G/4G/LTE) & Two WiFi 2.4/5 GHz Screw-mount Antenna with 3M Cables
170654-000: Cradlepoint 5-in-1 GPS-GLONASS, Two Cellular (3G/4G/LTE) & Two WiFi 2.4/5 GHz Screw-mount Antenna with 3M Cables

170654-000: Cradlepoint 5-in-1 GPS-GLONASS, Two Cellular (3G/4G/LTE) & Two WiFi 2.4/5 GHz Screw-mount Antenna with 3M Cables

More InfoSpecifications Reviews

Want to upgrade to 4G/LTE and 5G and save money? Try the *NEW* 5-in-1 RBDM-G55WW-17-SSSRR-B

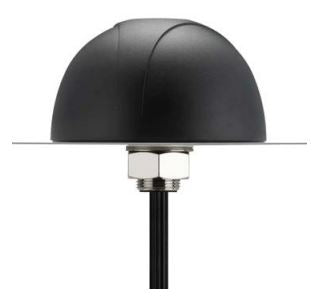

The 170654-000 5-in-1 GPS-GLONASS, two cellular (3G/4G/LTE) and two WiFi 2.4/5 GHz screw-mount antenna with 3M cables is an omni-directional heavy-duty, fully IP67 waterproof external M2M antenna for use in telematics, transportation and remote monitoring applications.

More Information

The 5-in-1 GPS-GLONASS, two cellular (3G/4G/LTE) and two WiFi 2.4/5 GHz screw-mount antenna with 3M cables is an omni-directional heavy-duty, fully IP67 waterproof external M2M antenna for use in telematics, transportation and remote monitoring applications. This unique antenna delivers powerful MIMO antenna technology for cellular/LTE and WiFi 802.11n and emerging 802.11ac, plus GPS/GLONASS for next generation multiple wireless technology systems, such as telematics. The GPS/GLONASS antenna has a Front End SAW Filter.

We Also Recommend

4G/5G, 5-in-1 Antenna for Mobile Cellular Routers with 17 ft. Cables (Band 71, CBRS, WiFi6) RBDM-G55WW-17-SSSRR-B
In Stock
RBDM-G55WW-17-SSSRR-B
4G/5G, 5-in-1 Antenna for Mobile Cellular Routers with 17 ft. Cables (Band 71, CBRS, WiFi6) RBDM-G55WW-17-SSSRR-B
View Details
5G & 4G/LTE Swivel Blade Dipole Antenna. High Efficiency for AT&T, Verizon, T-Mobile & Sprint Includes Band 71 & CBRS, RDA-4G/5G-1-SSM
In Stock
RDA-4G/5G-1-SSM
5G & 4G/LTE Swivel Blade Dipole Antenna. High Efficiency for AT&T, Verizon, T-Mobile & Sprint Includes Band 71 & CBRS, RDA-4G/5G-1-SSM
View Details
3-in-1 Roof Mount Sharkfin Antenna For Cradlepoint & Sierra Wireless In-Vehicle Routers. GPS+Cellular+WiFi | RSF-DB-G4W-SSS
In Stock
RSF-DB-G4W-SSS
3-in-1 Roof Mount Sharkfin Antenna For Cradlepoint & Sierra Wireless In-Vehicle Routers. GPS+Cellular+WiFi | RSF-DB-G4W-SSS
View Details

Specifications

SKU 170654000
Manufacturer Part Number 170654-000
Manufacturer Cradlepoint
Antenna Category Multi-Band (Cellular, WiFi, and/or GPS)
Working Frequency 698-960 MHz
Gain 2.4 dBi
Working Frequency 2 1710-2170 MHz
Gain 2 2.5 dBi
Working Frequency 3 2300-2700 MHz
Gain 3 4.5 dBi
Working Frequency 4 2900-3500 MHz
Gain 4 5.85 dBi
Antenna Style Multi Element/Band Antenna
Polarity Linear
Bands Multi
SISO or MIMO SISO
Directional or Omni Omnidirectional
Impedance 50 Ohm
Max Input Power (W) 50 W
VSWR: < X: 1 2
Height/Length (inches) 3.4
Height/Length (mm) 85.7
Thickness/Diameter (inches) 5.7
Thickness/Diameter (mm) 145.6
Operating Temp (celsius) -40°C to 85°C
Mount Style Screw Mount
Color Black
Cable Type RG-174
Number of Cables 5
Cable Length (inches) 118
Cable Length (mm) 3000
Connector 1 SMA-Male
Connector 2 RP SMA-Male
Connector 3 SMA-Male
IP Rating IP67
OK for Outdoor Use Yes
Vehicular Yes
Ground Plane Required No
Product Condition New
