HD3-915-3C-BLK-60: Mobile Mark Low Profile Heavy Duty ISM Antenna, 3 dBi, 5 ft LL-195 and SMA-plug, 902-928 MHz
HD3-915-3C-BLK-60
Shipping calculated at checkout.
HD3-915-3C-BLK-60: Mobile Mark Low Profile Heavy Duty ISM Antenna, 3 dBi, 5 ft LL-195 and SMA-plug, 902-928 MHz
More InfoDocumentsSpecifications Reviews
This HD3-915 antenna operates in the frequency range of 902-928 MHz, and the HD3-868 antenna operates in the frequency range of 868-870 MHz; both with a peak gain of 3 dBi.
More Information

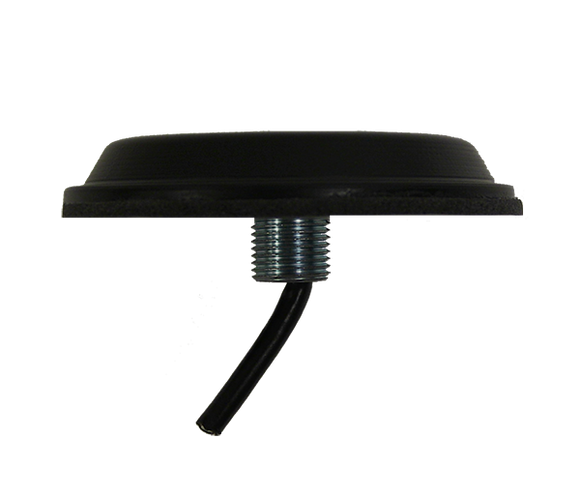

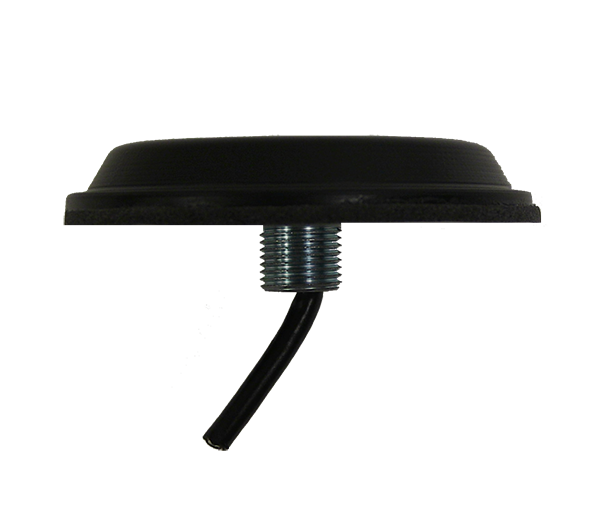

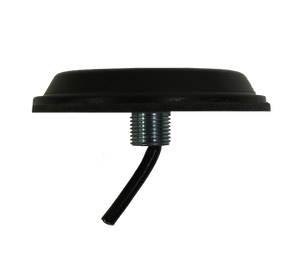

These antennas are low profile and are ideal for providing ISM M2M capability in environments where the antenna is regularly subjected to physical wear and tear. Measuring only .50” (1.27 cm) high and 3.52” (8.94 cm) in diameter, the HD3-915 is a compact antenna that can easily be mounted to almost any surface.
Documents
Specifications
| SKU | HD39153CBLK60 |
|---|---|
| Manufacturer Part Number | HD3-915-3C-BLK-60 |
| Manufacturer | Mobile Mark |
| Antenna Category | RFID (902-928 MHz) |
| Impedance | 50 ohm |
| VSWR: < X: 1 | < 2:1 |
| Axial Ratio | 3dB |
| Height/Length (inches) | 0.5 |
| Width (inches) | 3.52 |
| Operating Temp (celsius) | -40°C to +80°C |
| Color | Black |
| IP Rating | IP67 |
| Product Condition | New |
