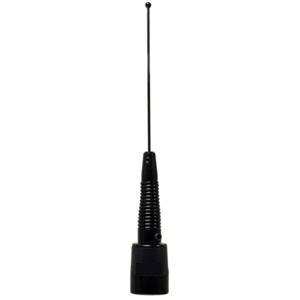

BMWV1365S: PCTel MAXRAD VHF- Mobile Wide-band Antenna - VHF 136-174 MHz - Unity

  • $68.76
    Unit price per

BMWV1365S


4 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
10 $66.30
25 $64.02
100 $61.88
250 $58.94
500 $55.42
1000 $53.04
2500 $51.57
Lead time for qty above 4:  Ships in 8-10 Weeks

Shipping calculated at checkout.

BMWV1365S: PCTel MAXRAD VHF- Mobile Wide-band Antenna - VHF 136-174 MHz - Unity

More InfoDocumentsSpecifications Reviews

These antennas address equipment inter-operability challenges by providing superior bandwidth coverage without sacrificing antenna performance. Their no tune wideband design eliminates the need to install multiple antennas to cover various VHF or UHF frequency bands, thus reducing installation costs and complexity and improving overall coverage of the desired frequencies.

This Antenna Requires a NMO Mount. Please click here to find all Thru-Hole NMO mounts or Magnetic NMO Mounts we carry.



More Information

These antennas address equipment inter-operability challenges by providing superior bandwidth coverage without sacrificing antenna performance. Their no tune wideband design eliminates the need to install multiple antennas to cover various VHF or UHF frequency bands, thus reducing installation costs and complexity and improving overall coverage of the desired frequencies.

Features

  • Rugged stainless steel spring and wideband tube assembly for maximum durability and shock absorption
  • Thick-wall housing, double-sealed for maximum weatherproofing
  • Mates with all 1-1/8” -18 thread mounts, including 3/4” mounts
  • MWU4002S operates with or without a ground plane without compromising VSWR performance.

Documents


Specifications

SKU BMWV1365S
Manufacturer Part Number BMWV1365S
Manufacturer PCTEL
Antenna Category VHF (132-220 MHz)
Working Frequency 136-174 MHz
Gain 2.15 dBi
Antenna Style Base Coil Antennas
Bands Single
Max Input Power (W) 160 W
Height/Length (inches) 21
Color Black
Ground Plane Required No
Product Condition New
