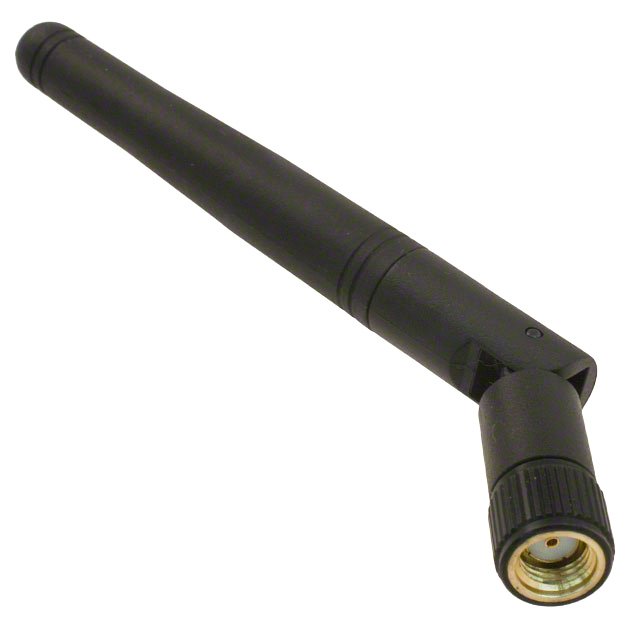

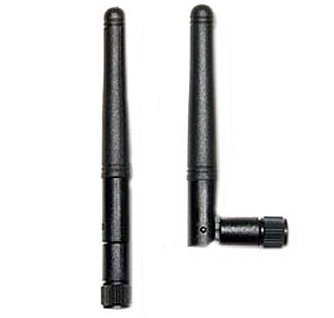

MAF94051 / WTS2450-RPSMA Antena omnidireccional de doble banda de 3 pulgadas para Wifi con codo - 2,4-2,5 y 4,9-5,8 GHz
MAF94051
MAF94051 / WTS2450-RPSMA Antena omnidireccional de doble banda de 3 pulgadas para Wifi con codo - 2,4-2,5 y 4,9-5,8 GHz
More InfoSpecifications ReviewsLaird / Centurion MAF94051 / WTS2450-RPSMA Antena Omni de doble banda de 3 pulgadas para Wifi con codo - 2,4-2,5 y 4,9-5,8 GHz y conector RP SMA.
More Information
Today’s work and lifestyles require us to communicate anytime, anywhere whether on the move or sitting still. Bluetooth and 802.11 standards make wireless connections to computer networks and other devices possible, while at the same time enabling freedom of movement.
Laird Technologies’ practical and rugged external wireless device antennas are designed to fit into the portable devices used in office, industrial and home environments. The antennas feature flexible elements and many are ó wave coaxial dipole design for reduced ground dependence and improved performance.
FEATURES
• Conformance to European RoHS Directive 2002/95/EC (with SMRP)
• Omnidirectional patterns at all frequencies with increased gain in upper bands for optimal coverage
MARKETS
• Covers 2.4 to 2.5 GHz for 802.11b, and 4.9 to 6 GHz for 802.11a and all U.S., European, and Japanese WLAN applications
Specifications
SKU | MAF94051 |
---|---|
Manufacturer Part Number | MAF94051 |
Manufacturer | Laird |
Antenna Category | WiFi (2.4 & 5.0 GHz) |
Working Frequency | 2.4 - 2.5 GHz |
Gain | 2 dBi |
Working Frequency 2 | 4.9 to 5.875 GHz |
Gain 2 | 3.6 dBi max |
Antenna Style | Blade/Stubby Antennas |
Polarity | Vertical |
Bands | Multi |
Directional or Omni | Omnidirectional |
Impedance | 50 Ohms |
VSWR: < X: 1 | 2:01 |
Height/Length (mm) | 95.9 mm |
Width (inches) | 3.78 inches |
Thickness/Diameter (inches) | 0.366 inches |
Thickness/Diameter (mm) | 9.3 mm |
Weight (lbs) | 0.25 |
Mount Style | RP SMA Connector with 90 degree elbow |
Connector Type | Connector - Bottom |
Cable Type | LMR195 |
Connector 1 | RP SMA-Male |
Product Condition | New |
