W5001: Pulse External Outdoor Antenna 2.4 - 2.5 GHz and Fixed Right Angle RP-SMA Male Connector

  • $7.97
    Unit price per

W5001


0 in stock. Subject to factory lead time
Volume Price Breaks
Quantity: Unit Price:
10 $7.15
25 $6.83
100 $5.91
250 $5.69
500 $5.20
1000 $4.41
2500 $4.20
5000 $4.04
Lead time:  Ships in 10-12 Weeks

Shipping calculated at checkout.
W5001: Pulse External Outdoor Antenna 2.4 - 2.5 GHz and Fixed Right Angle RP-SMA Male Connector

W5001: Pulse External Outdoor Antenna 2.4 - 2.5 GHz and Fixed Right Angle RP-SMA Male Connector

More InfoDocumentsSpecifications Reviews

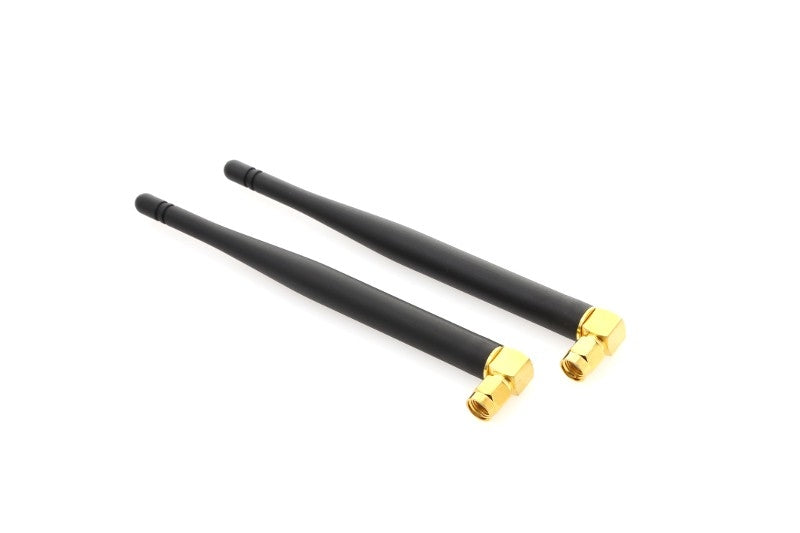

This whip-like product features an Ingress Protection of IP65 and a fixed right angle RP-SMA Male connector. It was tested and determined to be RoHS Compliant and UV protected! It has a gain value of 1.5 dBi and operates on the frequency range of 2.4-2.5 GHz, so it's great for your Wi-Fi / WLAN needs!

***This product is subjected to a minimum order quantity of 1000 pcs.***



More Information

Features

  • Ingress Protection IP65]
  • UV Protection
  • RoHS Compliant
  • Fixed Right Angle RP-SMA Male



Applications

  • Zigbee 802.15, ISM 2.4 GHz
  • Metering, Security, M2M Applications




Documents


Specifications

SKU W5001
Manufacturer Part Number W5001
Manufacturer Pulse
Antenna Category WiFi (2.4 & 5.0 GHz)
Working Frequency 2.4-2.5 GHz
Gain 1.5 dBi
Antenna Style Omnidirectional Stick Antenna
Bands Single
SISO or MIMO SISO
Directional or Omni Omnidirectional
Impedance 50 ohm
Height/Length (mm) 130.09±1
Width (mm) 9.23±0.3
Thickness/Diameter (mm) 10±0.2
Operating Temp (celsius) -40 to +85°C
Mount Style Permanent
Color Black
Connector Type RP-SMA
Connector 1 RP SMA-Male
IP Rating IP65
OK for Outdoor Use Yes
Ground Plane Required No
Product Condition New
