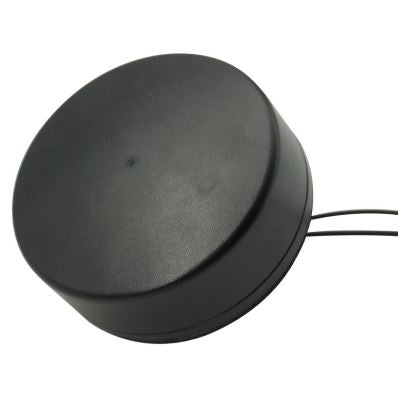

W4165SMA5: Outdoor Multi Band Antenna 824-960/1710-2170 MHz 3G/GPRS/GSM + GNSS IP67 with Direct Mount and SMA Male connector

  • $64.98
    Unit price per

W4165SMA5


7 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
10 $61.89
25 $57.33
100 $54.91
250 $52.33
500 $51.65
Lead time for qty above 7:  Ships in 10-12 Weeks

W4165SMA5: Outdoor Multi Band Antenna 824-960/1710-2170 MHz 3G/GPRS/GSM + GNSS IP67 with Direct Mount and SMA Male connector

More InfoDocumentsSpecifications Reviews

Outdoor Multi Band Antenna 824-960/1710-2170 MHz 3G/GPRS/GSM + GNSS IP67 with Direct Mount and SMA Male connector


More Information

Features:

• 3G antenna:

• 824-960/1710-2170MHz

• Active GNSS antenna:

• Beidou, GPS, Galileo, Glonass

• LNA Gain 30dB

• Pre and post LNA filtering

• RoHS Compliant

• Diameter 100mm

• IP67

Applications:

• Vehicular use

• Utility boxes

• Smart metering

• Navigation, Fleet Management, Tracking


Documents


Specifications

SKU W4165SMA5
Manufacturer Part Number W4165SMA5
Manufacturer Pulse
Antenna Category Multi-Band (Cellular, WiFi, and/or GPS)
Polarity Right Hand Circular
SISO or MIMO SISO
OK for Outdoor Use Yes
Vehicular No
Ground Plane Required No
Product Condition New
