W4165RPSMA10: Outdoor Multi Band Antenna 824-960/1710-2170 MHz 3G/GPRS/GSM + GNSS IP67 with Direct Mount and RP-SMA Male connector

W4165RPSMA10
0 in stock. Subject to factory lead time
Volume Price Breaks
Quantity: Unit Price:
10 $66.38
25 $61.51
100 $58.91
250 $56.14
500 $55.39
Lead time:  Ships in 14-16 Weeks
Shipping calculated at checkout.
W4165RPSMA10: Outdoor Multi Band Antenna 824-960/1710-2170 MHz 3G/GPRS/GSM + GNSS IP67 with Direct Mount and RP-SMA Male connector
W4165RPSMA10: Outdoor Multi Band Antenna 824-960/1710-2170 MHz 3G/GPRS/GSM + GNSS IP67 with Direct Mount and RP-SMA Male connector

W4165RPSMA10: Outdoor Multi Band Antenna 824-960/1710-2170 MHz 3G/GPRS/GSM + GNSS IP67 with Direct Mount and RP-SMA Male connector

More InfoSpecifications Reviews

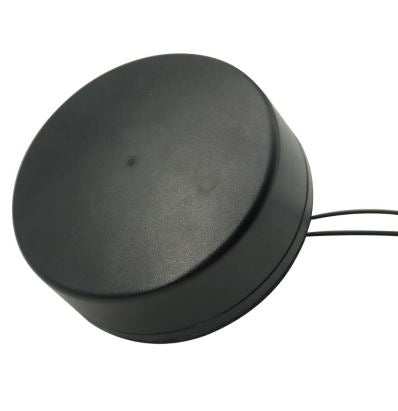

Outdoor Multi Band Antenna 824-960/1710-2170 MHz 3G/GPRS/GSM + GNSS IP67 with Direct Mount and RP-SMA Male connector

More Information

Features:

• 3G antenna:

• 824-960/1710-2170MHz

• Active GNSS antenna:

• Beidou, GPS, Galileo, Glonass

• LNA Gain 30dB

• Pre and post LNA filtering

• RoHS Compliant

• Diameter 100mm

• IP67

Applications:

• Vehicular use

• Utility boxes

• Smart metering

• Navigation, Fleet Management, Tracking

Specifications

SKU W4165RPSMA10
Manufacturer Part Number W4165RPSMA10
Manufacturer Pulse
Antenna Category Multi-Band (Cellular, WiFi, and/or GPS)
Polarity Right Hand Circular
SISO or MIMO SISO
Product Condition New
