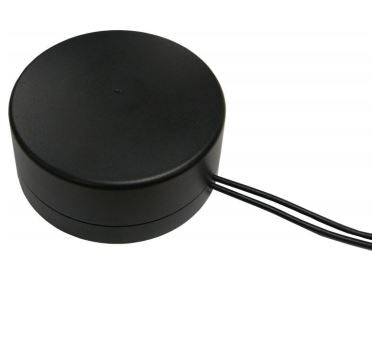

W4165MMRPSMA10: Outdoor Multi Band Antenna 824-960, 1710-2170 MHz 3G/GPRS/GSM + GNSS IP67 with Magnetic Mount and RP-SMA Male connector

  • $74.95
    Unit price per

W4165MMRPSMA10


0 in stock. Subject to factory lead time
Volume Price Breaks
Quantity: Unit Price:
10 $70.41
25 $67.35
100 $64.54
250 $61.55
Lead time:  Ships in 10-12 Weeks

W4165MMRPSMA10: Outdoor Multi Band Antenna 824-960, 1710-2170 MHz 3G/GPRS/GSM + GNSS IP67 with Magnetic Mount and RP-SMA Male connector

More InfoDocumentsSpecifications Reviews

Outdoor Multi Band Antenna 824-960, 1710-2170 MHz 3G/GPRS/GSM + GNSS IP67 with Magnetic Mount and RP-SMA Male connector


More Information

Features:

• 3G, GPRS, GSM

• 824-960, 1710-2170MHz

• GNSS

• GPS, Galileo Glonass, Beidou

• 1560-1608MHz

• 30dB LNA

• Magnetic mount onto metal surfaces

• IP67

Applications:

• Vehicular use

• Fleet management

• Tracking, navigation

• For easy installation and removal, no need to drill any holes


Documents


Specifications

SKU W4165MMRPSMA10
Manufacturer Part Number W4165MMRPSMA10
Manufacturer Pulse
Antenna Category Multi-Band (Cellular, WiFi, and/or GPS)
Polarity Right Hand Circular
SISO or MIMO SISO
OK for Outdoor Use Yes
Vehicular No
Ground Plane Required No
Product Condition New
